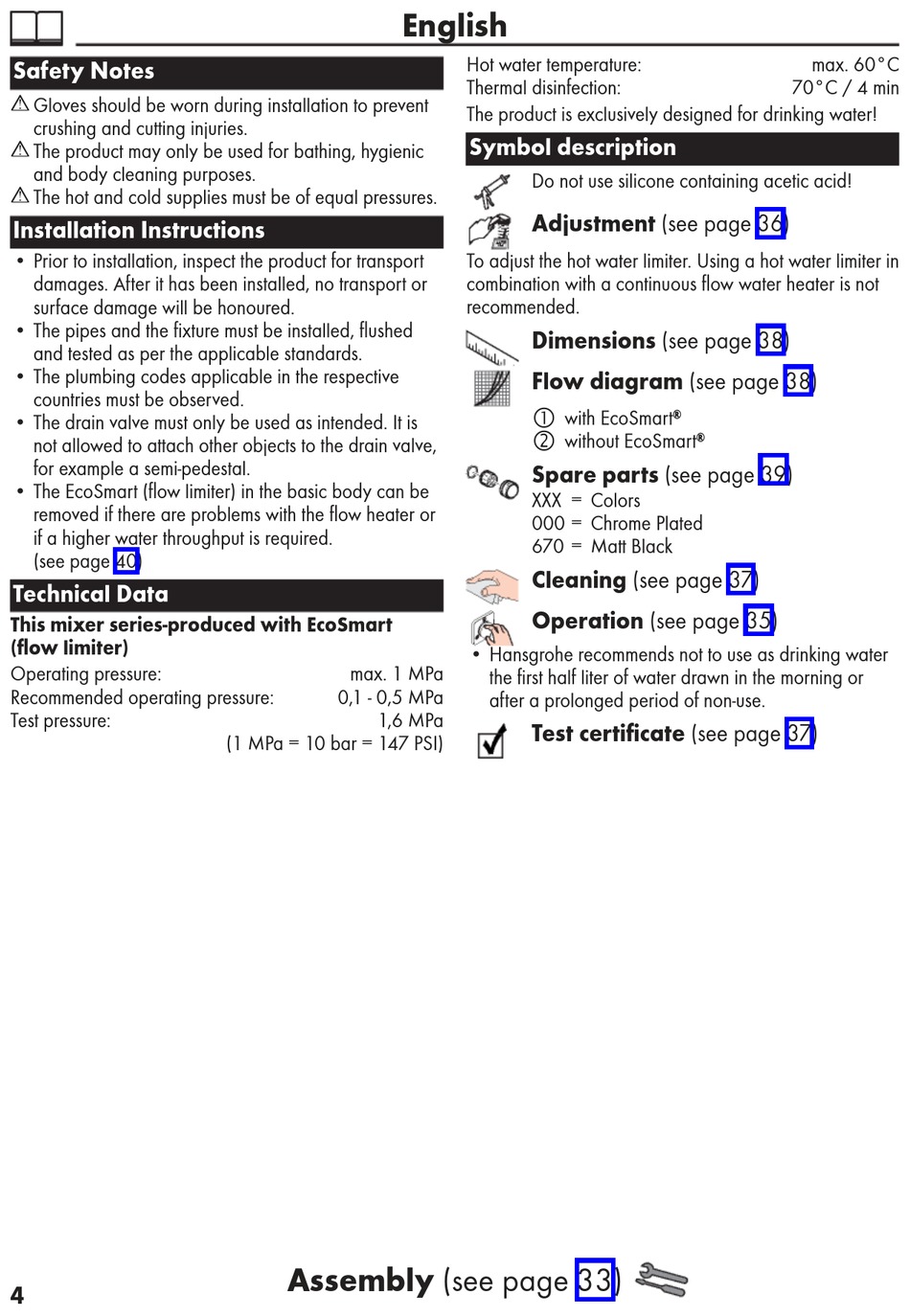

HANSGROHE Vernis Blend 71576 Serie Montageanleitung Seite 4

Safety Notes
Gloves should be worn during installation to prevent
crushing and cutting injuries.
The product may only be used for bathing, hygienic
and body cleaning purposes.
The hot and cold supplies must be of equal pressures.
Installation Instructions
" Prior to installation, inspect the product for transport
damages. After it has been installed, no transport or
surface damage will be honoured.
" The pipes and the oxture must be installed, nushed
and tested as per the applicable standards.
" The plumbing codes applicable in the respective
countries must be observed.
" The drain valve must only be used as intended. It is
not allowed to attach other objects to the drain valve,
for example a semi-pedestal.
" The EcoSmart (now limiter) in the basic body can be
removed if there are problems with the now heater or
if a higher water throughput is required.
(see page 40)
Technical Data
This mixer series-produced with EcoSmart
(now limiter)
Operating pressure:
Recommended operating pressure:
Test pressure:
4
max. 1 MPa
0,1 - 0,5 MPa
1,6 MPa
(1 MPa = 10 bar = 147 PSI)
Assembly (see page 33)
English
Hot water temperature:
Thermal disinfection:
The product is exclusively designed for drinking water!
Symbol description
Do not use silicone containing acetic acid!
Adjustment (see page 36)
To adjust the hot water limiter. Using a hot water limiter in
combination with a continuous now water heater is not
recommended.
Dimensions (see page 38)
Flow diagram (see page 38)
ñ
with EcoSmart
ò
without EcoSmart
Spare parts (see page 39)
XXX = Colors
000 = Chrome Plated
670 = Matt Black
Cleaning (see page 37)
Operation (see page 35)
" Hansgrohe recommends not to use as drinking water
the orst half liter of water drawn in the morning or
after a prolonged period of non-use.
Test certiocate (see page 37)
max. 60°C
70°C / 4 min
®
®
