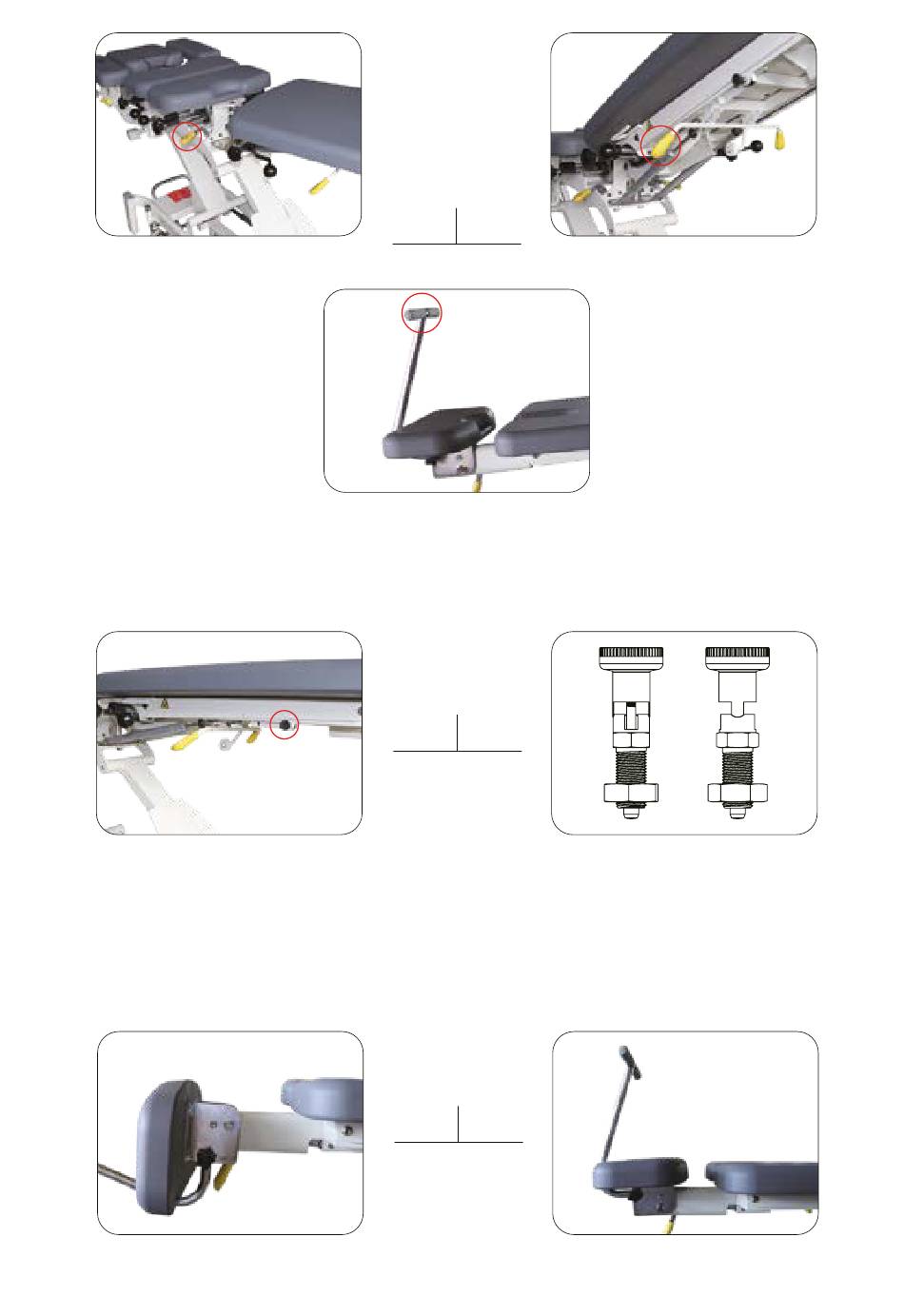

8. Realization of the lumbar traction.
For horizontal movement (traction), unlock the knob on the right side of the frame. After finishing work in this
segment, lock the knob according to the diagram.
9. Footrest adjustment.
The footrest adjustment system allows to obtain a position convenient for the patient through the possibility
of two-plane movement.
The movement of the footrest is carried out after unlocking the protection on the left side, additionally
pressing the yellow lever unlocks the possibility of movement of the entire footrest frame.
Fig. 10 Fig. 12
Fig. 11
Fig. 13 Fig. 14
Fig. 15 Fig. 16
