Smart Modul V2 Top für ProGrid

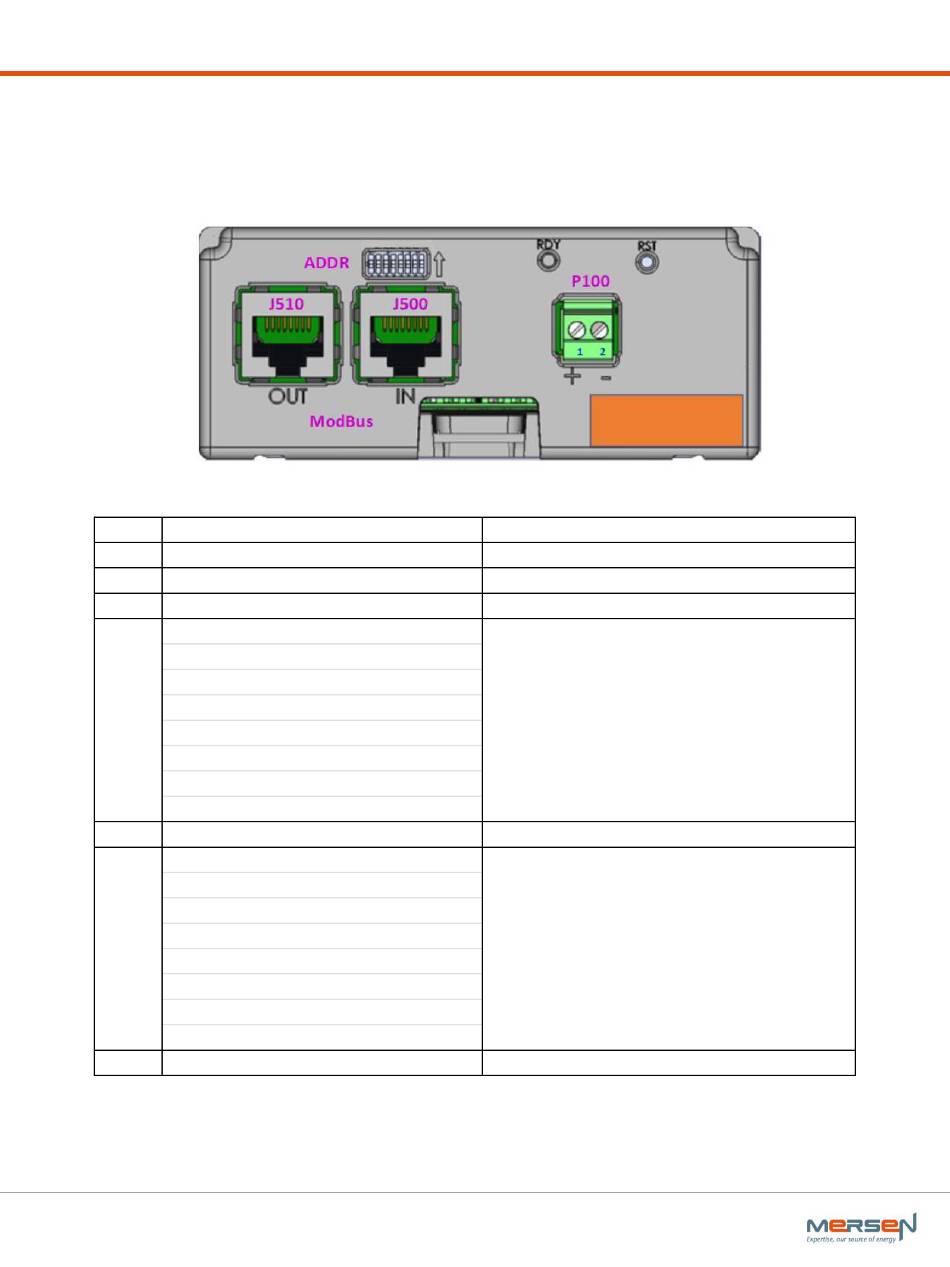

6.2 Anschlüsse an der Vorderseite
Terminal
P100 + 24VDC power supply input
P100 -
24V GND (0V)
J510
Connection daisy chain
1 = Not connected
2 = GND (or 0V)
3 = Not connected
4 = D1 (A)
5 = D0 (B)
6 = 24V
7 = 24V
8 = GND
J500
Connection daisy chain
1 = Not connected
2 = GND (or 0V)
3 = Not connected
4 = D1 (A)
5 = D0 (B)
6 = 24V
7 = 24V
8 = GND
ADDR
Dip switch 12345678 position
EP.MERSEN.COM
Signal
V2-20250410 - Benutzerhandbuch - Smart Modul V2 TOP
BENUTZERHANDBUCH
Cable
0,75 to 1,5 mm2
0,75 to 1,5 mm2
RJ45
RJ45
/
23
