Features
The Scoot Control is part of our range of input devices. It is to be mounted on the back of
the power chair and is a steering device with 2 handles (similar to a compact bicycle steer).
The Scoot Control is available in different versions.
• Fully proportional handlebar with 2 rubber handles and 2 configurable thumb throttles
at either side
• Built in a compact housing, with a 3.5 mm stereo jack to connect an external actuator
keypad. Keypad should be compatible with the Curtiss-Wright CJSM2 resistor values.
• Full access to wheelchair functions such as Lights, Horn and Speed settings
• Battery and speed display via LEDs
• On-board configuration possible
Operation

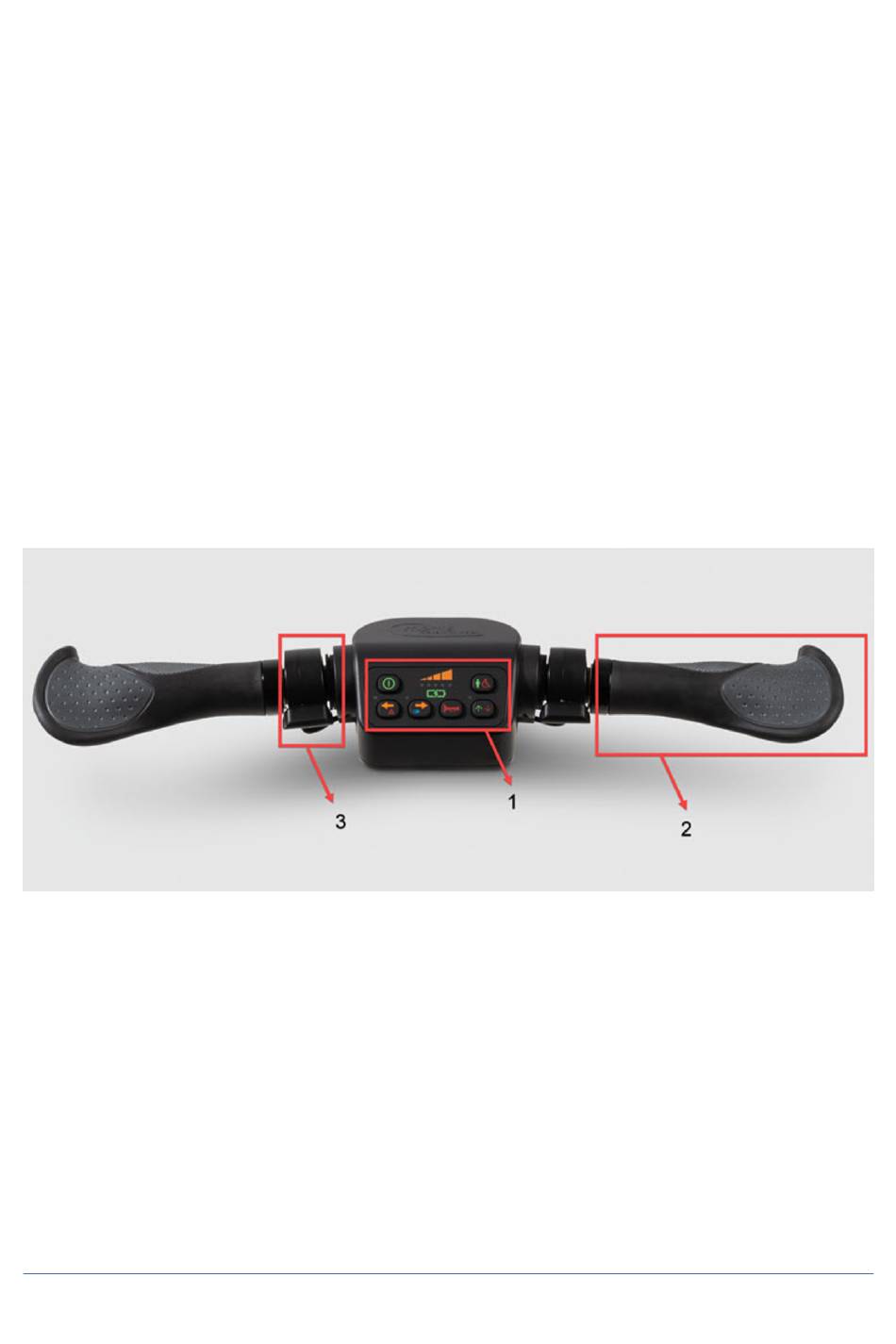

The Scoot Control consists of the following parts:
1 Control panel: control the Scoot Control
2 Handlebar: rubber handle at either side to steer the wheelchair
3 Left and right throttle: to move the power chair forward and/or backward
