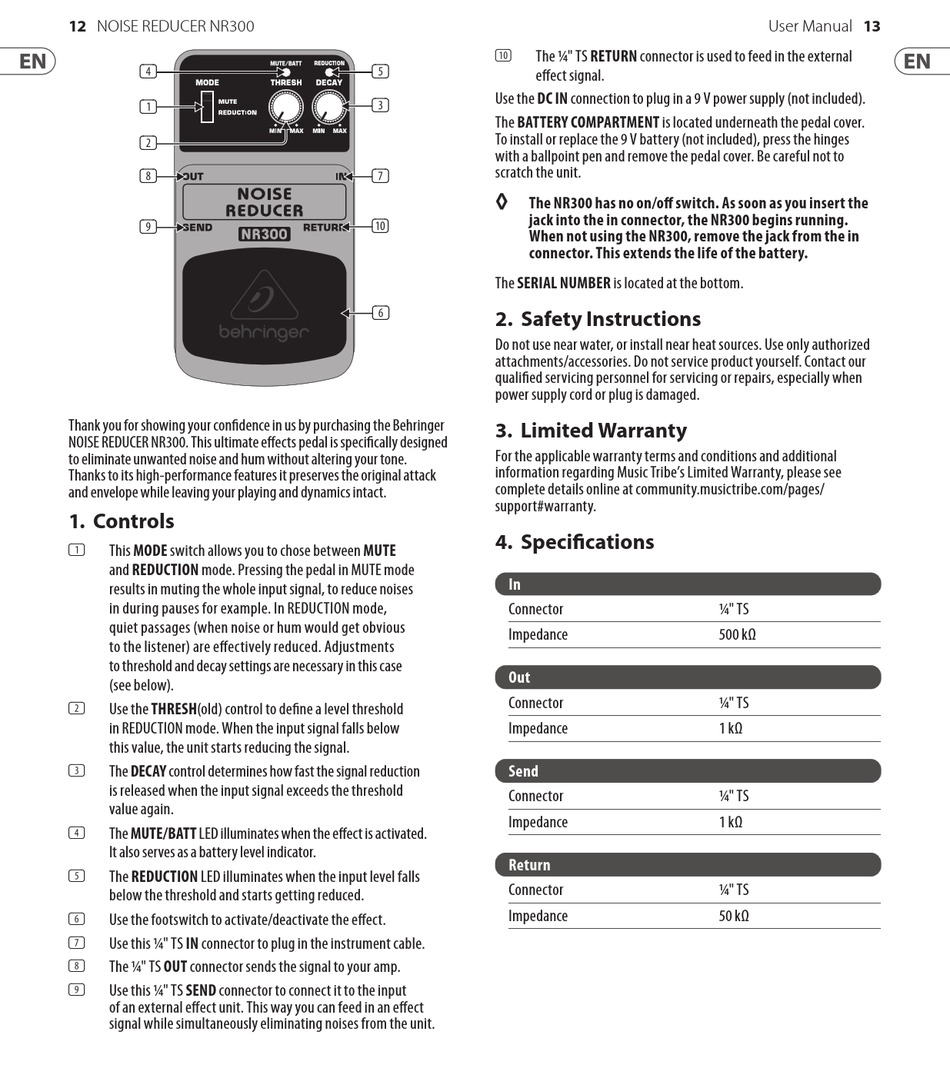

12 NOISE REDUCER NR300
(4)
(1)
(2)
(8)
(9)
Thank you for showing your confidence in us by purchasing the Behringer
NOISE REDUCER NR300. This ultimate effects pedal is specifically designed
to eliminate unwanted noise and hum without altering your tone.
Thanks to its high-performance features it preserves the original attack
and envelope while leaving your playing and dynamics intact.
1. Controls
This MODE switch allows you to chose between MUTE
(1)
and REDUCTION mode. Pressing the pedal in MUTE mode
results in muting the whole input signal, to reduce noises
in during pauses for example. In REDUCTION mode,
quiet passages (when noise or hum would get obvious
to the listener) are effectively reduced. Adjustments
to threshold and decay settings are necessary in this case
(see below).
Use the THRESH(old) control to define a level threshold
(2)
in REDUCTION mode. When the input signal falls below
this value, the unit starts reducing the signal.
The DECAY control determines how fast the signal reduction
(3)
is released when the input signal exceeds the threshold
value again.
The MUTE/BATT LED illuminates when the effect is activated.
(4)
It also serves as a battery level indicator.
The REDUCTION LED illuminates when the input level falls
(5)
below the threshold and starts getting reduced.
Use the footswitch to activate/deactivate the effect.
(6)
Use this 1/4" TS IN connector to plug in the instrument cable.
(7)
The 1/4" TS OUT connector sends the signal to your amp.
(8)
Use this 1/4" TS SEND connector to connect it to the input
(9)
of an external effect unit. This way you can feed in an effect
signal while simultaneously eliminating noises from the unit.
The 1/4" TS RETURN connector is used to feed in the external
(10)
(5)
effect signal.
Use the DC IN connection to plug in a 9 V power supply (not included).
(3)
The BATTERY COMPARTMENT is located underneath the pedal cover.
To install or replace the 9 V battery (not included), press the hinges
with a ballpoint pen and remove the pedal cover. Be careful not to
scratch the unit.
(7)
◊ ◊
The NR300 has no on/off switch. As soon as you insert the
jack into the in connector, the NR300 begins running.
(10)
When not using the NR300, remove the jack from the in
connector. This extends the life of the battery.
The SERIAL NUMBER is located at the bottom.
(6)
2. Safety Instructions
Do not use near water, or install near heat sources. Use only authorized
attachments/accessories. Do not service product yourself. Contact our
qualified servicing personnel for servicing or repairs, especially when
power supply cord or plug is damaged.
3. Limited Warranty
For the applicable warranty terms and conditions and additional
information regarding Music Tribe's Limited Warranty, please see
complete details online at community.musictribe.com/pages/
support#warranty.
4. Specifications
In
Connector
Impedance
Out
Connector
Impedance
Send
Connector
Impedance
Return
Connector
Impedance
13
User Manual
1/4" TS
500 kΩ
1/4" TS
1 kΩ
1/4" TS
1 kΩ
1/4" TS
50 kΩ
