COMPRESSOR/LIMITER CL9
Classic Compressor/Limiter Effects Pedal
Thank you for showing your confidence in us by purchasing the
Behringer COMPRESSOR/LIMITER CL9. This ultimate effects pedal
is specifically designed to achieve super-smooth compression and
extended sustain. Thanks to its high-performance features you
can compress loud and boost low signals without degrading the
original sound.
A compressor limits the dynamic range of a signal. This means that
signal peaks will be attenuated and the level differences between
loudest and softest playing are reduced. This results in a more
powerful tone.

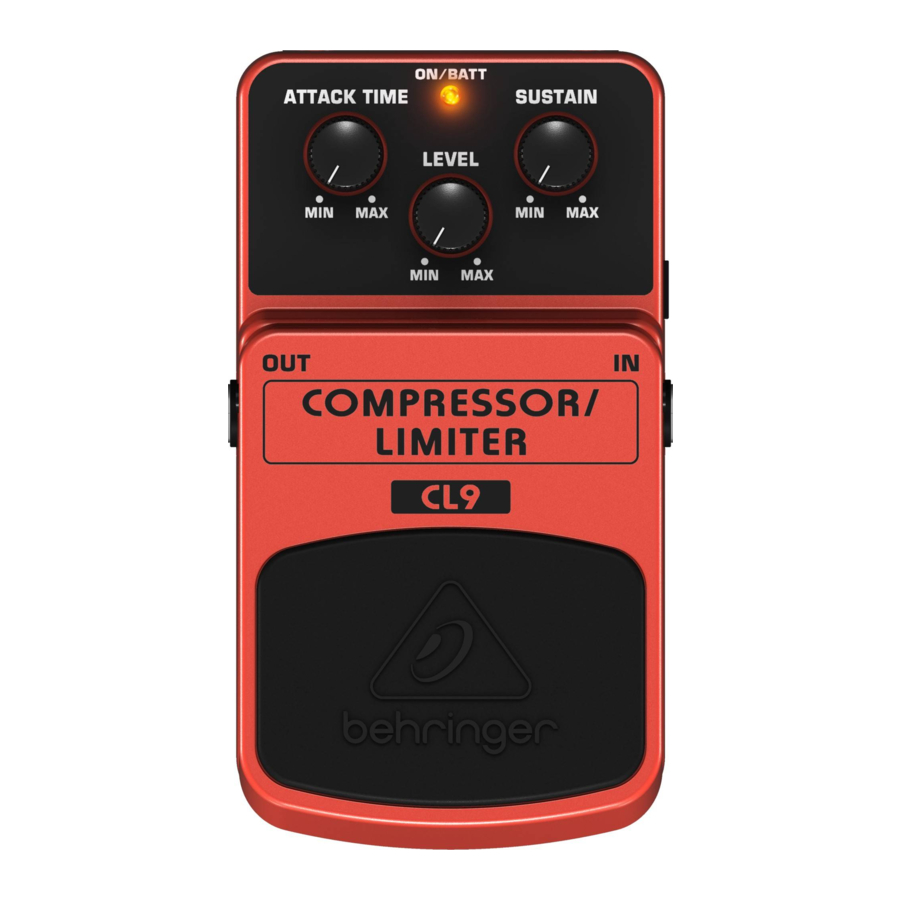

1. Controls
The ATTACK TIME control determines how fast the compressor
(1)
responds to input signal peaks.
The LEVEL control adjusts the output level.
(2)
The SUSTAIN control determines the amount of compression.
(3)
The ON/BATT LED illuminates when the effect is activated. It also
(4)
serves as a battery level indicator.
Use the footswitch to activate/deactivate the effect.
(5)
Use this 1/4" TS IN connector to plug in the instrument cable.
(6)
The 1/4" TS OUT connector sends the signal to your amp.
(7)
Use the DC IN connection to plug in a 9 V power supply (not included).
The BATTERY COMPARTMENT is located underneath the pedal cover.
To install or replace the 9 V battery (not included), press the hinges with
a ballpoint pen and remove the pedal cover. Be careful not to scratch
the unit.
V 5.0
(1)
(2)
(7)
(4)
(3)
(6)
(5)
