be powered from a Dranetz instrument the sensor can
be operated from battery or an external supply.
External supply
The current sensor is packaged with 2 x AA MN 1500
1.5 V batteries installed and will operate on battery
power typically for approximately 2000 hours of
continuous operation.
For longer monitoring periods it is possible to power one
or up to four DRANFLEX XLB sensors from an external
3 VDC (1 A) supply. The DC input jack on the side of the
sensor enclosure accommodates a 2.1 x 5.5 mm barrel
connector using the center pin as the negative terminal
and the outside barrel connection as the positive
terminal.
The unit is to be externally powered by a Listed Limited
Power supply only.

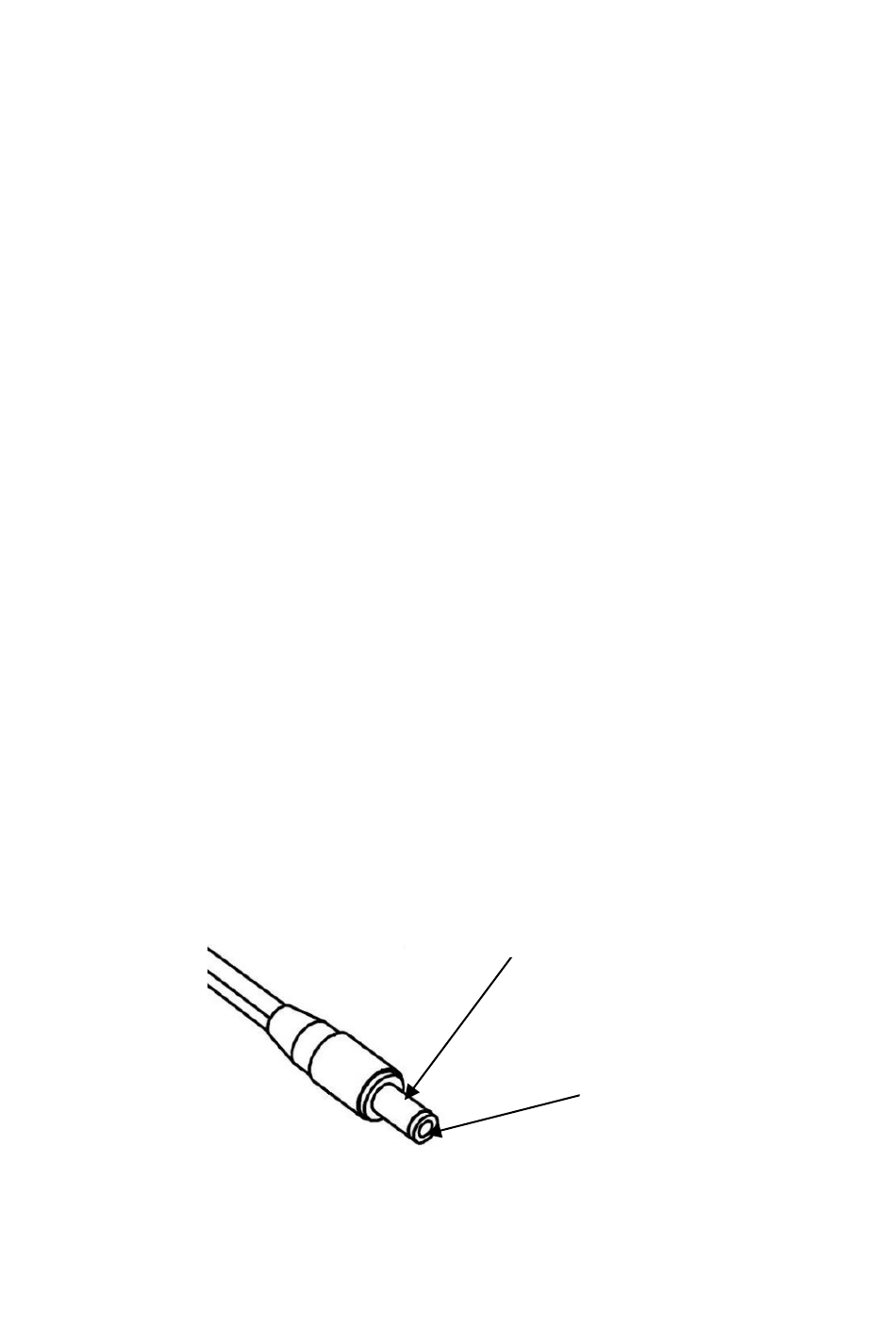

(+ terminal)
(- terminal)
