DRANFLEX 3003XLB / 6003XLB are three phase
current sensors consisting of a three Rogowski sensors
and a three channel integrator.
These
optional
measurements in the range of 0.5 Amps to 3000 A full
scale or 0.5 Amps to 6000 A full scale for use with
Dranetz instruments.
• 30 / 300 / 3000 A
DRANFLEX 3003XLB/24
DRANFLEX 3003XLB/36
DRANFLEX 3003XLB/48
• 60 / 600 / 6000 A
DRANFLEX 6003XLB/24
DRANFLEX 6003XLB/36
DRANFLEX 6003XLB/48

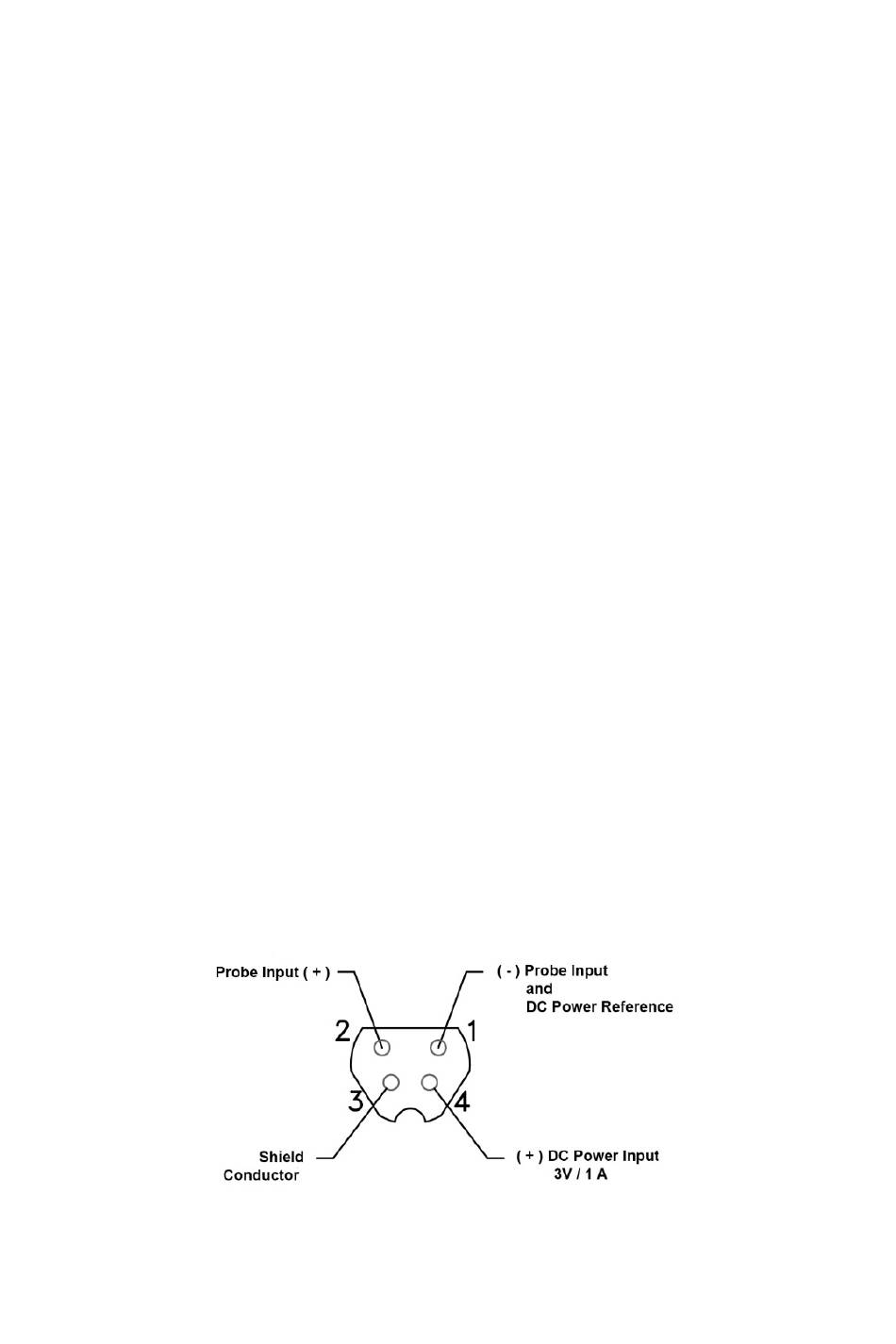

Output Connector
The DRANFLEX 3003XLB / 6003XLB utilize a
Hypertronics type D01 connector for connection to
Dranetz instruments with the following pinouts provided
for reference.
current
sensors
allow
current
24 inch length
36 inch length
48 inch length
24 inch length
36 inch length
48 inch length
