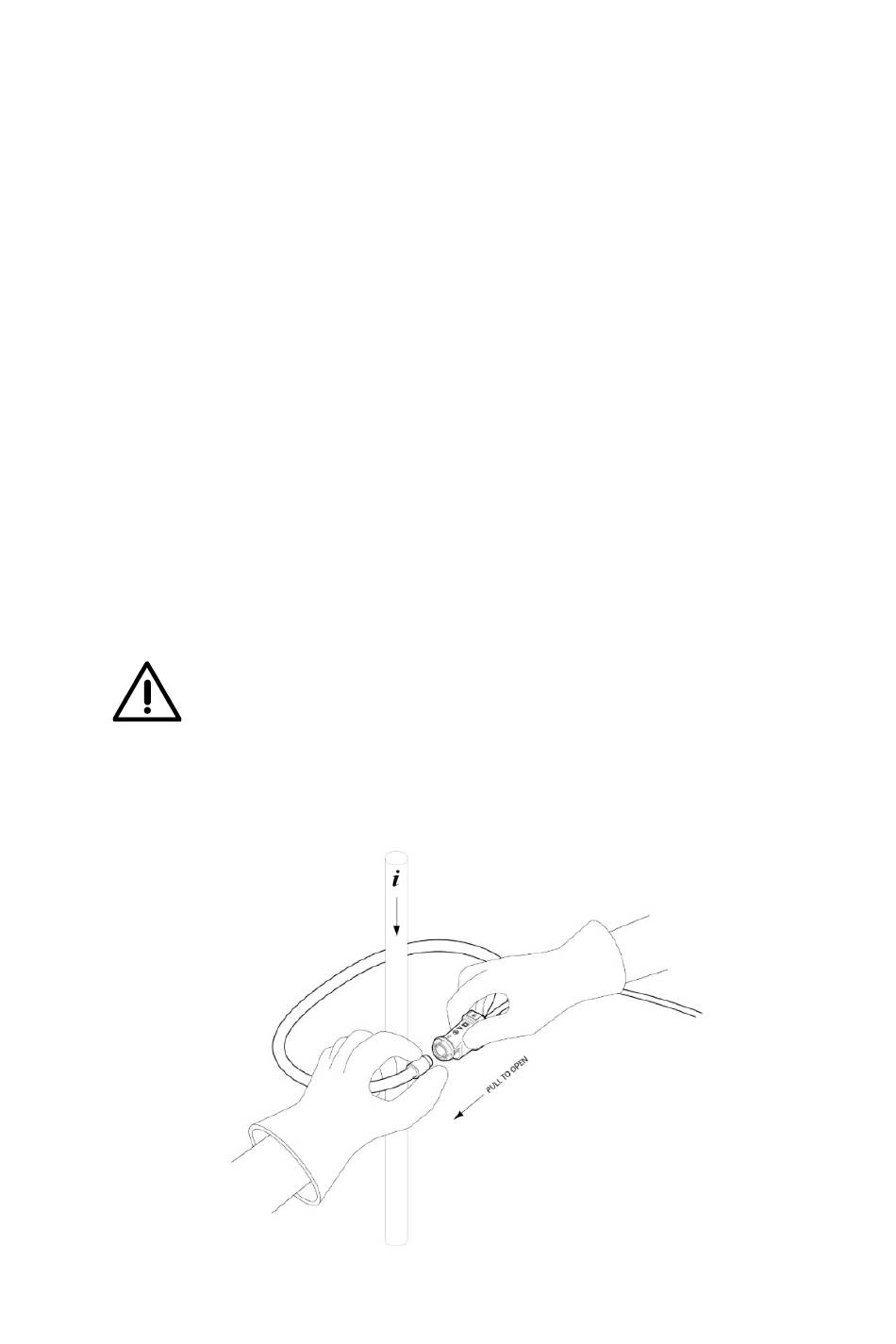

With all power "OFF" connect the sensor end to your
instrument and then connect the sensor around the
conductors that you will be monitoring. Make sure
that the flexible sensor and the connector at the unit
are fully secured and mated properly.
1. Turn power "ON" to the unit and measurement
circuits.
2. Select the desired range on the current sensor.
3. Refer to the scale factor tables and enter the scale
factor for the appropriate channel for the applicable
instrument you are using.
4. Refer to the Dranetz User's Guide for additional
information concerning installation, operation, and
connections of your instrument.
DANGER
Do not use the flexible current sensor to measure on
bare conductors unless wearing protective clothing
suitable for high voltage work.
Seite 14 von 54
