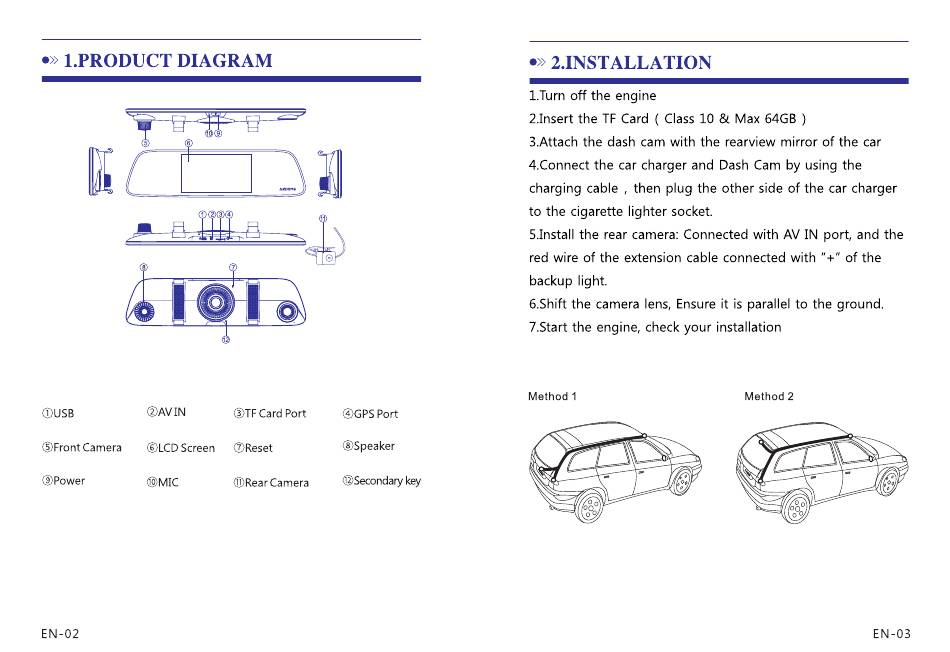

I.PRODUCT DIAGRAM
OUSB
@Front Camera @LCD Screen
@Power
OMIC
EN-02
card Port @GPS port
@Speaker
(j)Reset
@Secondary key
@RearCamera
• 2.1NSTALLATION
1.Turn off the engine
2.1nsert the TF Card ( Class 10 & Max 64GB )
3.Attach the dash cam with the
4.Connect the car charger and Dash Cam by using the
charging cable , then plug the other side of the car charger
to the cigarette lighter socket.
5.1nstallthe rear camera: Connected with AV IN port, and the
red wire of the extension cable
backup light.
6.Shift the camera lens, Ensure it is parallel to the ground.
7.Start the engine, check your installation
Method 1
rearview mirror of the car
connected with "+" of the
Method 2
00
EN-03
