Inhaltszusammenfassung für Asus M3A78-T

  • Seite 1 M3A78-T...
  • Seite 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

  • Seite 3: Inhaltsverzeichnis

    Contents Contents ...................... iii Notices ......................vii Safety information ..................viii About this guide ..................ix M3A78-T specifications summary ............. xi Chapter 1: Product introduction Welcome! ..................1-1 Package contents ................. 1-1 Special features ................1-2 1.3.1 Product highlights ............1-2 1.3.2...
  • Seite 4 BIOS setup Managing and updating your BIOS ..........4-1 4.1.1 Creating a bootable floppy disk ........4-2 4.1.2 ASUS EZ Flash 2 utility ........... 4-3 4.1.3 AFUDOS utility ..............4-4 4.1.4 ASUS Update utility ............4-6 BIOS setup program ..............4-9 4.2.1...
  • Seite 5 Boot Device Priority ............4-35 4.6.2 Boot Settings Configuration .......... 4-36 4.6.3 Security ................. 4-37 Tools menu ................. 4-39 4.7.1 ASUS EZ Flash 2 ............4-39 4.7.2 Express Gate ..............4-40 4.7.3 ASUS O.C. Profile ............4-41 Exit menu ..................4-42 Chapter 5: Software support Installing an operating system ...........
  • Seite 6 ASUS MyLogo2™ ............5-9 5.3.2 Cool ‘n’ Quiet!™ Technology ..........5-11 5.3.3 Audio configurations ............. 5-14 5.3.4 ASUS PC Probe II ............5-22 5.3.5 ASUS AI Suite ............... 5-28 5.3.6 ASUS AI Gear 2 ............5-30 5.3.7 ASUS AI Nap ..............5-31 5.3.8...

  • Seite 7: Notices

    Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation.

  • Seite 8: Safety Information

    Safety information Electrical safety • To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. • When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.

  • Seite 9: About This Guide

    Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS website provides updated information on ASUS hardware and software products. Refer to the ASUS contact information. Optional documentation Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer.

  • Seite 10: Conventions Used In This Guide

    Conventions used in this guide To make sure that you perform certain tasks properly, take note of the following symbols used throughout this manual. DANGER/WARNING: Information to prevent injury to yourself when trying to complete a task. CAUTION: Information to prevent damage to the components when trying to complete a task.

  • Seite 11: M3A78-T Specifications Summary

    M3A78-T specifications summary Socket AM2/AM2+ for AMD Phenom™ FX / ® ® Phenom™ / Athlon™ / Sempron™ processors AMD Cool ‘n’ Quiet™ Technology Supports CPU TDP up to 140W Chipset 790GX + SB750 ® System bus Up to 5200 MT/s; HyperTransport™ 3.0 interface...
  • Seite 12 - Web browser, file downloading and uploading* - Further free features upgradable *File downloading and uploading through USB devices only. ASUS Quiet Thermal Solution: - ASUS 4+1 Phase Power Design - ASUS AI Gear 2 - ASUS AI Nap - ASUS Q-Fan 2 ASUS Crystal Sound:...
  • Seite 13 1 x 4-pin ATX 12V Power connector 1 x System Panel (Q-Connector) BIOS features 8 Mb Flash ROM, AMI BIOS, PnP, DMI 2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, ASUS EZ Flash 2 Support DVD contents Drivers Express Gate ASUS PC Probe II...

  • Seite 15: Chapter 1: Product Introduction

    This chapter describes the motherboard features and the new technologies it supports. Chapter 1: Product introduction...

  • Seite 16: Chapter Summary

    Chapter summary Welcome! ..................1-1 Package contents ................. 1-1 Special features ................1-2 ASUS M3A78-T...

  • Seite 17: Welcome

    ® The motherboard delivers a host of new features and latest technologies, making it another standout in the long line of ASUS quality motherboards! Before you start installing the motherboard, and hardware devices on it, check the items in your package with the list below.

  • Seite 18: Special Features

    Green ASUS This motherboard and its packaging comply with the European Union’s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products/packaging to safeguard consumers’ health while minimizing the impact on the environment.
  • Seite 19 It allows RAID 0, 1, 0+1 and 5 configurations. IEEE 1394a support The IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals, and other PC portable devices. ASUS M3A78-T...

  • Seite 20: Asus Unique Features

    ASUS unique features ASUS Express Gate Just 5 seconds to boot up, ASUS Express Gate allows you to instantly surf the Internet without entering Windows. You can now enjoy Skype, IM, YouTube, webmail and Internet file downloads and sharing whenever and wherever you want! •...

  • Seite 21: Asus Ez Diy

    ASUS EZ DIY ASUS EZ DIY feature collection provides you easy ways to install computer components, update the BIOS or back up your favorite settings. ASUS Q-Shield The specially designed ASUS Q-Shield does without the usual “fingers”—...

  • Seite 22: Asus Mylogo

    ASUS EZ Flash 2 ASUS EZ Flash 2 is a user-friendly BIOS update utility. Simply press the predefined hotkey to launch the utility and update the BIOS without entering the OS. Update your BIOS easily without preparing a bootable diskette or using an OS-based flash utility.

  • Seite 23: Chapter 2: Hardware Information

    This chapter lists the hardware setup procedures that you have to perform when installing system components. It includes description of the jumpers and connectors on the motherboard. Chapter 2: Hardware information...
  • Seite 24 Chapter summary Before you proceed ..............2-1 Motherboard overview ..............2-2 Central Processing Unit (CPU) ........... 2-6 System memory ................. 2-11 Expansion slots ................2-14 Jumper ..................2-18 Connectors ................. 2-19 ASUS M3A78-T...

  • Seite 25: Before You Proceed

    ON, in sleep mode, or in soft-off mode. This is a reminder that you should shut down the system and unplug the power cable before removing or plugging in any motherboard component. The illustration below shows the location of the onboard LED. ASUS M3A78-T...

  • Seite 26: Motherboard Overview

    Motherboard overview Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Make sure to unplug the power cord before installing or removing the motherboard. Failure to do so can cause you physical injury and damage motherboard components.

  • Seite 27: Motherboard Layout

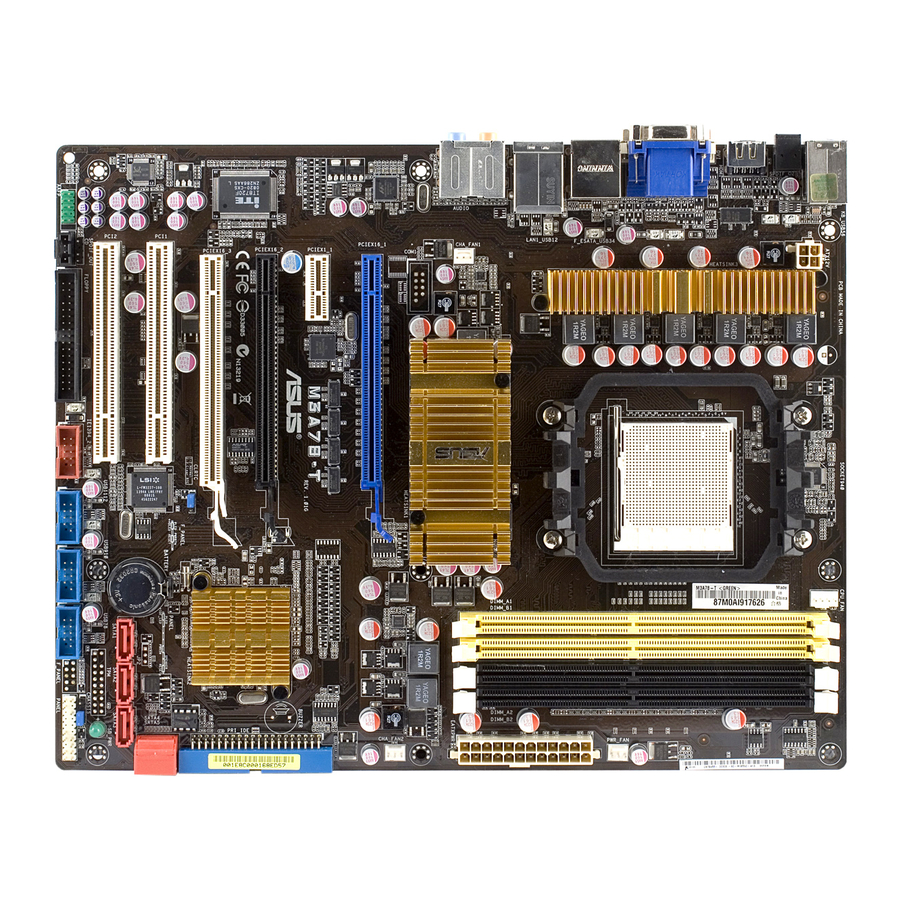

    2.2.3 Motherboard layout Refer to 2.7 Connectors for more information about rear panel connectors and internal connectors. ASUS M3A78-T...

  • Seite 28: Layout Contents

    2.2.4 Layout contents Slots Page DDR2 DIMM slots 2-11 2-16 PCI slots PCI Express x1 slot 2-16 2-16 PCI Express 2.0 x16 slot (blue) Universal PCI Express x16 slots (black and white) 2-16 Jumper Page 2-18 Clear RTC RAM (3-pin CLRTC) Rear panel connectors Page PS/2 keyboard / mouse combo port...
  • Seite 29 ATX power connectors (24-pin EATXPWR; 4-pin ATX12V) 2-31 Front panel audio connector (10-1 pin AAFP) 2-32 Optical drive audio connector (4-pin CD) Digital audio connector (4-1 pin SPDIF_OUT) 2-32 System panel connector (20-8-pin PANEL) 2-33 ASUS Q-Connector (system panel) 2-34 ASUS M3A78-T...

  • Seite 30: Central Processing Unit (Cpu)

    Central Processing Unit (CPU) The motherboard comes with an AM2+/AM2 socket designed for AMD AM2+/AM2 socket designed for AMD socket designed for AMD Socket ® AM2+ Phenom™ FX / Phenom / Athlon™ / Sempron™ processors or for Socket Phenom™ FX / Phenom / Athlon™ / Sempron™ processors or for Socket AM2 Athlon series / Sempron processors.
  • Seite 31 When the CPU is in place, push down the socket lever to secure the CPU. The lever clicks on the side tab to indicate that it is locked. Install a CPU heatsink and fan following the instructions that came with the heatsink package. ASUS M3A78-T...

  • Seite 32: Installing The Heatsink And Fan

    2.3.2 Installing the heatsink and fan The AMD Phenom™ FX / Phenom / Athlon™/ Sempron™ processor requires a Phenom™ FX / Phenom / Athlon™/ Sempron™ processor requires a processor requires a ® specially designed heatsink and fan assembly to ensure optimum thermal condition and performance.
  • Seite 33 Push down the retention bracket lock on the retention mechanism to secure the heatsink and fan to the module base. ASUS M3A78-T...
  • Seite 34 When the fan and heatsink assembly is in place, connect the CPU fan cable to the connector on the motherboard labeled CPU_FAN. • Do not forget to connect the CPU fan connector! Hardware monitoring errors can occur if you fail to plug this connector. •...

  • Seite 35: System Memory

    The motherboard comes with four Double Data Rate 2 (DDR2) Dual Inline Memory Modules (DIMM) sockets. The figure illustrates the location of the DDR2 DIMM sockets: Channel Sockets Channel A DIMM_A1 and DIMM_A2 Channel B DIMM_B1 and DIMM_B2 ASUS M3A78-T 2-11...

  • Seite 36: Memory Configurations

    2.4.2 Memory configurations You may install 512 MB, 1 GB, and 2 GB unbuffered ECC and non-ECC DDR2 DIMMs into the DIMM sockets. Recommended Memory Configurations Sockets Mode DIMM_A1 DIMM_A2 DIMM_B1 DIMM_B2 (yellow) (black) (yellow) (black) – – Populated – Single-Channel Populated –...

  • Seite 37: Installing A Dimm

    DIMM. Support the DIMM lightly with your fingers when pressing the retaining clips. The DIMM might DIMM notch get damaged when it flips out with extra force. Remove the DIMM from the socket. ASUS M3A78-T 2-13...

  • Seite 38: Expansion Slots

    Expansion slots In the future, you may need to install expansion cards. The following sub-sections describe the slots and the expansion cards that they support. Make sure to unplug the power cord before adding or removing expansion cards. Failure to do so may cause you physical injury and damage motherboard components.

  • Seite 39: Interrupt Assignments

    – – shared – – – – USB 2.0 controller – – – shared – – – – HD audio shared – – – – – – – Onboard SATA – – – – shared – – ASUS M3A78-T 2-15...

  • Seite 40: Pci Slots

    2.5.4 PCI slots The PCI slots support cards such as a LAN card, SCSI card, USB card, and other cards that comply with PCI specifications. Refer to the figure below for the location of the slots. 2.5.5 PCI Express x1 slot This motherboard supports PCI Express x1 network cards, SCSI cards and other cards that comply with the PCI Express specifications.
  • Seite 41 If you install two VGA cards, we recommend that you plug the rear chassis fan cable to the motherboard connector labeled CHA_FAN1 or CHA_FAN2 for better thermal environment. See page 2-28 for the connector location. • Visit the AMD official website at www.amd.com for more information about Hybrid CrossFireX™ support. ASUS M3A78-T 2-17...

  • Seite 42: Jumper

    Jumper Clear RTC RAM (3-pin CLRTC) This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords.

  • Seite 43: Connectors

    4-channel, 6-channel, and 8-channel configuration, the function of this port becomes Front Speaker Out. Microphone port (pink). This port connects a microphone. 10. Side Speaker Out port (gray). This port connects the side speakers in an 8-channel audio configuration. ASUS M3A78-T 2-19...
  • Seite 44 Refer to the audio configuration table on the next page for the function of the audio ports in 2, 4, 6, or 8-channel configuration. Audio 2, 4, 6, or 8-channel configuration Headset Port 4-channel 6-channel 8-channel 2-channel Light Blue Line In Line In Line In Line In...
  • Seite 45 Optical S/PDIF Out port. This port connects an external audio output device via an optical S/PDIF cable. 17. USB 2.0 ports 5 and 6. These 4-pin Universal Serial Bus (USB) ports are available for connecting USB 2.0 devices. ASUS M3A78-T 2-21...
  • Seite 46 Troubleshooting on HDTV overscaling or underscaling: If your desktop is extending beyond the viewable display area or the desktop or image is not filling the entire display area while using the onboard HDMI out port and the HDMI cable, you can resize the desktop appearing on your HDTV screen. To resize your HDTV desktop: Install AMD Chipset Driver from the motherboard support DVD.

  • Seite 47: Internal Connectors

    Pin 5 on the connector is removed to prevent incorrect cable connection when using a FDD cable with a covered Pin 5. ASUS M3A78-T 2-23...
  • Seite 48 IDE connector (40-1 pin PRI_IDE) The onboard IDE connector is for the Ultra DMA 133/100/66/33 signal cable. There are three connectors on each Ultra DMA 133/100/66/33 signal cable: blue, black, and gray. Connect the blue connector to the motherboard’s IDE connector, then select one of the following modes to configure your device.
  • Seite 49 Connect the right-angle side of SATA signal cable to SATA device. Or you may connect the right-angle side of SATA cable to the onboard SATA port to avoid mechanical conflict with huge graphics cards. ASUS M3A78-T 2-25...
  • Seite 50 Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard! You can connect the front panel USB cable to the ASUS Q-Connector (USB, blue) first, and then install the Q-Connector (USB) to the USB connector onboard if your chassis supports front panel USB ports.
  • Seite 51 Never connect a USB cable to the IEEE 1394a connector. Doing so will damage the motherboard! You can connect the front panel 1394 cable to the ASUS Q-Connector (1394, red) first, and then install the Q-Connector (1394) to the 1394 connector onboard if your chassis supports front panel 1394 ports.
  • Seite 52 Do not place jumper caps on the fan connectors! • Only the CPU_FAN, CHA_FAN1 and CHA_FAN2 connectors support the ASUS Q-Fan 2 feature. • If you install two graphics cards, we recommend that you plug the rear chassis fan cable to the motherboard connector labeled CHA_FAN1 or CHA_FAN2 for better thermal environment.
  • Seite 53 By default , the pin labeled “Chassis Signal” and “Ground” are shorted with a jumper cap. Remove the jumper caps only when you intend to use the chassis intrusion detection feature. ASUS M3A78-T 2-29...
  • Seite 54 • If you are uncertain about the minimum power supply requirement for your system, refer to the Recommended Power Supply Wattage Calculator at http://support.asus.com/PowerSupplyCalculator/PSCalculator. aspx?SLanguage=en-us for details. • The ATX 12 V Specification 2.0-compliant (500W) PSU has been tested...
  • Seite 55 Front Panel Support Type item in the BIOS setup to [HD Audio]; if you want to connect an AC'97 front panel audio module to this connector, set the item to [AC97]. By default, this connector is set to [HD Audio]. ASUS M3A78-T 2-31...
  • Seite 56 10. Optical drive audio connector (4-pin CD) These connectors allow you to receive stereo audio input from sound sources such as a CD-ROM, TV tuner, or MPEG card. 11. Digital audio connector (4-1 pin SPDIF_OUT) This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port(s).
  • Seite 57 BIOS settings. Pressing the power switch for more than four seconds while the system is ON turns the system OFF. • Reset button (2-pin RESET) This 2-pin connector is for the chassis-mounted reset button for system reboot without turning off the system power. ASUS M3A78-T 2-33...
  • Seite 58 2-34 Chapter 2: Hardware information...

  • Seite 59: Chapter 3: Powering Up

    This chapter describes the power up sequence, the vocal POST messages, Chapter 3: and ways of shutting down the system. Powering up...

  • Seite 60: Chapter Summary

    Chapter summary Starting up for the first time ............3-1 Turning off the computer ............. 3-2 ASUS M3A78-T...

  • Seite 61: Starting Up For The First Time

    (repeated) One continuous beep followed by three No VGA detected short beeps One continuous beep followed by four Hardware component failure short beeps At power on, hold down the <Delete> key to enter the BIOS Setup.. ASUS M3A78-T...

  • Seite 62: Turning Off The Computer

    Turning off the computer 3.2.1 Using the OS shut down function If you are using Windows ® Click the Start button then select Turn Off Computer. Click the Turn Off button to shut down the computer. The power supply should turn off after Windows ®...

  • Seite 63: Chapter 4: Bios Setup

    This chapter tells how to change the system settings through the BIOS Setup menus. Detailed descriptions of the BIOS Chapter 4: parameters are also provided. BIOS setup...
  • Seite 64 Chapter summary Managing and updating your BIOS ..........4-1 BIOS setup program ..............4-9 Main menu .................. 4-12 Advanced menu ................. 4-17 Power menu ................4-31 Boot menu .................. 4-35 Tools menu ................. 4-39 Exit menu ..................4-42 ASUS M3A78-T...

  • Seite 65: Managing And Updating Your Bios

    The following utilities allow you to manage and update the motherboard Basic Input/Output System (BIOS) setup. ASUS EZ Flash 2 (Updates the BIOS using a floppy disk, USB Flash, or the motherboard support DVD during POST.) ASUS AFUDOS (Updates the BIOS in DOS mode using a bootable floppy disk.)

  • Seite 66: Creating A Bootable Floppy Disk

    4.1.1 Creating a bootable floppy disk Do either one of the following to create a bootable floppy disk. DOS environment a. Insert a 1.44MB floppy disk into the drive. b. At the DOS prompt, type format A:/S then press <Enter>. Windows XP environment ®...

  • Seite 67: Asus Ez Flash 2 Utility

    4.1.2 ASUS EZ Flash 2 utility The ASUS EZ Flash 2 feature allows you to update the BIOS without having to go through the long process of booting from a floppy disk and using a DOS-based utility. The EZ Flash 2 utility is built-in the BIOS chip so it is accessible by pressing <Alt>...

  • Seite 68: Afudos Utility

    Extension name Press <Enter>. The utility copies the current BIOS file to the floppy disk. A:\>afudos /oOLDBIOS1.rom AMI Firmware Update Utility - Version 1.19(ASUS V2.07(03.11.24BB)) Copyright (C) 2002 American Megatrends, Inc. All rights reserved. Reading flash ..done Write to file..ok A:\>...
  • Seite 69 Updating the BIOS file To update the BIOS file using the AFUDOS utility: Visit the ASUS website (www.asus.com) and download the latest BIOS file for the motherboard. Save the BIOS file to a bootable floppy disk. Write the BIOS filename on a piece of paper. You need to type the exact BIOS filename at the DOS prompt.

  • Seite 70: Asus Update Utility

    4.1.4 ASUS Update utility The ASUS Update is a utility that allows you to manage, save, and update the motherboard BIOS in Windows environment. The ASUS Update utility allows you ® • Save the current BIOS file • Download the latest BIOS file from the Internet •...
  • Seite 71 To update the BIOS through the Internet: desktop by clicking Start Launch the ASUS Update utility from the Windows ® > Programs > ASUS > ASUSUpdate > ASUSUpdate. The ASUS Update main window appears. Select Update BIOS from Select the ASUS FTP site nearest...
  • Seite 72 To update the BIOS through a BIOS file: Launch the ASUS Update utility from the Windows desktop by clicking Start ® > Programs > ASUS > ASUSUpdate > ASUSUpdate. The ASUS Update main window appears. Select Update BIOS from a file option from the drop-down menu, then click Next.

  • Seite 73: Bios Setup Program

    The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen. • Visit the ASUS website (www.asus.com) to download the latest BIOS file for this motherboard. ASUS M3A78-T...

  • Seite 74: Bios Menu Screen

    • The BIOS setup screens shown in this chapter are for reference purposes only, and may not exactly match what you see on your screen. • Visit the ASUS website (www.asus.com) to download the latest BIOS information. 4.4.3 Navigation keys At the bottom right corner of a menu screen are the navigation keys for that particular menu.

  • Seite 75: Menu Items

    Up/Down arrow keys or <Page Up> /<Page Down> keys to display the other items on the screen. Pop-up window 4.2.9 General help Scroll bar At the top right corner of the menu screen is a brief description of the selected item. ASUS M3A78-T 4-11...

  • Seite 76: Main Menu

    [1.44M, 3.5 in.] Use [+] or [-] to Primary IDE Master [Not Detected] configure system time. Primary IDE Slave [Not Detected] SATA1 [HDT722516DLA380] SATA2 [ASUS CRW-5232A1] SATA3 [Not Detected] SATA4 [Not Detected] SATA5 [Not Detected] SATA6 [Not Detected] Select Screen...

  • Seite 77: Primary Ide Master/Slave

    When set to [Disabled], the data transfer from and to the device occurs one sector at a time. Configuration options: [Disabled] [Auto] PIO Mode [Auto] Selects the PIO mode. Configuration options: [Auto] [0] [1] [2] [3] [4] ASUS M3A78-T 4-13...

  • Seite 78: Sata1/2/3/4/5/6

    DMA Mode [Auto] Selects the DMA mode. Configuration options: [Auto] [SWDMA0] [SWDMA1] [SWDMA2] [MWDMA0] [MWDMA1] [MWDMA2] [UDMA0] [UDMA1] [UDMA2] [UDMA3] [UDMA4] [UDMA5] [UDMA6] SMART Monitoring [Auto] Sets the Smart Monitoring, Analysis, and Reporting Technology. Configuration options: [Auto] [Disabled] [Enabled] 32Bit Data Transfer [Enabled] Enables or disables 32-bit data transfer.

  • Seite 79: Storage Configuration

    Enables or disables OnChip SATA Channel. Configuration options: [Disabled] [Enabled] OnChip SATA Type [IDE] This item appears only when you set the OnChip SATA Channel item to [Enabled] and allows you to set the OnChip SATA Type. Configuration options: [IDE] [RAID] [AHCI] ASUS M3A78-T 4-15...

  • Seite 80: System Information

    • If you want to use the Serial ATA hard disk drives as Parallel ATA physical If you want to use the Serial ATA hard disk drives as Parallel ATA physical storage devices, keep the default setting [IDE]. • If you want the Serial ATA hard disk drives to use the Advanced Host Controller Interface (AHCI), set this item to [AHCI].

  • Seite 81: Advanced Menu

    Select any one of the preset overclocking configuration options: Manual Allows you to individually set overclocking parameters. Auto Loads the optimal settings for the system. Standard Loads the standard settings for the system.performance. Overclock Profile Loads overclocking profiles with optimal parameters for stability when overclocking. ASUS M3A78-T 4-17...
  • Seite 82 The following item appears only when you set the Ai Overclocking item to [Overclock Profile]. Overclock Options [Disabled] Allows you to set the overclocking options. Configuration options: [Disabled] [Overclock 3%] [Overclock 5%] [Overclock 10%] [Overclock 15%] [Overclock 20%] [Overclock 30%] The following two items appear only when you set the Ai Overclocking item to [Manual].
  • Seite 83 You can enter the desired Core/PCIe voltage using the numeric keypad. The values range from 1.10V to 1.60V with a 0.02V interval. CPU Tweak [Enabled] Allows you to enable or disable the CPU Tweak feature. Configuration options: [Enabled] [Disabled] ASUS M3A78-T 4-19...

  • Seite 84: Dram Timing Configuration

    DRAM Timing Configuration BIOS SETUP UTILITY Advanced DRAM Timing Configuration Options Memory Clock Mode [Auto] Auto 2T Mode [Auto] Limit DRAM Timing Mode [Auto] Manual The configuration options for some of the following items vary depending on the depending on the DIMMs you install on the motherboard.

  • Seite 85: Ai Net 2

    LAN (RJ-45) port. BIOS SETUP UTILITY Advanced AI NET 2 Check Realtek LAN Pair Status Length cable during POST. 1-2 N/A Realtek Controller 0 3-6 N/A 4-5 N/A 7-8 N/A Marvell POST Check LAN cable [Disabled] ASUS M3A78-T 4-21...

  • Seite 86: Cpu Configuration

    Marvell POST Check LAN cable [Disabled] Allows you to enable or disable LAN cable check during POST. When enabled, the menu reports the cable faults or shorts, and displays the point (length) where the faults or shorts are detected. Configuration options: [Disabled] [Enabled] 4.4.3 CPU Configuration BIOS SETUP UTILITY...

  • Seite 87: Chipset

    Use the <+> and <-> keys to change the value or type the desired value using the numeric keypad. The values range from 0 to 255. Port #02/03 Features Gen2 High Speed Mode [Disabled] Configuration options: [Auto] [Disabled] [Software Initiated] [Advertised RC] ASUS M3A78-T 4-23...
  • Seite 88 Link ASPM [Disabled] Configuration options: [Disabled] [L0s] [L1] [L0s & L1] Link Width [Auto] Configuration options: [Auto] [x1] [x2] [x4] [x8] [x16] Slot Power Limit, W [75] Use the <+> and <-> keys to change the value or type the desired value using the numeric keypad.
  • Seite 89 If you set the PCI Express device as the primary display and enable this item, you may use the internal graphics as the secondary display. Configuration options: [Disabled] [Enable] NB Azalia [Enable] Enables or disables the Northbridge Azalia support. Configuration options: [Disabled] [Enable] ASUS M3A78-T 4-25...

  • Seite 90: Ecc Configuration

    4.4.5 ECC Configuration BIOS SETUP UTILITY Advanced ECC Configuration Set the level of ECC protection. Note: The ECC Mode [Disabled] ‘Super’ ECC mode DRAM ECC Enable [Disabled] dynamically sets the DRAM SCRUB REDIRECT [Disabled] DRAM scrub rate so 4-Bit ECC Mode [Disabled] all of memory is DRAM BG Scrub...
  • Seite 91 Disables or sets the L2/L3 Cache BG Scrub. This item allows the L2/L3 Data Cache RAM to be corrected when idle. Configuration options: [Disabled] [40ns] [80ns] [160ns] [320ns] [640ns] [1.28us] [2.56us] [5.12us] [10.2us] [20.5us] [41.0us] [81.9us] [163.8us] [327.7us] [655.4us] [1.31ms] [4.62ms] [5.24ms] [10.49ms] [20.97ms] [42.00ms] [84.00ms] ASUS M3A78-T 4-27...

  • Seite 92: Onboard Devices Configuration

    4.4.6 Onboard Devices Configuration Advanced Onboard Devices Configuraiton Allows BIOS to Select Serial Port1 Base Serial Port1 Address [3F8/IRQ4] Addresses. HD Audio Azalia Device [Auto] Front Panel Support Type [HD Audio] SPDIF_OUT Mode Setting [SPDIF Output] Onboard 1394 [Enabled] Onboard Marvell Lan [Enabled] Onboard Marvell LAN Boot ROM [Disabled] Primary Display Adapter...

  • Seite 93: Pci Pnp

    Configuration options: [No] [Yes] Palette Snooping [Disabled] When set to [Enabled], the palete snooping feature informs the PCI devices that an ISA graphics device is installed in the system so that the latter can function correctly. Configuration options: [Disabled] [Enabled] ASUS M3A78-T 4-29...

  • Seite 94: Usb Configuration

    IRQ-xx assigned to [PCI Device] When set to [PCI Device], the specific IRQ is free for use of PCI/PnP devices. When set to [Reserved], the IRQ is reserved for legacy ISA devices. Configuration options: [PCI Device] [Reserved] 4.4.8 USB Configuration The items in this menu allows you to change the USB-related features.

  • Seite 95: Power Menu

    Allows you to enable or disable the Advanced Configuration and Power Interface (ACPI) support in the Application-Specific Integrated Circuit (ASIC). When set to Enabled, the ACPI APIC table pointer is included in the RSDT pointer list. Configuration options: [Disabled] [Enabled] ASUS M3A78-T 4-31...

  • Seite 96: Apm Configuration

    4.5.5 APM Configuration BIOS SETUP UTILITY Power Power Button Mode [On/Off] Select Power button Power On By PCI devices [Disabled] functionality. Power On By PCIE Devices [Disabled] Power On By External Modems [Disabled] Power On By RTC Alarm [Disabled] Power On By PS/2 Keyboard [Disabled] Power On By PS/2 Mouse [Disabled]...
  • Seite 97 When set to Power On, the system goes on after an AC power loss. When set to Last State, the system goes into either off or on state, whatever the system state was before the AC power loss. Configuration options: [Power Off] [Power On] [Last State] ASUS M3A78-T 4-33...

  • Seite 98: Hardware Monitor

    Select [Ignored] if you do not want to detect this item. Smart Q-Fan Function [Disabled] Allows you to enable or disable the ASUS Q-Fan feature that smartly adjusts the fan speeds for more efficient system operation. Configuration options: [Disabled] [Enabled] The following items appear only if you set the Smart Q-Fan Function to [Enabled].

  • Seite 99: Boot Menu

    These items specify the boot device priority sequence from the available devices. The number of device items that appears on the screen depends on the number of devices installed in the system. Configuration options: [1st FlOPPY DRIVE] [Hard Drive] [ATAPI DVD-ROM] [Disabled] ASUS M3A78-T 4-35...

  • Seite 100: Boot Settings Configuration

    This allows you to enable or disable the full screen logo display feature. Configuration options: [Disabled] [Enabled] Set this item to [Enabled] to use the ASUS MyLogo 2™ feature. Add On ROM Display Mode [Force BIOS] Sets the display mode for option ROM.

  • Seite 101: Security

    Real Time Clock (RTC) RAM. See section 1.9 Jumpers for information on how to erase the RTC RAM. After you have set a supervisor password, the other items appear to allow you to change other security settings. ASUS M3A78-T 4-37...

  • Seite 102: Change User Password

    BIOS SETUP UTILITY Boot Security Settings <Enter> to change password. Supervisor Password : Installed <Enter> again to User Password : Installed disabled password. Change Supervisor Password User Access Level [Full Access] Change User Password Clear User Password Password Check [Setup] User Access Level [Full Access] This item allows you to select the access restriction to the Setup items.

  • Seite 103: Tools Menu

    (C)Copyright 1985-2008, American Megatrends, Inc. 4.7.1 ASUS EZ Flash 2 Allows you to run ASUS EZ Flash 2. When you press <Ok>, a confirmation message appears. Use the left/right arrow key to select between [Yes] or [No], then press <Ok> to confirm your choice.

  • Seite 104: Express Gate

    Enabled Reset User Data [No] You have to install the ASUS Express Gate application from the support DVD first before you can enable this feature. See page 3-5 for details. Express Gate [Enabled] Allows you to enable or disable the ASUS Express Gate feature. ASUS Express Gate is a unique instant-on environment that provides quick access to the Internet browser and Skype.

  • Seite 105: Asus O.c. Profile

    4.7.3 ASUS O.C. Profile This item allows you to store or load multiple BIOS settings. BIOS SETUP UTILITY Tools O.C. PROFILE Configuration Save BIOS settings to Profile 1 O.C. Profile 1 Status : Not Installed O.C. Profile 2 Status : Not Installed...

  • Seite 106: Exit Menu

    Exit menu The Exit menu items allow you to load the optimal or failsafe default values for the BIOS items, and save or discard your changes to the BIOS items. BIOS SETUP UTILITY Exit Exit Options Exit system setup after saving the Exit &...

  • Seite 107: Chapter 5: Software Support

    This chapter describes the contents of the support DVD that comes with the motherboard package. Chapter 5: Software support...

  • Seite 108: Chapter Summary

    Chapter summary Installing an operating system ........... 5-1 Support DVD information ............5-1 Software information ..............5-9 RAID configurations ..............5-44 Creating a RAID driver disk ............5-51 ASUS M3A78-T...

  • Seite 109: Installing An Operating System

    The contents of the support DVD are subject to change at any time without notice. Visit the ASUS website(www.asus.com) for updates. 5.2.1 Running the support DVD Place the support DVD to the optical drive. The DVD automatically displays the Drivers menu if Autorun is enabled in your computer.

  • Seite 110: Drivers Menu

    The drivers menu shows the available device drivers if the system detects installed devices. Install the necessary drivers to activate the devices. ASUS InstAll - Installation Wizard for Anti-Virus and drivers Installs all of the drivers and the Anti-Virus utility through the installation wizard.

  • Seite 111: Utilities Menu

    Click to display the next page Click to return to the previous page ASUS InstAll - Installation Wizard for Utilities Installs all of the utilities through the Installation Wizard. AMD OverDrive Utility (AOD) Installs the AMD OverDrive utility. Marvell Yukon VCT Application Installs the Marvell Yukon Virtual Cable Tester™...
  • Seite 112 This item installs the ASUS Cool‘n’Quiet utility. ASUS Update Allows you to download the latest version of the BIOS from the ASUS website. Before using the ASUS Update, make sure that you have an Internet connection so you can connect to the ASUS website.

  • Seite 113: Make Disk Menu

    ® 5.2.4 Make Disk menu The Make Disk menu contains items to create the ATI force™ RAID/AHCI driver ® disk. ATI RAID/AHCI 32/64bit WinXP/Vista Driver Allows you to create ATI RAID/AHCI driver disks for 32/64bit Windows XP/Vista. ® ASUS M3A78-T...

  • Seite 114: Manual Menu

    Reader from the Utilities menu before opening a user manual ® ® file. 5.2.6 ASUS Contact information Click the Contact tab to display the ASUS contact information. You can also find this information on the inside front cover of this user guide. Chapter 5: Software support...

  • Seite 115: Other Information

    The icons on the top right corner of the screen give additional information on the motherboard and the contents of the support DVD. Click an icon to display the specified information. Motherboard Info Displays the general specifications of the motherboard. Browse this DVD Displays the support DVD contents in graphical format. ASUS M3A78-T...
  • Seite 116 Technical support Form Displays the ASUS Technical Support Request Form that you have to fill out when requesting technical support. File list Displays the contents of the support DVD and a brief description of each in text format. Chapter 5: Software support...

  • Seite 117: Software Information

    5.3.1 ASUS MyLogo2™ The ASUS MyLogo2™ utility lets you customize the boot logo. The boot logo is the image that appears on screen during the Power-On Self-Tests (POST). The ASUS MyLogo2™ is automatically installed when you install the ASUS Update utility from the support DVD.
  • Seite 118 Ratio box. When the screen returns to the ASUS Update utility, flash the original BIOS to load the new boot logo. 10. After flashing the BIOS, restart the computer to display the new boot logo during POST.

  • Seite 119: Cool 'N' Quiet!™ Technology

    Double-click the Display icon in the Control Panel then select the Screen Saver tab. Click the Power button. The following dialogue box appears. From the Power schemes combo list box, select Minimal Power Management. Click OK to effect settings. ASUS M3A78-T 5-11...
  • Seite 120 The AMD Cool ‘n’ Quiet!™ technology feature works only with the AMD heatsink and fan assembly with monitor chip • If you purchased a separate heatsink and fan package, use the ASUS Q-Fan technology feature to automatically adjust the CPU fan speed according to your system loading.
  • Seite 121 Vista, click the Start button. Select All Programs If you are using Windows ® > ASUS > Cool & Quiet > Cool & Quiet. The Cool ‘n’ Quiet!™ technology screen appears and displays the current CPU Frequency and CPU Voltage.

  • Seite 122: Audio Configurations

    5.3.3 Audio configurations The Realtek audio CODEC provides 8-channel audio capability to deliver the ® ultimate audio experience on your computer. The software provides Jack-Sensing function, S/PDIF Out support, and interrupt capability. The CODEC also includes the Realtek proprietary UAJ (Universal Audio Jack) technology for all audio ports, ®...

  • Seite 123: Configuration Options

    Configuration options Click any of the tabs in this area to configure your audio settings. In the Windows Vista™ environment, Realtek HD Audio Manager automatically detects devices connected to the analog/digital ports and shows corresponding configuration options tabs. ASUS M3A78-T 5-15...
  • Seite 124 Digital Output The Realtek ® audio CODEC allows you to connect an external audio output device via the coaxial/digital S/PDIF port. You can set your listening environment, set the karaoke, or select pre-programmed equalizer settings for your listening pleasure. To set the digital output options From the Realtek HD Audio Manager, click the Digital Output tab.
  • Seite 125 Acoustic Echo Cancellation option button to reduce the echo from the front speakers when recording. Click the Beam Forming option button to eliminate surrounding noise interferences. Click the Default Format sub-tab for options on changing the default audio input format. Click to effect the Microphone settings and exit. ASUS M3A78-T 5-17...
  • Seite 126 Realtek HD Audio Manager for Windows XP™ Exit button Configuration options Minimize button Control settings window Information button Information Click the information button ( ) to display information about the audio driver version, DirectX version, audio controller, audio codec, and language setting. Minimize Click the minimize button ( ) to minimize the window.
  • Seite 127 Line Volume, and Stereo mix, etc. by clicking the control tabs and dragging them up and down until you get the desired levels. Click the next button ( ) to display more menu options. Click to effect the Mixer settings and exit. ASUS M3A78-T 5-19...
  • Seite 128 Audio I/O The Audio I/O option allows you configure your input/output settings. To set the Audio I/O options From the Realtek HD Audio Manager, click the Audio I/O tab. Click the drop-down menu to select the channel configuration. The control settings window displays the status of connected devices.
  • Seite 129 From the Realtek HD Audio Manager, click the 3D Audio Demo tab. Click the option buttons to change the sound, moving path, or environment settings. Click to test your settings. Click to effect the 3D Audio Demo settings and exit. ASUS M3A78-T 5-21...

  • Seite 130: Asus Pc Probe Ii

    To launch the PC Probe II from the Windows ® > ASUS > PC Probe II > PC Probe II v1.xx.xx. The PC Probe II main window appears. After launching the application, the PC Probe II icon appears in the Windows ®...
  • Seite 131 When displayed, the monitor panel for that sensor also turns red. Refer to the Monitor panels section for details. Preference You can customize the application using the Preference section in the main window. Click the box before each preference to activate or deactivate. ASUS M3A78-T 5-23...
  • Seite 132 Hardware monitor panels The hardware monitor panels display the current value of a system sensor such as fan rotation, CPU temperature, and voltages. The hardware monitor panels come in two display modes: hexagonal (large) and rectangular (small). When you check the Enable Monitoring Panel option from the Preference section, the monitor panels appear on your computer’s desktop.
  • Seite 133 You can enlarge or reduce the browser size by dragging the bottom right corner of the browser. DMI browser Click to display the DMI (Desktop Management Interface) browser. This browser displays various desktop and system information. Click the plus sign (+) before DMI Information to display the available information. ASUS M3A78-T 5-25...
  • Seite 134 PCI browser Click to display the PCI (Peripheral Component Interconnect) browser. This browser provides information on the PCI devices installed on your system. Click the plus sign (+) before the PCI Information item to display available information. Usage The Usage browser displays real-time information on the CPU, hard disk drive space, and memory usage.
  • Seite 135 The Preference tab allows you to customize sensor alerts, or change the temperature scale. Loads the default Loads your saved threshold values for Cancels or configuration each sensor ignores your changes Applies your Saves your changes configuration ASUS M3A78-T 5-27...

  • Seite 136: Asus Ai Suite

    5.3.5 ASUS AI Suite ASUS AI Suite allows you to launch AI Gear 2, AI Booster, AI Nap, and Q-Fan 2 utilities easily. Installing AI Suite To install AI Suite on your computer: Place the support DVD to the optical drive. The Drivers installation tab appears if your computer has an enabled Autorun feature.
  • Seite 137 Displays the CPU/ system temperature, CPU/memory/PCIE voltage, and CPU/ chassis fan speed Displays the FSB/CPU frequency Click on right corner of the expanded window to switch the temperature from degrees Centigrade to degrees Fahrenheit. ASUS M3A78-T 5-29...

  • Seite 138: Asus Ai Gear 2

    5.3.6 ASUS AI Gear 2 ASUS AI Gear 2 provides four system performance options that allows you to select the best performance setting for your computing needs. This easy-to-use utility adjusts the processor frequency and vCore voltage to minimize system noise and power consumption.

  • Seite 139: Asus Ai Nap

    5.3.7 ASUS AI Nap This feature allows you to minimize the power consumption of your computer whenever you are away. Enable this feature for minimum power consumption and a more quiet system operation. After installing AI Suite from the bundled support DVD, you can launch the utility by double-clicking the AI Suite icon on the Windows OS taskbar and click the AI Nap button on the AI Suite main window.

  • Seite 140: Asus Q-Fan 2

    5.3.8 ASUS Q-Fan 2 This ASUS Q-Fan 2 Control feature allows you to set the appropriate performance level of the CPU Q-Fan 2 or the Chassis Q-Fan 2 for more efficient system operation. After enabling the Q-Fan 2 function, the fans can be set to automatically adjust depending on the temperature, to decrease fan speed, or to achieve the maximum fan speed.

  • Seite 141: Asus Ai Booster

    5.3.9 ASUS AI Booster The ASUS AI Booster application allows you to overclock the CPU speed in WIndows environment without the hassle of booting the BIOS. ® After installing AI Suite from the bundled support DVD, you can launch the utility...

  • Seite 142: Asus Express Gate

    5.3.10 ASUS Express Gate ASUS Express Gate is an instant-on environment that gives you quick access to the Internet. Within a few seconds of powering on your computer, you will be at the Express Gate menu where you can start the web browser, Skype, or other Express Gate softwares.
  • Seite 143 The very first time you enter the Express Gate environment (by launching either web or Skype from the first screen), a first time wizard will guide you through basic Express Gate configurations. Basic configurations include language, date and time and screen resolution. ASUS M3A78-T 5-35...
  • Seite 144 Once inside the Express Gate environment, click on the icons on the LaunchBar, by default at bottom of the screen, to launch or switch between softwares. You can re-arrange, re-size and move windows. Bring a window to the foreground by clicking within it or by clicking on its corresponding software icon. Re-size a window by dragging any of its four corners.
  • Seite 145 Express Gate to finish clearing the settings. This is also useful in the rare case where settings might become corrupted. The first-time Wizard will run again when you enter the Express Gate environment after clearing its settings. ASUS M3A78-T 5-37...
  • Seite 146 USB drive. If a USB device is detected, the icon contains a green arrow. ASUS Express Gate supports file uploading from SATA HDDs, ODDs and USB drive and downloading to USB drives only. Shows network status; click to configure network.
  • Seite 147 Click to choose input language and method as well as keyboard shortcuts (Ctrl-Space by default). Click to change LaunchBar options (auto-hide, docking position, etc). Click to show the “ASUS Utility” panel. Click to show “About Express Gate ”. Click to open Express Gate Help.
  • Seite 148 Open Network. Network Make the proper network configurations. Each network interface is enabled immediately when you check the box next to it. • If you use a network cable connected to a home router (which is then connected to your DSL/cable modem), enable both LAN1 and LAN2. Express Gate will automatically use whichever port (LAN1 or LAN2) is connected.
  • Seite 149 Shows user- created image album(s) Image control bar ASUS Express Gate supports HDDs connected to motherboard chipset- controlled onboard SATA ports only. All onboard extended SATA ports and external SATA ports are NOT supported. ASUS M3A78-T 5-41...

  • Seite 150: Configuring Express Gate In Bios Setup

    Express Gate software will be released regularly, adding refinements or new applications. You can find original version of the software on the support DVD or download new versions from the ASUS support website. To update Express Gate Double-click the Express Gate setup file to start software update.

  • Seite 151: Amd Overdrive (Aod)

    Some advanced options in AOD are only supported by certain AMD Black Edition CPUs (such as Phenom 9600 Black Edition, Phenom 9850 Black Edition and Phenom 9950 Black Edition). visit the AMD official website at www.amd. com for CPU support lists. ASUS M3A78-T 5-43...

  • Seite 152: Raid Configurations

    RAID configurations The motherboard comes with the AMD SB750 chipset that allows you to configure Serial ATA hard disk drives as RAID sets. The motherboard supports the following RAID configurations: RAID 0, RAID 1, RAID 5 and RAID 10. 5.4.1 RAID definitions RAID 0 (Data striping) optimizes two identical hard disk drives to read and write data in parallel, interleaved stacks.

  • Seite 153: Installing Serial Ata Hard Disks

    In the Main Menu, go to Storage Configuration, and set the OnChip SATA Type item to [RAID]. Press <F10> to save the changes and exit. The RAID BIOS setup screens shown in this section are for reference only, and may not exactly match the items on your screen. ASUS M3A78-T 5-45...
  • Seite 154 FastBuild™ Utility ® To enter the AMD FastBuild™ utility: ® Boot up your computer. Press <Ctrl+F> during POST to display the main menu of the utility. FastBuild (tm) Utility (c) 2004-2005 ATI Technology, Inc. [ Main Menu ] View Drive Assignments..[1] Define LD.....[2] Delete LD.....[3] Controller Configuration..[4]...
  • Seite 155 ---- ---- ---- ---- LD 5 ---- ---- ---- ---- LD 6 ---- ---- ---- ---- LD 7 ---- ---- ---- ---- LD 8 ---- ---- ---- ---- [ Keys Available ] [↑]Up [↓]Down [ESC]Exit [Enter] Select ASUS M3A78-T 5-47...
  • Seite 156 Creating a RAID 1 configuration To create a RAID 1 set: In the Main Menu, press <2> to enter the “Define LD” function. Press <Enter>, and the following screen appears. FastBuild (tm) Utility (c) 2004-2005 ATI Technology, Inc. [ Define LD Menu ] LD No RAID Mode Total Drv...
  • Seite 157 ---- ---- ---- ---- LD 5 ---- ---- ---- ---- LD 6 ---- ---- ---- ---- LD 7 ---- ---- ---- ---- LD 8 ---- ---- ---- ---- [ Keys Available ] [↑]Up [↓]Down [ESC]Exit [Enter] Select ASUS M3A78-T 5-49...
  • Seite 158 Deleting a RAID configuration To create a RAID set: In the Main Menu, press <3> to enter the “Delete LD” function. Select the RAID item you want to delete and press <Del> or <Alt+D>. FastBuild (tm) Utility (c) 2004-2005 ATI Technology, Inc. [ Delete LD Menu ] LD No RAID Mode...

  • Seite 159: Creating A Raid Driver Disk

    Press <F6> then insert the floppy disk with RAID driver into the floppy disk drive. When prompted to select the SCSI adapter to install, make sure you select SB 750. Follow the succeeding screen instructions to complete the installation. ASUS M3A78-T 5-51...
  • Seite 160 To install the RAID driver in Windows Vista™: ® Insert the floppy disk/USB device with RAID driver into the floppy disk drive/ USB port. During the OS installation, select SB 750. Follow the succeeding screen instructions to complete the installation. 5-52 Chapter 5: Software support...

  • Seite 161: Ati ® Hybrid Crossfirex

    This chapter describes the ATI Hybrid CrossFireX™ feature and shows the graphics card installation procedures. Hybrid CrossFireX™ ® technology support...
  • Seite 162 Chapter summary 6.1 Hybrid CrossFireX™ ............6-1 ® ASUS M3A78-T...

  • Seite 163: System Requirements

    [400MHz] 64MB SIDEPORT Memory Voltage [Auto] 128MB GFX Engine Clock Override [Disable] 256MB UMA-SP Interleave Mode [Auto] 512MB Surround View [Enabled] NB Azalia [Enable] Press <F10> to save the changes and exit BIOS settings. Select OK to confirm. ASUS M3A78-T...

  • Seite 164: Installing Amd Chipset Driver

    6.1.3 Installing AMD Chipset Driver To install the driver that supports Hybrid CrossFireX technology: Insert the Support DVD that comes with your motherboard into the optical drive. The DVD automatically displays the Drivers menu if Autorun is enabled in your computer. If Autorun is NOT enabled in your computer, browse the contents of the support DVD to locate the file ASSETUP.EXE from the BIN folder.
  • Seite 165 Click OK. The onboard graphics card is set to be the main monitor. If you are using both an add-on and the on-board graphics cards at same time and want to set the onboard graphics card as your main monitor, follow the instructions on the next page. ASUS M3A78-T...
  • Seite 166 Follow steps 1 to 3 on Using the onboard graphics card. From the ATI CATALYST(R) Control Center screen, click Display Manager > Graphics Adapter. Select ATI Radeon HD 3200 Graphics [Gabbs, G HW173]. Click OK, and then Yes from the confirmation window. Follow steps 6 to step 8 on Using the onboard graphics card to complete the process of setting up...

Inhaltsverzeichnis
