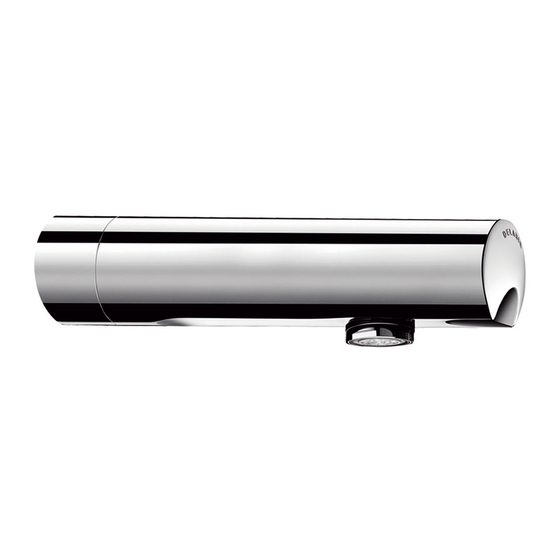

Delabie TEMPOMATIC 4 443410 Bedienungsanleitung

Elektronische waschtischarmatur zur wandmontage

Werbung

Verfügbare Sprachen
  • DE

Verfügbare Sprachen

  • DEUTSCH, seite 23
Robinetterie électronique
FR
murale pour lavabo
Electronic mixers and taps
EN
for basins
Elektronische Waschtischarmatur
DE
zur Wandmontage
Elektroniczna armatura ścienna
PL
do umywalki
Purger soigneusement les canalisations
FR
avant la pose et la mise en service du produit.
Thoroughly flush the pipes to remove any impurities
EN
before installing and commissioning the product.
Vor Montage und Inbetriebnahme des Produkts
DE
die Anschlussleitungen regelkonform spülen.
Dokładnie wypłukać instalację przed
PL
montażem i uruchomieniem produktu.
Spoel zorgvuldig de leidingen alvorens
NL
tot installatie of ingebruikname van de kraan over te gaan.
Purgar cuidadosamente las tuberías
ES
antes de la instalación y de la utilización del producto.
Purgar cuidadosamente as canalizações
PT
antes da colocação e utilização do produto.
TEMPOMATIC 4
Elektronische muurkranen
NL
voor wastafel
Torneiras eletrónicas de parede
ES
para lavatórios
Grifería electrónica mural
PT
para lavabos
NT 493
Indice A

Werbung

loading

Inhaltszusammenfassung für Delabie TEMPOMATIC 4 443410

  • Seite 1 NT 493 TEMPOMATIC 4 Indice A Robinetterie électronique Elektronische muurkranen murale pour lavabo voor wastafel Electronic mixers and taps Torneiras eletrónicas de parede for basins para lavatórios Elektronische Waschtischarmatur Grifería electrónica mural zur Wandmontage para lavabos Elektroniczna armatura ścienna do umywalki Purger soigneusement les canalisations avant la pose et la mise en service du produit.
  • Seite 2 443410, 443510, 443416, 443516 1/2" 1/2" 165 max Ø 20 Ø 10 P.32 P.14...
  • Seite 3 443400, 443500, 443406, 443506 1/2" 1/2" 30 max 30 max Ø 20 Ø 10 P.32...
  • Seite 4 P.14...
  • Seite 5 493410, 493510, 493416, 493516 3/8" 3/8" Ø 50 110 max Ø32 P.33...
  • Seite 6 Ø 15 P.14...
  • Seite 7 493400, 493500, 493406, 493506 1/2" 1/2" 1/2" 1/2" 50x50x25 35 max 35 max 50x50x25 35 max 35 max...
  • Seite 8 P.10 P.12...
  • Seite 9 35 max 35 max 1/2" 1/2"...
  • Seite 10 Ø 32 P.12...
  • Seite 11 65 à 75 max 65 à 75 max 1/2" 1/2"...
  • Seite 13 P.33...
  • Seite 15 1,5 L l/min...
  • Seite 16 Ref. 990123 Ref. 479650...
  • Seite 17 443410, 443510, 443416, 443516 Ref. 714FIL...
  • Seite 18 493410, 493510, 493416, 493516 Ref. 304FC CHECK Ref. 90010 493400, 493500, 493406, 493506 CHECK Ref. 493CAR.10P...
  • Seite 23 FUNKTIONSWEISE • Automatisches Öffnen und Schließen durch Erfassung der Hände im Sensorbereich. Komfort-Laufzeit 3 Sekunden. TECHNISCHE DATEN • Anschluss an Kalt- und Warmwasser von maximal 70°C (gemäß DIN EN 806-2 und VDI Richtlinie 3818 ist die Auslauftemperatur auf maximal 38°C bzw. 40°C zu begrenzen, um Verbrühungsrisiken zu vermeiden). •...
  • Seite 24 Bei Nichtbeachtung dieser Hinweise besteht die Gefahr von Einsickern in die Wand. Hierfür kann DELABIE nicht haftbar gemacht werden IM ZWEIFELSFALL: TECHNISCHE HOTLINE VON DELABIE UNTER +49 (0)231 496634-12 ANRUFEN. DURCHFLUSSREGULIERUNG (Abb. B1, B2, B3 Seite 14) • Der Durchfluss ist werksseitig auf 3 l/min bei 3 bar voreingestellt. Er ist einstellbar von 1,5 bis 6 l/min.
