RF-EXPLORER/3
Order number 25.4670
ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS
RF Spectrum Analyser
GB
Please read these operating instructions carefully prior
to operating the unit and keep them for later reference.
1 Safety Notes
The unit corresponds to all relevant directives of the
EU and is therefore marked with
.
Caution with high EM radiation
The RF EXPLORER allows to measure
very small signals down to -120 dBm.
Therefore, the antenna inputs are very sensitive and
may be damaged by an excessive radiation even
with the unit switched off. The maximum input
level of +5 dBm must not be exceeded. This level
results e. g. at a distance of approx. 1 m to a micro -
wave oven or at a distance of approx. 10 cm to a
mobile phone.
It is also absolutely necessary to prevent static
discharging via the antennas. For instance, firmly
seize the metal housing by one hand prior to attach-
ing or touching an antenna by the other hand.
– For storage or transport, keep the unit in a metal
box and / or remove the antennas.
– In areas of very high RF radiation connect one
SMA plug each with a 50 Ω terminating resistor to
the antenna jacks.
G
The unit is suitable for indoor use only. Protect it
against dripping water and splash water, high air
humidity and heat (admissible ambient temperature
range 0 – 40 °C).
G
For cleaning only use a dry, soft cloth, never use
chemicals or water.
G
No guarantee claims for the unit and no liability for
any resulting personal damage or material damage
will be accepted if the unit is used for other pur-
poses than originally intended, if it is not correctly
operated or not repaired in an expert way.
If the unit is to be put out of operation defini-
tively, take it to a local recycling plant for a
disposal which is not harmful to the environ-
ment.
Do not put defective rechargeable batteries into the
household rubbish but take them to a special waste
disposal (e. g. collective container at your retailer).
®
MONACOR INTERNATIONAL GmbH & Co. KG • Zum Falsch 36 • 28307 Bremen • Germany
2 Overview
The RF EXPLORER has been designed to be intuitive
and easy to use. There is no need to read compre-
hensive user manuals to get advantage of its
advanced functionality. Most of the complexity inher-
ent to the spectrum analyser is simplified by the
firmware. For instance, you do not need to adjust the
resolution bandwidth (RGW) each time you select a
different frequency span. Actually, you do not even
need to know what RBW is.
1
2
3
RF 50Ω
ON
OFF
4
RF Explorer
Handheld Spectrum Analyser
RETURN
MENU
5
ENTER
USB 2.0
6

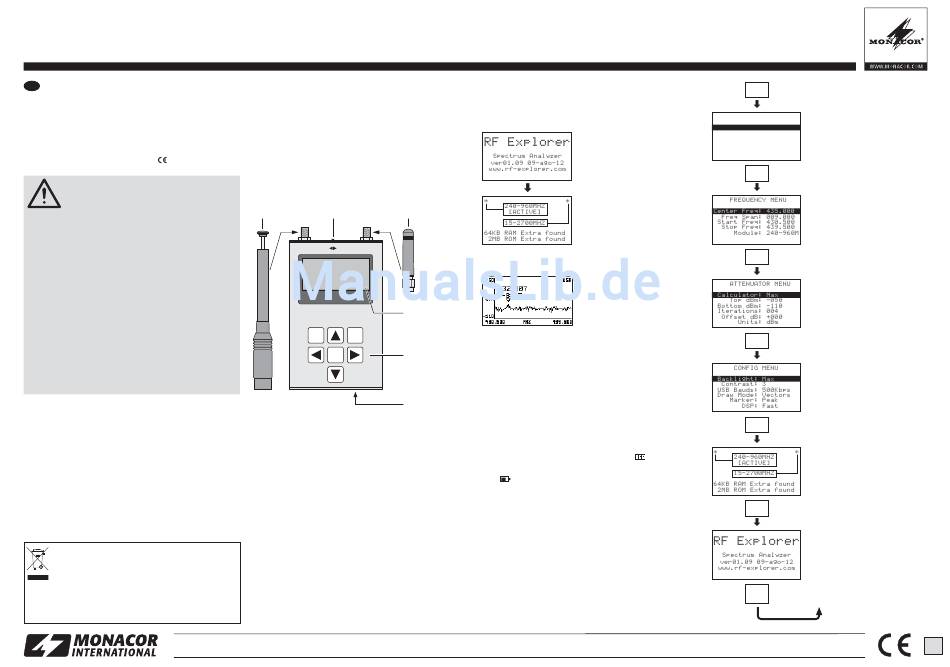

Fig. 1 Connections and operating elements
1 Antenna for the range 240 – 960 MHz
2 On / off switch
3 Antenna for the range 15 – 2700 MHz
4 Display
5 Keypad
6 Mini USB port to charge the battery (for this pur-
pose, set the on / off switch to position ON) and for
operation via a PC
3 Spectrum Analyser Mode
Recharging the battery
After switching on the RF EXPLORER, the display
successively shows two menus with information:
Fig. 2 Info menus
Then the spectrum analyser mode is started automat-
ically:
Fig. 3 Spectrum display
The display shows an X axis and a Y axis, X for the
frequency in MHz and Y for power in dBm. Fig. 3
shows the frequency range from 430.5 MHz to
439.5 MHz and the amplitude (dynamic range) from
-50 dBm to -110 dBm.
Configuration settings such as amplitude reference
and frequency span are preserved between sessions.
The display shows a small marker ▽ which indicates
the peak amplitude in the current frequency span. The
first value states the frequency at this point and the
second value the amplitude.
The display also shows a symbol
for the USB
port (in case of connection to a PC) or a battery sym-
bol
(when the on / off switch is set to ON). To
recharge the internal rechargeable battery, con-
nect the RF-EXPLORER to a USB jack and set the
on/off switch to position ON. Then the USB symbol
and the battery symbol are displayed alternately.
4 Menus
The unit is operated via several menus which are suc-
cessively called with the button MENU. The button
RETURN allows to return from each menu to the
spectrum display.
Copyright
©
by MONACOR INTERNATIONAL. All rights reserved.
MENU
OPERATIONAL MODE
SPECTRUM Analyzer
RF Generator
WiFi Analyzer
MENU
MENU
MENU
MENU
MENU
MENU
Fig. 4 Menu structure
A-1409.99.03.10.2014
