INPUT LEVEL
XLR
INPUT
AUDIO INPUT GATE/
EXPANDER
+4/-10
JACK
INPUT
GATE S/CHAIN
threshold
fast attack full range expand
KEY
KEY INPUT
JACK
INPUT
All manuals and user guides at all-guides.com
VCA FAT BASS BOOST MAKEUP GAIN
bass expand huge
IN (gate)
COMP S/CHAIN
threshold ratio attack release
release/hold
hold soft knee auto
LINK COMP
GATE ATTENUATION
CH 2
Channel 1 only shown. Channel 2 is similar

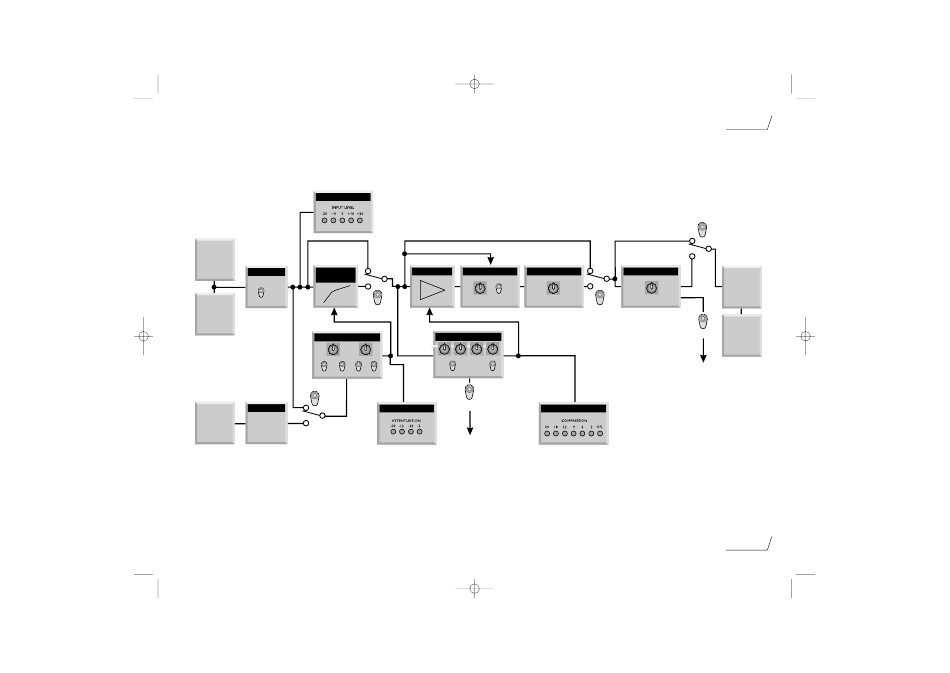

B l o c k D i a g r a m o f t h e C o m P o u n d e r
LIMITER IN
LIMITER
make up limiter
COMP IN
LINK LIMIT
CH 2
COMPRESSION
™
XLR
OUTPUT
+4dBu
JACK
OUTPUT
-10dBV
