Training Notes - Maxxus Punchline Montageanleitung

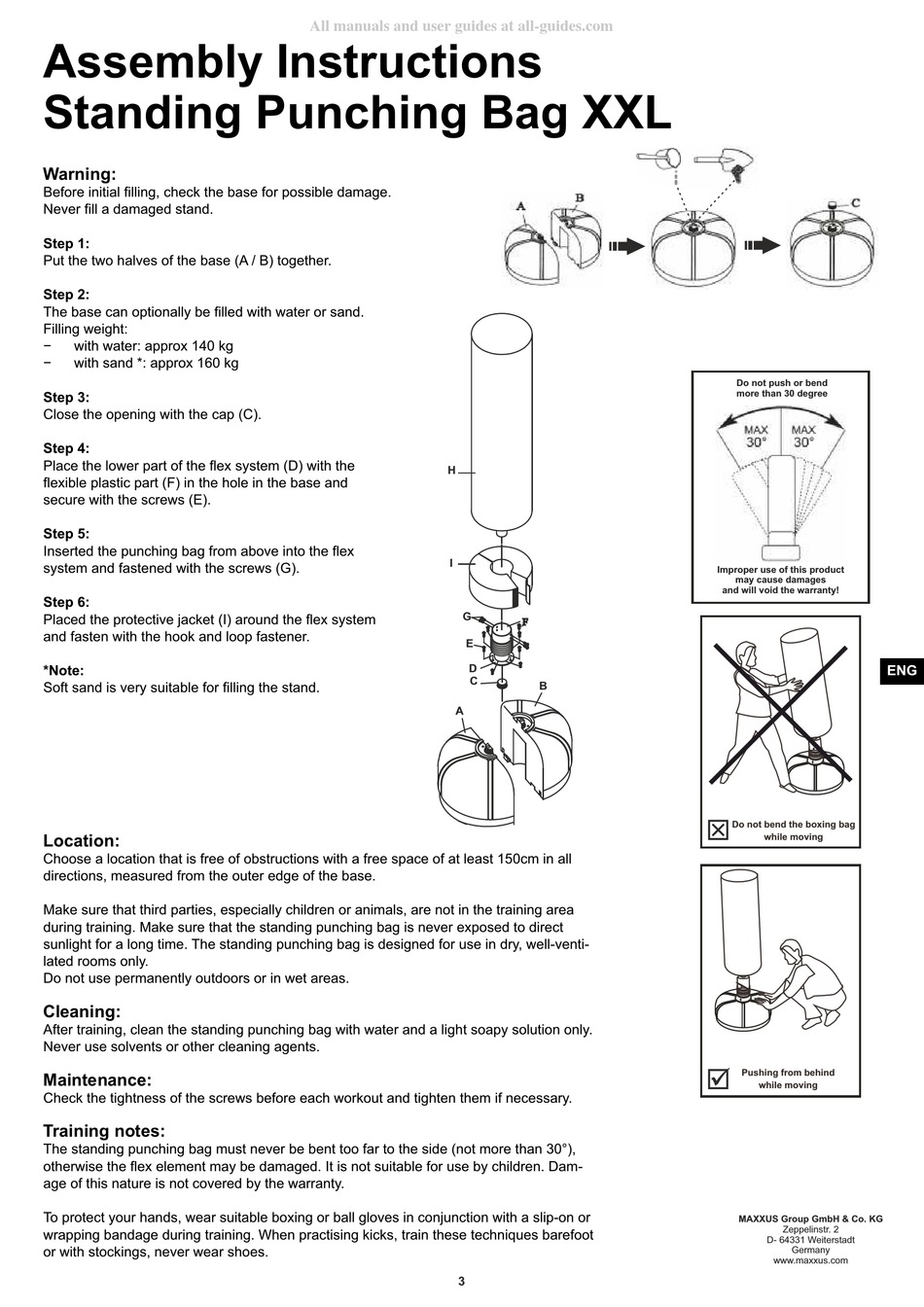

Assembly Instructions
Standing Punching Bag XXL
Warning:
Before initial filling, check the base for possible damage.
Never fill a damaged stand.
Step 1:
Put the two halves of the base (A / B) together.
Step 2:
The base can optionally be filled with water or sand.
Filling weight:
− with water: approx 140 kg
− with sand *: approx 160 kg
Step 3:
Close the opening with the cap (C).
Step 4:
Place the lower part of the flex system (D) with the
flexible plastic part (F) in the hole in the base and
secure with the screws (E).
Step 5:
Inserted the punching bag from above into the flex
system and fastened with the screws (G).
Step 6:
Placed the protective jacket (I) around the flex system
and fasten with the hook and loop fastener.
*Note:
Soft sand is very suitable for filling the stand.
Location:
Choose a location that is free of obstructions with a free space of at least 150cm in all
directions, measured from the outer edge of the base.
Make sure that third parties, especially children or animals, are not in the training area
during training. Make sure that the standing punching bag is never exposed to direct
sunlight for a long time. The standing punching bag is designed for use in dry, well-venti-
lated rooms only.
Do not use permanently outdoors or in wet areas.
Cleaning:
After training, clean the standing punching bag with water and a light soapy solution only.
Never use solvents or other cleaning agents.
Maintenance:
Check the tightness of the screws before each workout and tighten them if necessary.

Training notes:

The standing punching bag must never be bent too far to the side (not more than 30°),
otherwise the flex element may be damaged. It is not suitable for use by children. Dam-
age of this nature is not covered by the warranty.
To protect your hands, wear suitable boxing or ball gloves in conjunction with a slip-on or
wrapping bandage during training. When practising kicks, train these techniques barefoot
or with stockings, never wear shoes.
All manuals and user guides at all-guides.com
H
I
G
E
D
C
A
3
F
B
Do not push or bend
more than 30 degree
Improper use of this product
may cause damages
and will void the warranty!
T
Do not bend the boxing bag
while moving
þ
Pushing from behind
while moving
MAXXUS Group GmbH & Co. KG
Zeppelinstr. 2
D- 64331 Weiterstadt
Germany
www.maxxus.com
ENG
