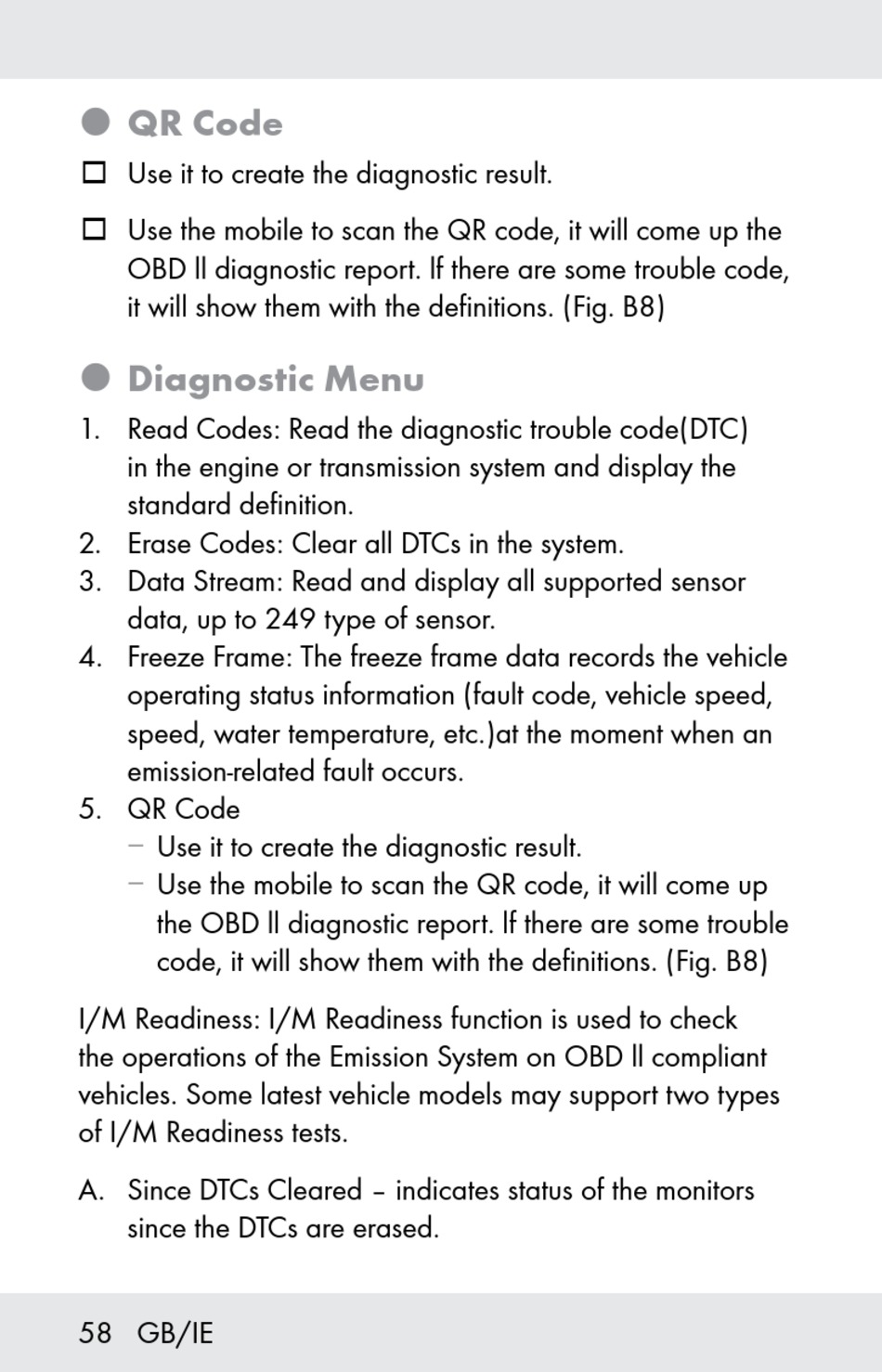

˜ QR Code
o Use it to create the diagnostic result .
o Use the mobile to scan the QR code, it will come up the
OBD ll diagnostic report . lf there are some trouble code,
it will show them with the definitions . (Fig . B8)
˜ Diagnostic Menu
1 . Read Codes: Read the diagnostic trouble code(DTC)
in the engine or transmission system and display the
standard definition .
2 . Erase Codes: Clear all DTCs in the system .
3 . Data Stream: Read and display all supported sensor
data, up to 249 type of sensor .
4 . Freeze Frame: The freeze frame data records the vehicle
operating status information (fault code, vehicle speed,
speed, water temperature, etc .)at the moment when an
emission-related fault occurs .
5 . QR Code
Use it to create the diagnostic result .
Use the mobile to scan the QR code, it will come up
the OBD ll diagnostic report . lf there are some trouble
code, it will show them with the definitions . (Fig . B8)
I/M Readiness: I/M Readiness function is used to check
the operations of the Emission System on OBD ll compliant
vehicles . Some latest vehicle models may support two types
of I/M Readiness tests .
A . Since DTCs Cleared – indicates status of the monitors
since the DTCs are erased .
58 GB/IE
