System Map: Bottom & Rear Views (Model B)
2
1
16
1
6
4
5
3

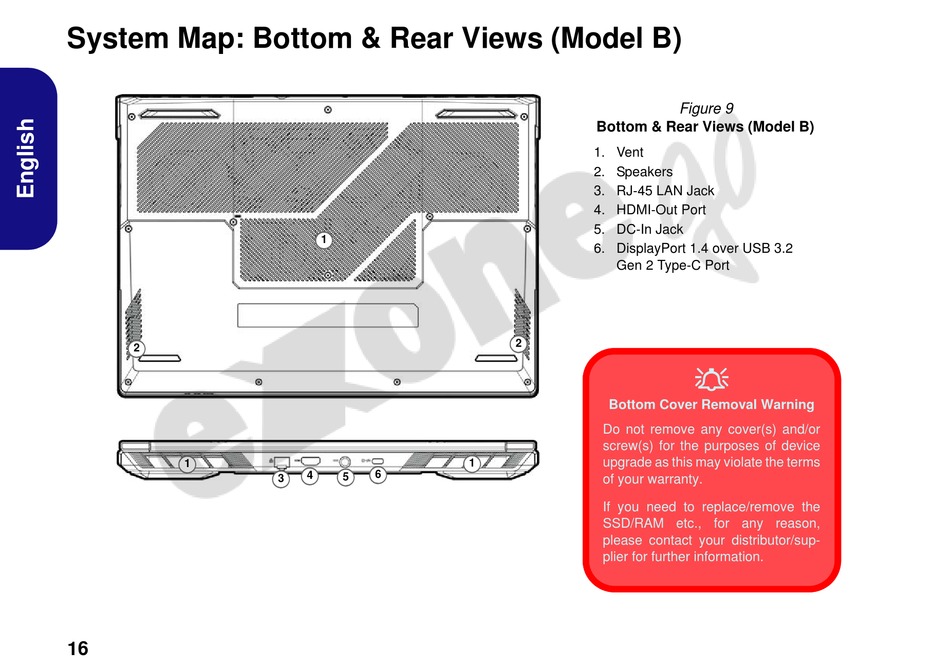

Bottom & Rear Views (Model B)
1. Vent
2. Speakers
3. RJ-45 LAN Jack
4. HDMI-Out Port
5. DC-In Jack
6. DisplayPort 1.4 over USB 3.2
Gen 2 Type-C Port
2
Bottom Cover Removal Warning
Do not remove any cover(s) and/or
screw(s) for the purposes of device
upgrade as this may violate the terms
1
of your warranty.
If you need to replace/remove the
SSD/RAM etc., for any reason,
please contact your distributor/sup-
plier for further information.
Figure 9

