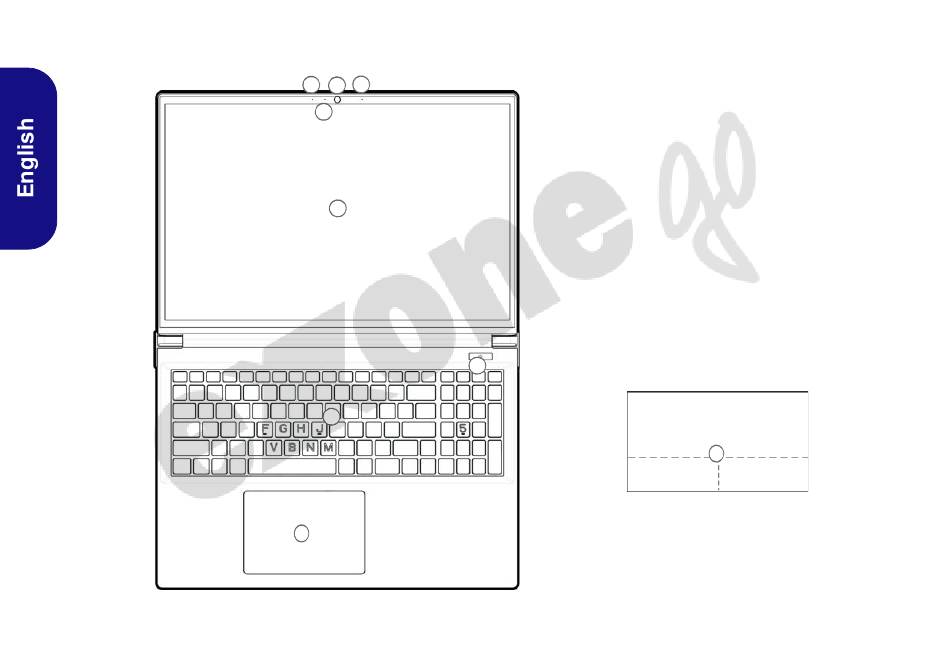

System Map: Front View with Display Open (Model B)
8
3 3
1
2
4
16" (40.64cm)
6
7
Front View with Display Open
1. Webcam
2. *Webcam LED
*When the webcam is in use, the
LED will be illuminated.
3. Built-In Array Microphone
4. Display
5. Power Button
6. Keyboard
7. Touchpad & Buttons
5
Note that the Touchpad and Buttons
valid operational area is that indicated
within the dotted lines above.
Figure 3
7
