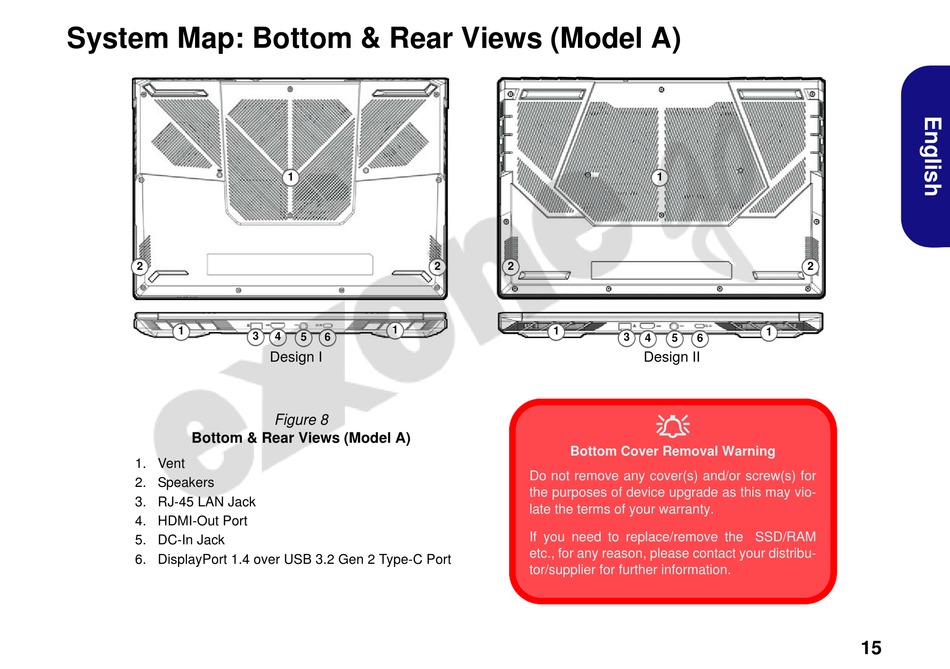

System Map: Bottom & Rear Views (Model A)
2
1
Bottom & Rear Views (Model A)
1. Vent
2. Speakers
3. RJ-45 LAN Jack
4. HDMI-Out Port
5. DC-In Jack
6. DisplayPort 1.4 over USB 3.2 Gen 2 Type-C Port
1
1
3 4 6
5
Design I
Figure 8
2 2
1
Bottom Cover Removal Warning
Do not remove any cover(s) and/or screw(s) for
the purposes of device upgrade as this may vio-
late the terms of your warranty.
If you need to replace/remove the SSD/RAM
etc., for any reason, please contact your distribu-
tor/supplier for further information.
1
1
3
4 5 6
Design II

2
15
