6 System connection
Note: Before installation, please ensure the device is disconnected from the power source.
Steps to install the device:
1. Attach both mounting brackets to the housing
using the enclosed screws.
2. Mount brackets on a fitting surface using
suitable screws (not included in the scope
of delivery).

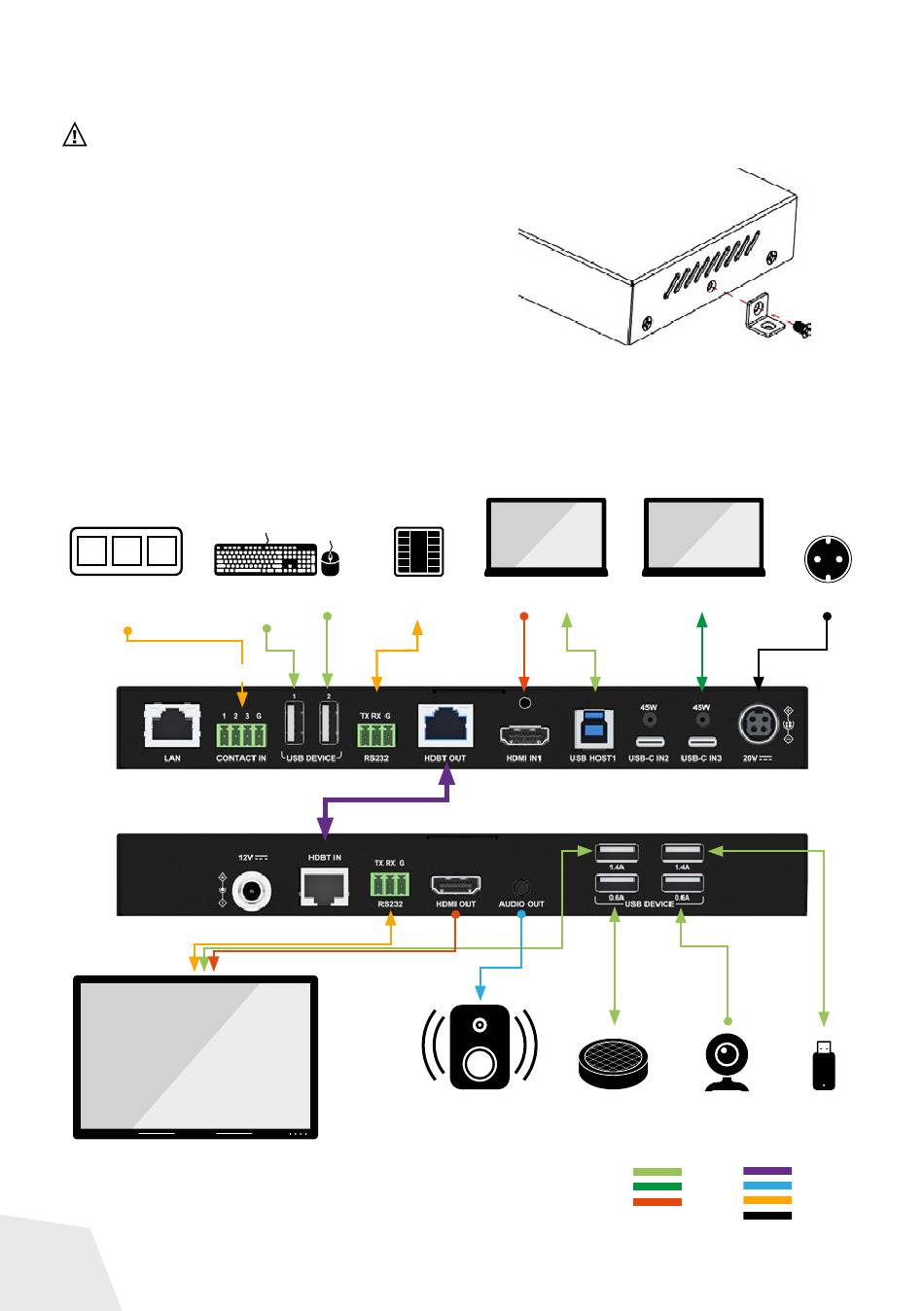

Block diagram:
The block diagram below shows a typical application.
IN1 IN2 IN3
external toggle
buttons keyboard
Transmitter
(e.g. 7488000096)
Receiver
touchdisplay
EN
mouse media
control
laptop
loudspeaker speakerphone
USB-A
USB-C
HDMI
laptop power
webcam USB stick
CATx
audio
RS232
power
