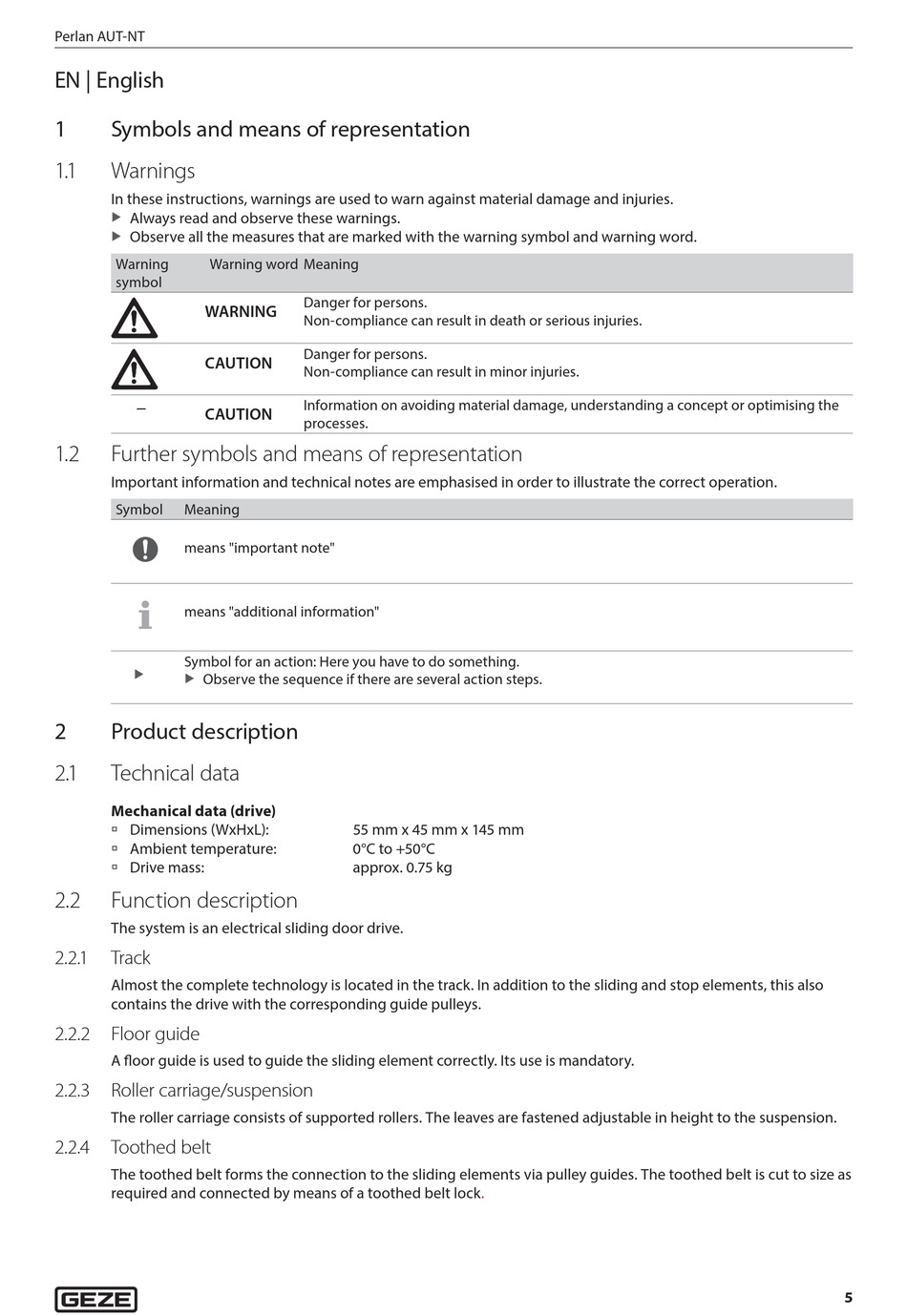

Perlan AUT-NT
EN | English
1 Symbols and means of representation
1. 1 Warnings
In these instructions, warnings are used to warn against material damage and injuries.
X
Always read and observe these warnings.
X
Observe all the measures that are marked with the warning symbol and warning word.
Warning Warning word Meaning
symbol
WARNING
CAUTION
–
CAUTION
1.2 Further symbols and means of representation
Important information and technical notes are emphasised in order to illustrate the correct operation.
Symbol Meaning
means "important note"
means "additional information"
Symbol for an action: Here you have to do something.
X
X
Observe the sequence if there are several action steps.
2 Product description
2. 1 Technical data
Mechanical data (drive)
à Dimensions (WxHxL):
à Ambient temperature:
à Drive mass:
2.2 Function description
The system is an electrical sliding door drive.
2.2. 1 Track
Almost the complete technology is located in the track. In addition to the sliding and stop elements, this also
contains the drive with the corresponding guide pulleys.
2.2.2 Floor guide
A floor guide is used to guide the sliding element correctly. Its use is mandatory.
2.2.3 Roller carriage/suspension
The roller carriage consists of supported rollers. The leaves are fastened adjustable in height to the suspension.
2.2.4 Toothed belt
The toothed belt forms the connection to the sliding elements via pulley guides. The toothed belt is cut to size as
required and connected by means of a toothed belt
Danger for persons.
Non-compliance can result in death or serious injuries.
Danger for persons.
Non-compliance can result in minor injuries.
Information on avoiding material damage, understanding a concept or optimising the
processes.
55 mm x 45 mm x 145 mm
0°C to +50°C
approx. 0.75 kg
lock.
