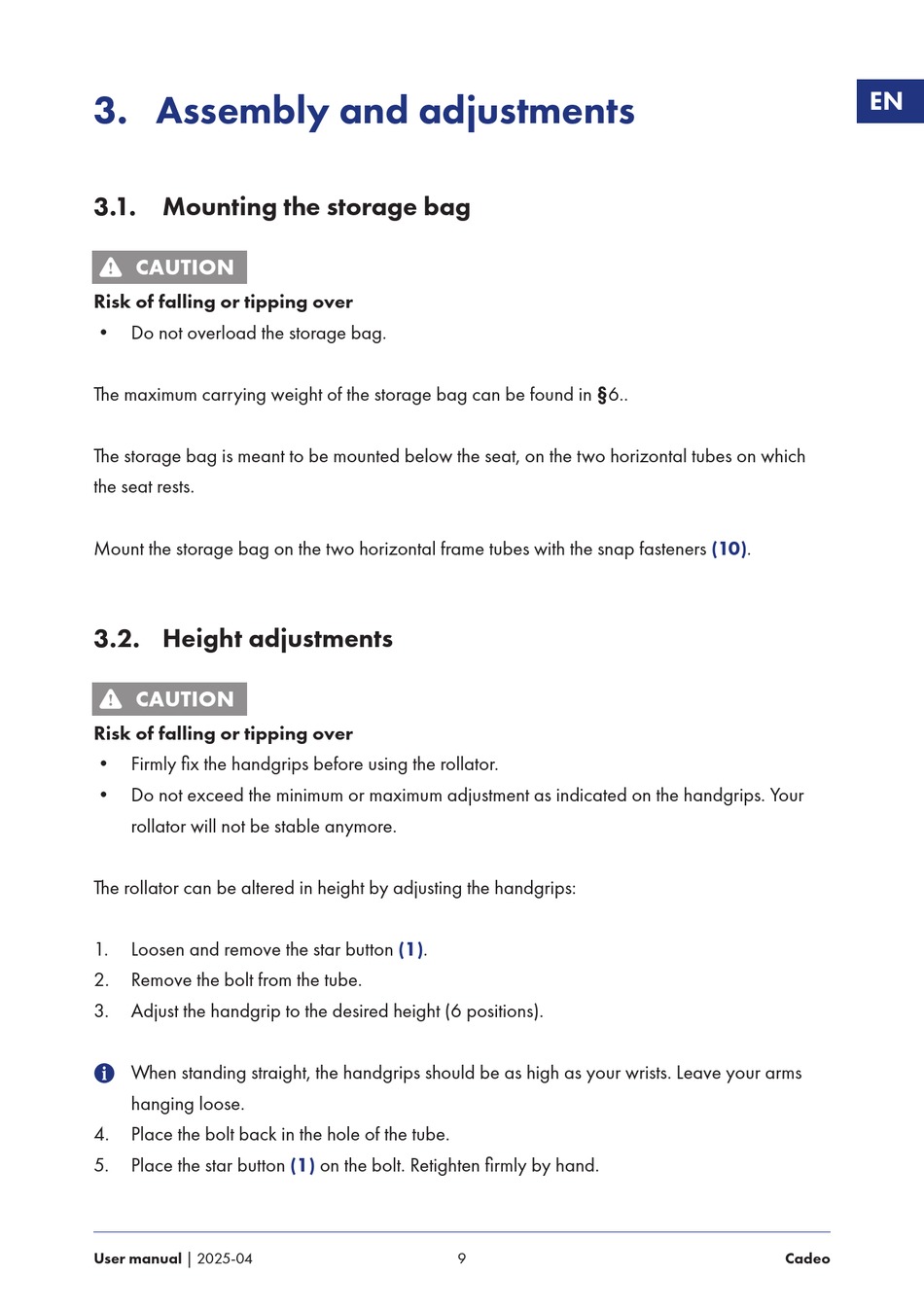

Vermeiren Cadeo Gebrauchsanweisung Seite 9

3. Assembly and adjustments
3.1. Mounting the storage bag
CAUTION
6
Risk of falling or tipping over
• Do not overload the storage bag.
The maximum carrying weight of the storage bag can be found in §6..
The storage bag is meant to be mounted below the seat, on the two horizontal tubes on which
the seat rests.
Mount the storage bag on the two horizontal frame tubes with the snap fasteners (10).
3.2. Height adjustments
CAUTION
6
Risk of falling or tipping over
• Firmly fix the handgrips before using the rollator.
• Do not exceed the minimum or maximum adjustment as indicated on the handgrips. Your
rollator will not be stable anymore.
The rollator can be altered in height by adjusting the handgrips:
1. Loosen and remove the star button (1).
2. Remove the bolt from the tube.
3. Adjust the handgrip to the desired height (6 positions).
When standing straight, the handgrips should be as high as your wrists. Leave your arms
4
hanging loose.
4. Place the bolt back in the hole of the tube.
5. Place the star button
User manual | 2025-04
(1) on the bolt. Retighten firmly by hand.
9
EN
Cadeo
