I. Mounting exhaust pipe to casement window
Mount the adapter for window slide plate to the exhaust pipe and place outside the window to exhaust the
hot air.

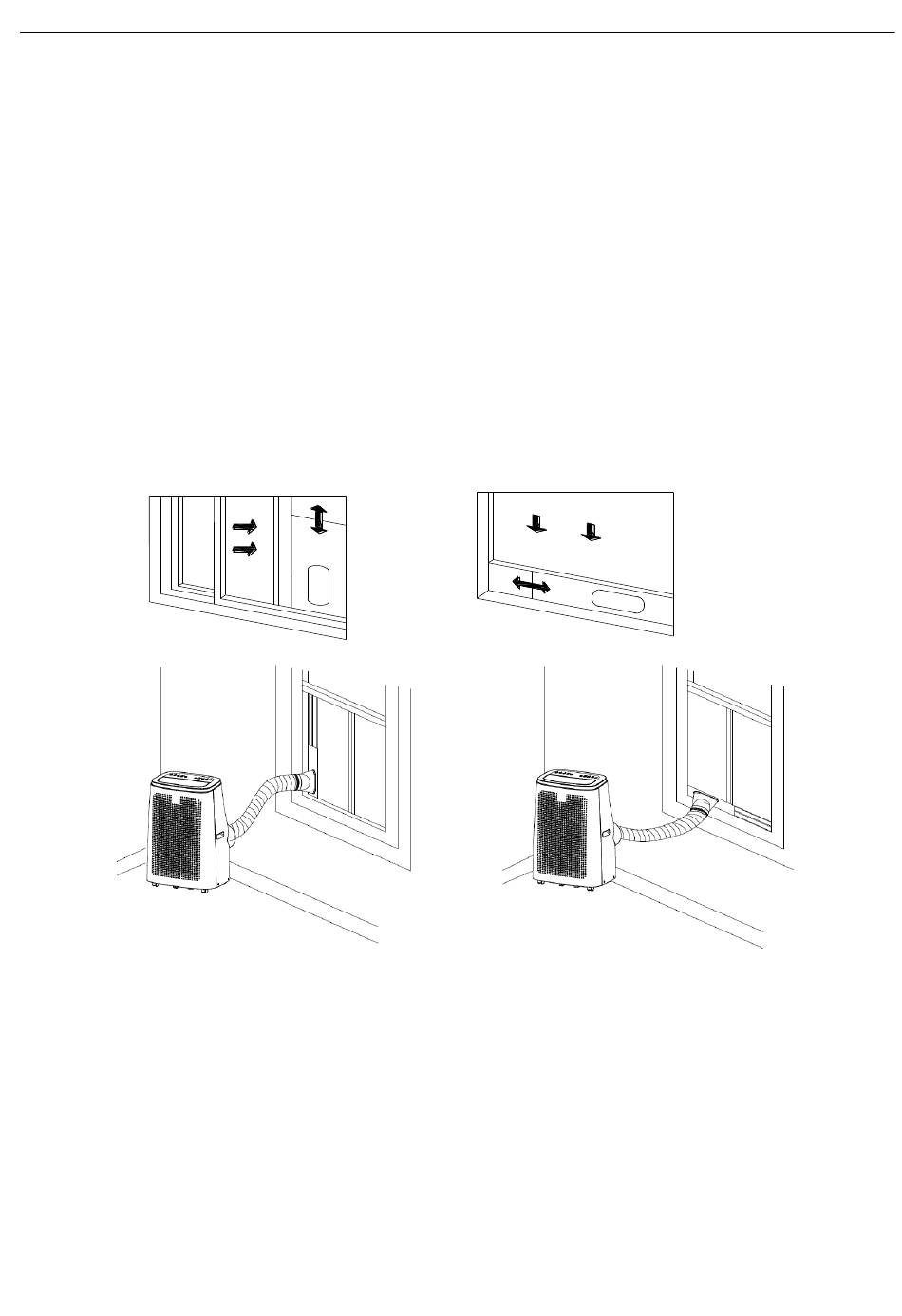

II. Mounting air exhaust pipe to sliding windows (Fig. 1)
1. Insert the window slide plate inside of the side window frame and slide it in as much as you can.
2. Lock the window slide plate with the help of the wing nut.
3. Insert the adapter and the exhaust pipe into the window slide plate.
TIP: Set the window slide plate vertically with the hole in the lower part to enable correct exhaust pipe
installation.
III.
Mounting exhaust pipe to double-hung window (Fig. 2)
1. Insert the window slide plate inside of the bottom window frame and slide it in as much as you can.
2. Lock the window slide plate with the help of the wing nut.
3. Insert the adapter and the exhaust pipe into the window slide plate.
Fig. 1
IV.
Mounting exhaust pipe to wall accessory
1. Drill an appropriate hole in an outside wall to fit the wall accessory.
2. Fit the wall accessory into the hole.
3. Insert the adapter for wall accessory into the exhaust pipe.
4. Mount the adapter and the exhaust pipe to the wall accessory.
TIP: When the exhaust pipe is not mounted, the drilled hole can be closed with the blanking lid.
