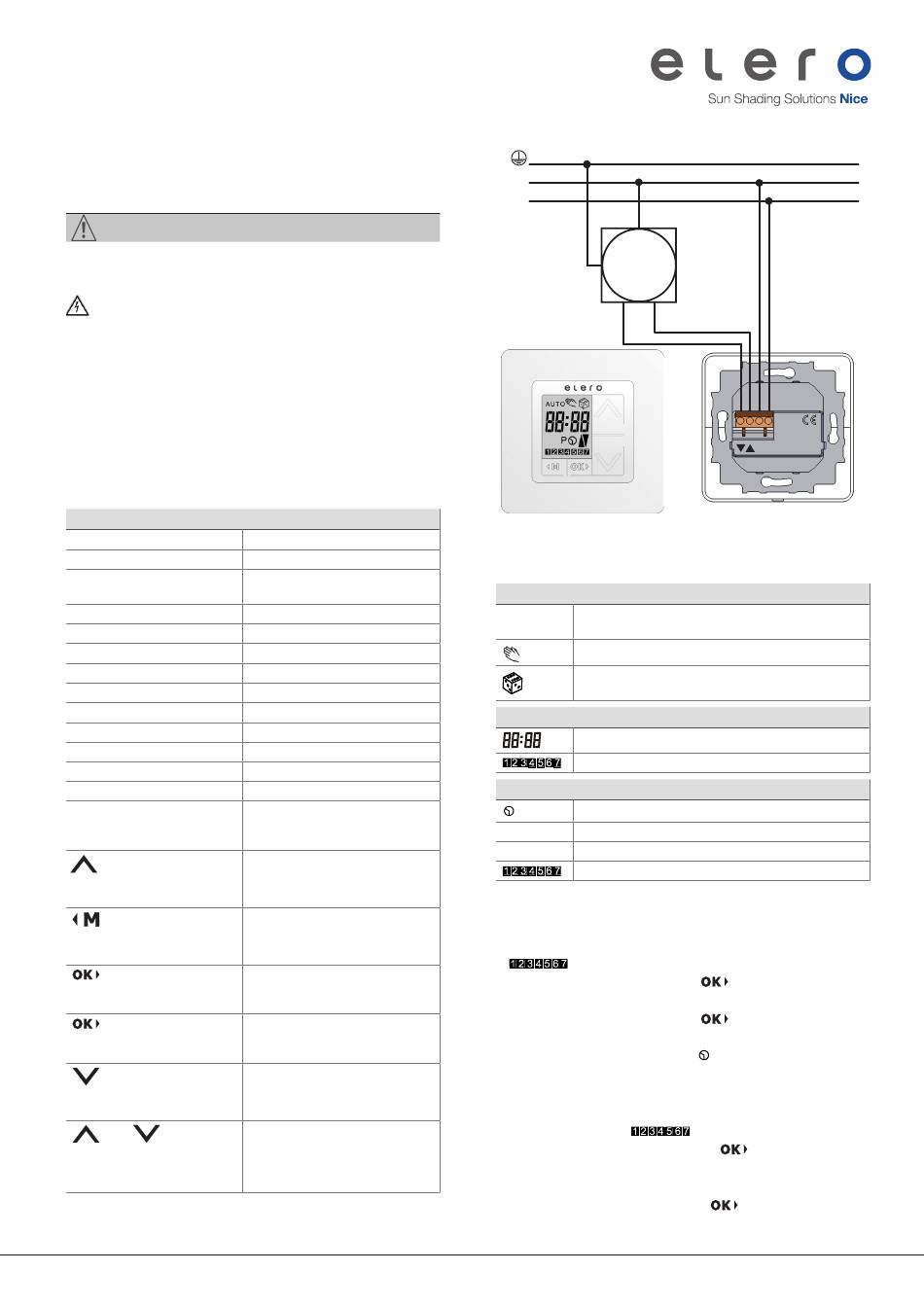

elero TimeTec Kurzanleitung Seite 2

TimeTec
286700001
Rolling shutter and blind control
Safety guidelines
WARNING
Risk of injury due to electrical current! Injury or death possible non-
observance of safety guidelines.
• Perform connection, installation, mounting only by qualified
electrician in accordance with DIN VDE 0100.
• Observe all regulations (DIN EN 60335-2-97, household applian-
ces and roller shutters), technical data as well as applicable rules
of conduct.
General
• Please keep this manual.
• Please also refer to the manual of the motor attached to this cont-
roller. Double check and, if required, correct the end limits.
• Please take care of environmentally compatible disposal.
Technical data, button-function
Power supply [V]
Frequency [Hz]
Outputs
Switching capacity [A]
Ambient temperature [°C]
Running time
Switching delay
Housing
Program
Accuracy
Operating modes
Power reserve
Memory places
Factory defaults
Switching program UP/DOWN
Time
Pressing button UP
Pressing the MENU Button
Pressing the OK Button
during Operating mode
Pressing the OK Button
during Setting mode
Pressing button DOWN
resp.
Pressing button UP
respectively button DOWN
during operating mode
elero GmbH
Maybachstr. 30
Antriebstechnik
73278 Schlierbach
230 V (± 10%)
50
2 NO relays
(NOT potential-free)
5 (by cos φ =1)
-5 to 45
2 min 30 s
at least 0,5 s
flush-mounted
Week clock
+/- 1,5 s/day (at 20 °C)
Automatic, Manually, Random
approx. 24 h (at 20 °C)
7 x UP / 7 x DOWN
07:00 / 21:00
12:00
UP-command 2.5 min or
STOP by moving motor
Setting mode will be activated
respectively left and a moving
motor will be stopped immediately
Changing operating mode or
STOP by moving motor
To confirm the selection or
the entered data
DOWN-command 2.5 min or
STOP by moving motor
Adjustment of time, timer clock for
up and down and selection of a
day of the week (individual, block,
complete week).
Fon: +49 7021 9539-0
Fax: +49 7021 9539-212
PE
N
L
COM
M
AB
DOWN
Operating modes and symbols
By pressing the Button OK► the mode-functions will be switched
over to the next operating mode.
Operating modes
Automatic mode
AUTO
(programmed shifting times are activated)
Manual mode (manual operating)
Random mode (programmed shifting time shifts
casually from 1 to 31 minutes backward)
Display in operating mode
Time display
Display of the current day
Display in automatic mode
Time setting
Switching time setting
P
Drive direction of the switching time settings
▲▼
Selection and setting days (blocks)
Programming / Settings
Time and day:
• Adjust and select with the buttons▲ or ▼ the day of the week
.
• Confirm the setting with the button
• Adjust and select with the buttons ▲ or ▼ the day time.
• Confirm the setting with the button
Timer setting:
• Press the M button: Clock symbol
• Press the ▲ or ▼ buttons: Symbol P is flashing. Press OK.
• Select with the ▲ or ▼ buttons the way you want to set the pro-
gram: a) Each day singulary, b) block wise (Mo bis Fr und Sa bis
Su, c) complete week
• Confirm your selection with the button
• Adjust with the ▲ or ▼ buttons the opening time(s) ▲ and clo-
sing time(s) ▼.
• Confirm each setting with the button
• To deactivate a time command for UP or DOWN, the display
needs to show --:-- in the time setting menu.
We reserve the right to make technical changes
info.elero@niceforyou.com
www.elero.com
AUF
UP
N L
.
.
is flashing.
.
.
.
182060001_EN_0325
