during use and wear appropriate protective
equipment, including eye protection.
• One person must control work process
and tool operation. To reduce the risk of
injury, only the operator should be in the
area when the tool is running.
• Only use RIDGID
propriate RIDGID or RIDGID approved
Pressing attachments. Other uses or
modifying the Press Tools for other applica-
tions may damage the press tool, damage
the attachments and/or cause personal
injury.
• Use proper tool, attachment and fitting
combinations. Improper combinations
can result in an incomplete joint, which
increase the risk of leaks, equipment dam-
age and injury.
• Do not modify tool. Modifying the tool in
any manner may result in personal injury
and voidance of the tool's warranty.
• Before operating a RIDGID
read and understand:
– This operator's manual
– The instructions for any attachments
being used
– The battery/charger manual
– The fitting manufacturer's installation
instructions
– The instructions for any other equipment
or material used with this tool
Failure to follow all instructions and warn-
ings may result in property damage and/
or serious injury.
RIDGID Contact
Information
If you have any question concerning this
RIDGID product:
®
– Contact your local RIDGID distributor.
– Visit RIDGID.com to find your local
RIDGID contact point.
– Contact Ridge Tool Technical Service
Depart ment at ProToolsTechService@
Emerson.com or in the U.S. and Canada
call 844-789-8665.
Description
The RIDGID RP 251 Press Tool, when used
®
with appropriate attachments, is designed
to mechanically press fittings onto tubing to
999-995-443.09_REV. A
Press Tools with ap-
®
Press Tool,
®
RP 251 Press Tool
create a water-tight and permanent seal, such
as for plumbing, heating, air conditioning, and
refrigeration applications.
When the trigger/run switch on the press
tool is depressed, an internal electric motor
powers a hydraulic pump which sends fluid
into the cylinder of the tool, moving the ram
forward and applying force to the attachment,
pressing the fitting. The press cycle takes
approximately 4 seconds. Once the cycle
begins to deform a fitting, it will automatically
continue until completion, even if the trigger/
run switch is released.
The tool includes a second operating mode
("Control Mode") that can be turned on using
the RIDGID Link App. Control Mode allows
the fitting to be engaged prior to pressing to
allow confirmation of proper alignment of the
attachment, fitting and tube.
The Tool Status Lights indicate things such
as tool status, battery status, maintenance
required, or improper temperature. A work
light turns on when the trigger/run switch is
depressed to power up the tool and helps
illuminate the work area. The tool switches
OFF after 120 seconds of inactivity.
The head can be rotated 360° for better
access in tight spaces. The tool is supplied
with fabric loops that can be used with appro-
priate attachments such as shoulder straps
or tie off lines.
The press tool include wireless technology to
allow connection to smart phones and tablets.
See "RIDGID Link App Connection (Wireless
Communication)" section for details.
Tool Status
Jaw
Scissor
Side
Style
Plate Retract
Jaw Set
Button
LED
Attachment
Work
Mounting
light
Pin
Ring

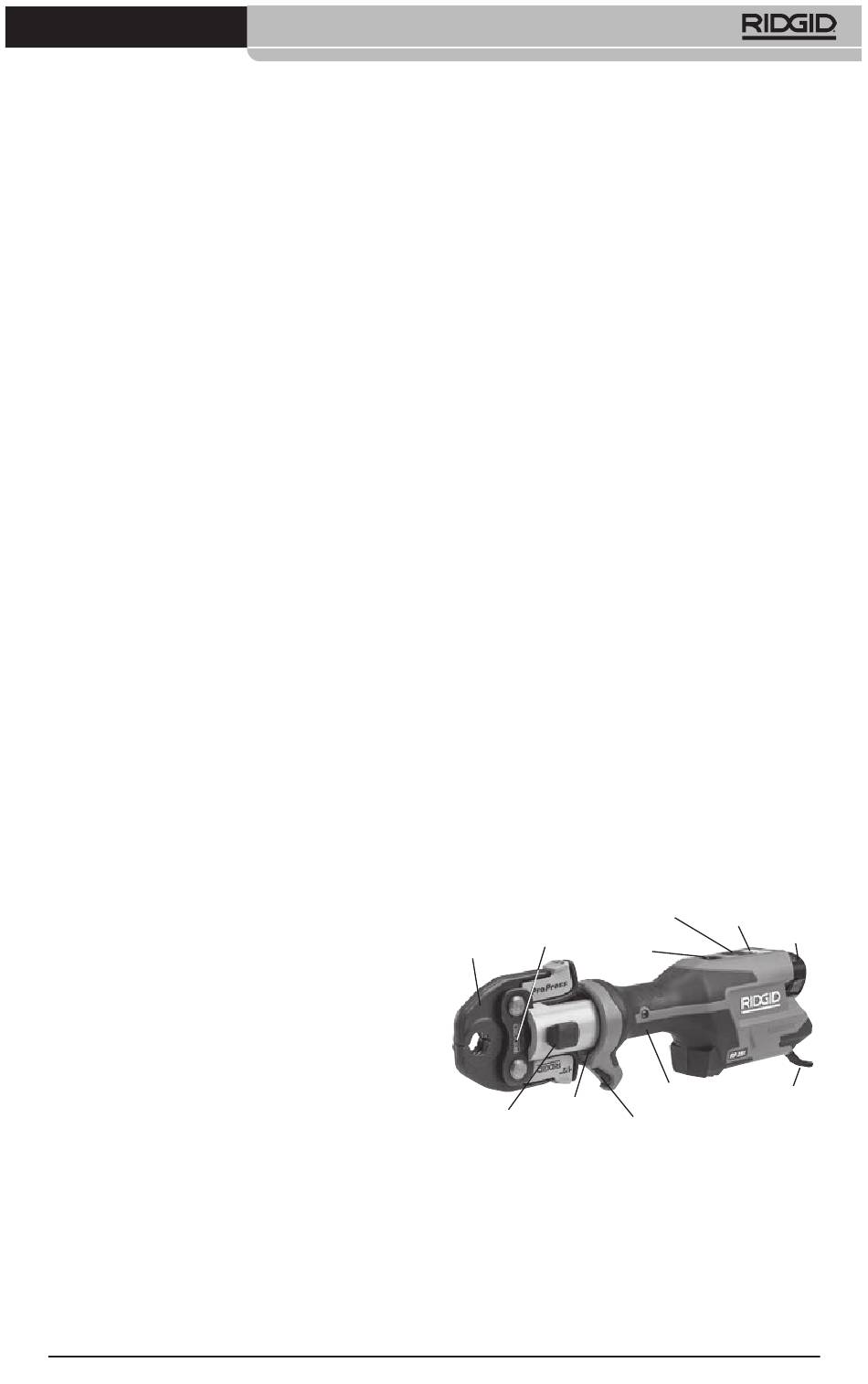

Figure 1A – RIDGID RP 251 Press Tool
Warning
Light Label
Battery
Handle
Fabric
Trigger/
Run
Switch
Loop
5 5
