RP 251 Press Tool

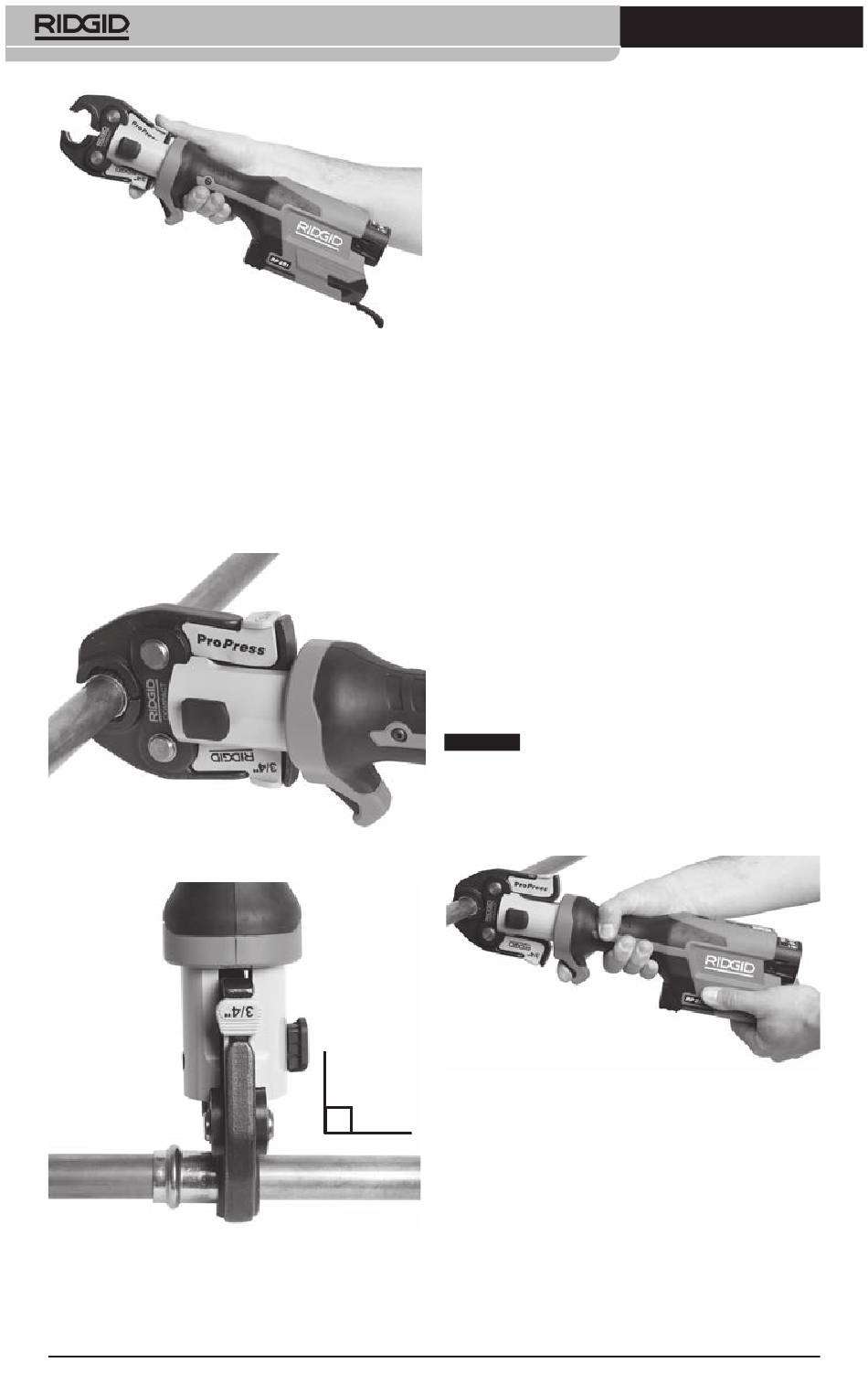

Figure 6 – Opening Jaw with One Hand
2. Place open jaws around fitting (Figure
7). Properly align jaw press profile with
contour of the fitting as specified in Fitting
Manufacturer's Installation Instructions.
Release jaw arms to close jaws around
fitting. Do not hang jaw set from fitting.
Tool could unexpectedly drop and cause
serious injury or death.
Figure 7 – Placing Scissor-Style Jaws Around
Fitting
Figure 8 – Jaws Square to Fitting
3. Confirm jaw is appropriately placed and
square to fitting (Figure 8). Keep fingers
and hands away from the jaws to avoid
10
crushing injuries in jaws or between jaws
and surroundings.
If the tool work light is OFF, power up the
tool by depressing and releasing the tool
switch one time. The tool is now ready to
make a press.
Normal Mode: Depress the trigger/run
switch (Figure 9). Once the tool cycle
begins and the rollers contact the jaw
arms, the tool will lock-on and auto-
matically complete the cycle. Releasing
the switch will not stop the tool once it
has locked on. This assures consistent,
repeatable press connection integrity.
Control Mode: Depress the trigger/run
switch (Figure 9). The jaws will engage
the fitting but the press connection is
not made. Make adjustments as neces-
sary. Press the run switch again, the tool
will lock-on and automatically complete
the cycle. Releasing the switch will not
stop the tool once it has locked on. This
assures consistent, repeatable press con-
nection integrity.
If tool must be removed before a con-
nection is completed, release the trigger/
run switch, depress the retract button
(Figures 1A &1B).
Any time retract button is depressed,
NOTICE
press is NOT complete and the connection
must be pressed again to ensure completion.
If the tool malfunctions during operation, use
this procedure.
Figure 9 – Pressing the Fitting
4. Release the trigger/run switch.
5. Squeeze jaw arms to open jaws.
6. Remove jaw from fitting. Avoid sharp
edges that may have formed on fitting
during pressing operation.
7 . When operation is complete, remove bat-
tery from tool.
999-995-443.09_REV. A
