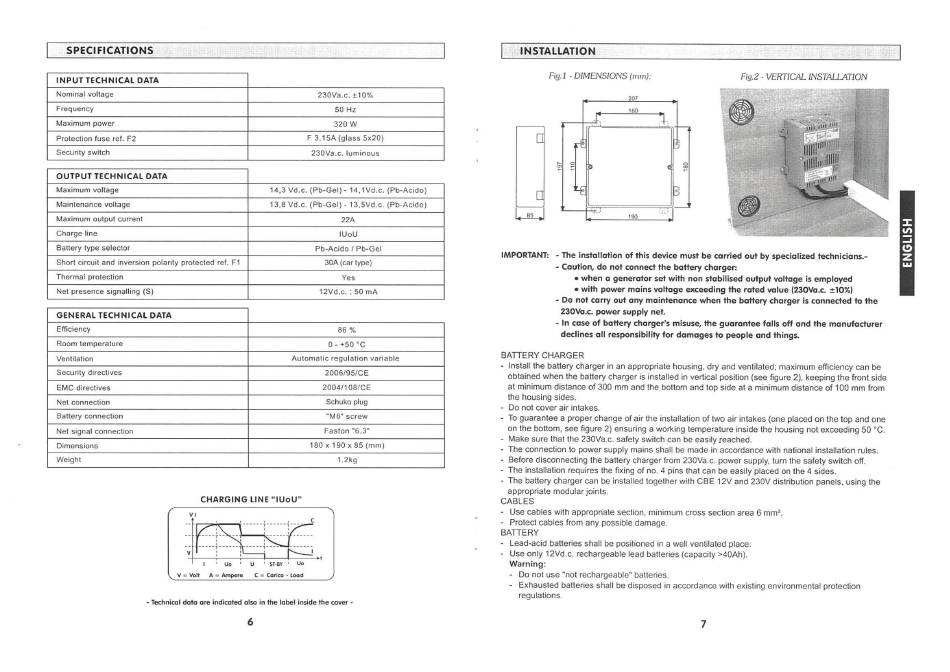

SPECIFICATIONS
INPUT TECHNICAL DATA
Nominal voltage
Frequency
Maximum power
Protection fuse ref. F2
Security switch
OUTPUT TECHNICAL DATA
Maximum voltage
Maintenance voltage
Maximum output current
Charge line
Battery type selector
Short circuit and inversion polarity protected ref. Fl
Thermal protection
Net presence signalling (S)
GENERAL TECHNICAL DATA
Efficiency
Room temperature
Ventilation
Security directives
EMC directives
Net connection
Battery connection
Net signal connection
Dimensions
Weight
CHARGING
V Volt A = Amp«e
- Technical data are indicated
230Va.c.
50 Hz
320 w
F 3.15A (glass 5x20)
230Va.c. luminous
14.3 Vd.c. (Pb-Gel) - 14.1Vd.c. (Pb-Acido)
13.8 Vd.c. (Pb-Gel) - 13,5Vd.c. (Pb-Acido)
22A
IUoU
Pb-Acido / Pb-Gel
30A (car type)
Yes
12Vd.c. ; 50 mA
86 %
o +50 oc
Automatic regulation variable
2006/95/CE
2004/108/CE
Schuko plug
"M6" screw
Faston "6.3"
180 x 190 x 85 (mm)
1.2kg
LINE "IUOU"
IJO
U ST_BY
C = Carico - Load
also in the label inside the cover -
6
INSTALLATION
Fig.l - DIMENSIONS (mm):
85
IMPORTANT. • - The installation of this device must be carried out by specialized technicians.-
- Caution, do not connect the battery charger:
• when a generator set with non stabilised output voltage is employed
• with power mains voltage exceeding the rated value (230Va.c.
- DO not carry out any maintenance when the battery charger is connected to the
230Va.c. power supply net.
- In case of battery charger's misuse, the guarantee falls off and the manufacturer
declines all responsibility for damages to people and things.
BATTERY CHARGER
- Installthe batterychargerin an appropriatehousing.dry andventilated;maximumefficiencycan be
obtained when the battery charger is installed in vertical position (see figure 2), keeping the front side
at minimum distance of 300 mm and the bottom and top side at a minimum distance of 100 mm from
the housing sides.
- Do not cover air intakes.
To guarantee a proper change of air the installation of two air intakes (one placed on the top and one
on the bottom,see figure2) ensuringa workingtemperatureinsidethe housingnot exceeding50 oc.
- Make sure that the 230Va.c. safety switch can be easily reached.
- The connection to power supply mains shall be made in accordance with national installation rules.
- Before disconnecting the battery charger from 230Va.c. power supply, turn the safety switch off.
- The installation requires the fixing of no. 4 pins that can be easily placed on the 4 sides.
- The batterychargercan be installedtogetherwith CBE 12Vand230V distributionpanels,using the
appropriate modular joints.
CABLES
- Use cables with appropriate section. minimum cross section area 6 mm2.
- Protect cables from any possible damage.
BATTERY
- Lead-acid batteries shall be positioned in a well ventilated place.
- Use only 12Vd.c. rechargeable lead batteries (capacity >40Ah).
Warning:
- Do not use "not rechargeable" batteries.
- Exhausted batteries shall be disposed in accordance with existing environmental protection
regulations.
Fig.2 - VERTICAL INSTALLATION
7
