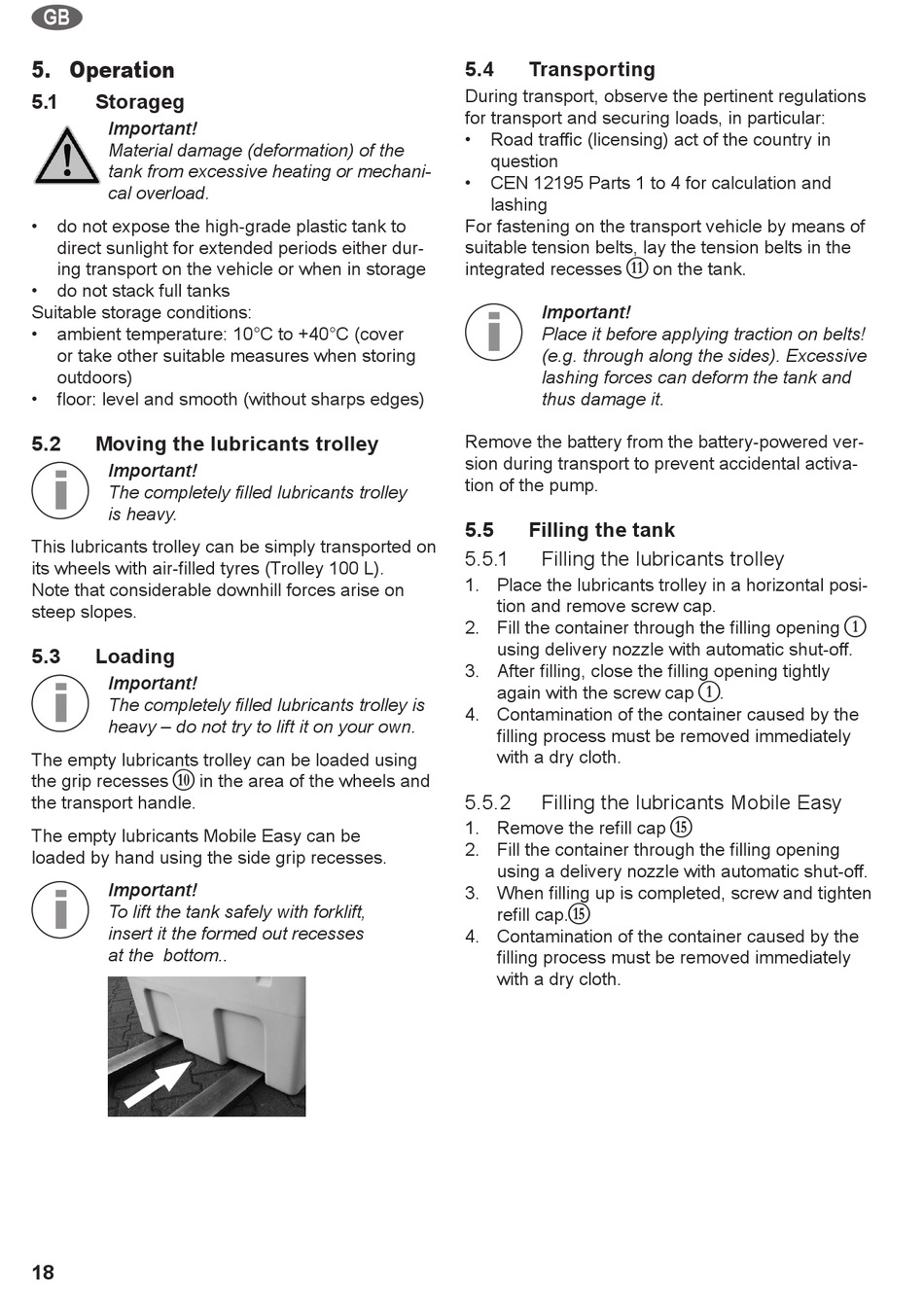

CEMO 60l Betriebsanleitung Seite 18

GB
5. Operation
5.1 Storageg
Important!
Material damage (deformation) of the
tank from excessive heating or mechani-
cal overload.
• do not expose the high-grade plastic tank to
direct sunlight for extended periods either dur-
ing transport on the vehicle or when in storage
• do not stack full tanks
Suitable storage conditions:
• ambient temperature: 10°C to +40°C (cover
or take other suitable measures when storing
outdoors)
• floor: level and smooth (without sharps edges)
5.2 Moving the lubricants trolley
i
Important!
The completely filled lubricants trolley
is heavy.
This lubricants trolley can be simply transported on
its wheels with air-filled tyres (Trolley 100 L).
Note that considerable downhill forces arise on
steep slopes.
5.3 Loading
i
Important!
The completely filled lubricants trolley is
heavy – do not try to lift it on your own.
The empty lubricants trolley can be loaded using
the grip recesses K in the area of the wheels and
the transport handle.
The empty lubricants Mobile Easy can be
loaded by hand using the side grip recesses.
i
Important!
To lift the tank safely with forklift,
insert it the formed out recesses
at the bottom..
18
5.4 Transporting
During transport, observe the pertinent regulations
for transport and securing loads, in particular:
• Road traffic (licensing) act of the country in
question
• CEN 12195 Parts 1 to 4 for calculation and
lashing
For fastening on the transport vehicle by means of
suitable tension belts, lay the tension belts in the
integrated recesses L on the tank.
i
Important!
Place it before applying traction on belts!
(e.g. through along the sides). Excessive
lashing forces can deform the tank and
thus damage it.
Remove the battery from the battery-powered ver-
sion during transport to prevent accidental activa-
tion of the pump.
5.5 Filling the tank
5.5.1 Filling the lubricants trolley
1. Place the lubricants trolley in a horizontal posi-
tion and remove screw cap.
2. Fill the container through the filling opening B
using delivery nozzle with automatic shut-off.
3. After filling, close the filling opening tightly
again with the screw cap B.
4. Contamination of the container caused by the
filling process must be removed immediately
with a dry cloth.
5.5.2 Filling the lubricants Mobile Easy
1. Remove the refill cap P
2. Fill the container through the filling opening
using a delivery nozzle with automatic shut-off.
3. When filling up is completed, screw and tighten
refill cap.P
4. Contamination of the container caused by the
filling process must be removed immediately
with a dry cloth.
