Memory card
6.3
Installation
You can operate the Homematic IP
Combination Signalling Device as a
free-standing unit or you can fasten it
to the wall using the screws and do-
wels supplied.
To fasten the Homematic IP Combina-
tion Signalling Device to a wall, pro-
ceed as follows:
• Select the desired installation loca-
tion on a wall.
Ensure that there are no electricity
cables or pipes in the wall at this
location!
• Use a pen to mark the positions of
the two drill holes for the screw
brackets (D) 80 mm apart on the
wall.

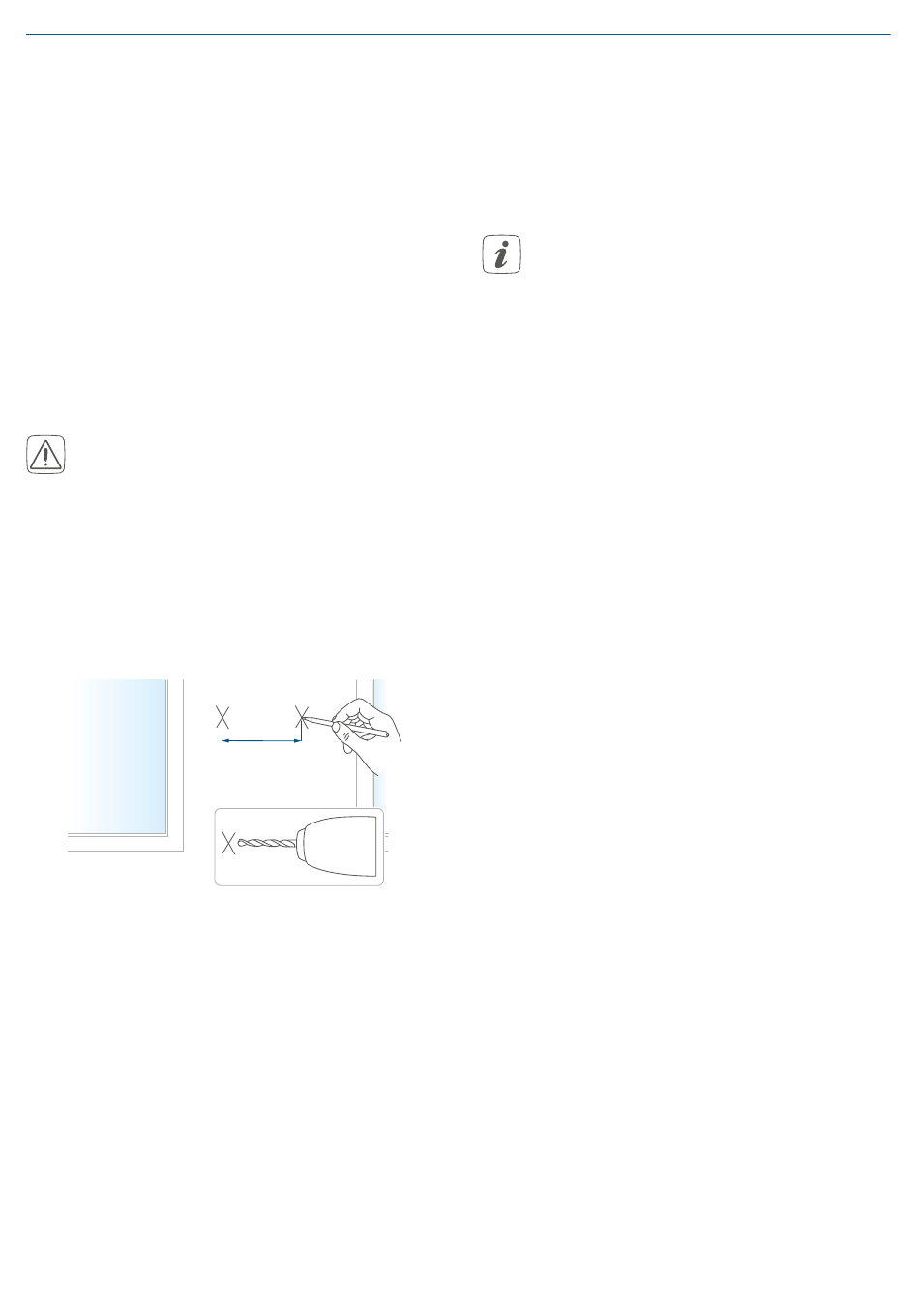

Figure 3
• Use an appropriate drill to make
the 5 mm holes as illustrated.
• Insert the plugs in the holes.
• Turn the screws into the plugs so
that they protrude from the wall by
approx. 5.5 mm.
• Hang the device using the bra-
ckets on the back behind the screw
heads.
80 mm
2x Ø 5 mm
7
Memory card
The voice texts and signal tones
are stored on a micro SD card that
is inserted into the Homematic IP
Combination Signalling Device.
The micro SD card must not be
inserted or removed while the
device is in operation. Remove a
battery or pull out the mains cable
first.
8 Changing the batteries
If the error code for empty batteries
(see „9.4 Error codes and flashing se-
quences" on page 21)
replaced the old batteries with three
LR14/Baby/C batteries. Pay attention to
the correct battery polarity.
To insert new batteries, proceed as
follows:
• Turn the device on its back.
• Open the battery compartment (F)
by pulling the latch back slightly
and remove the battery compart-
ment cover (I).
• Remove the empty batteries from
the battery compartment (F).
• Insert three new LR14/Baby/C
batteries into the battery com-
partment, observing the polarity
shown.
• Close the battery compartment (F)
again.
Once the batteries have been inserted,
the Homematic IP Combination Signal-
ling Device first performs a self-test for
approx. 2 seconds.
Afterwards, initialisation is carried out.
appears,
19
