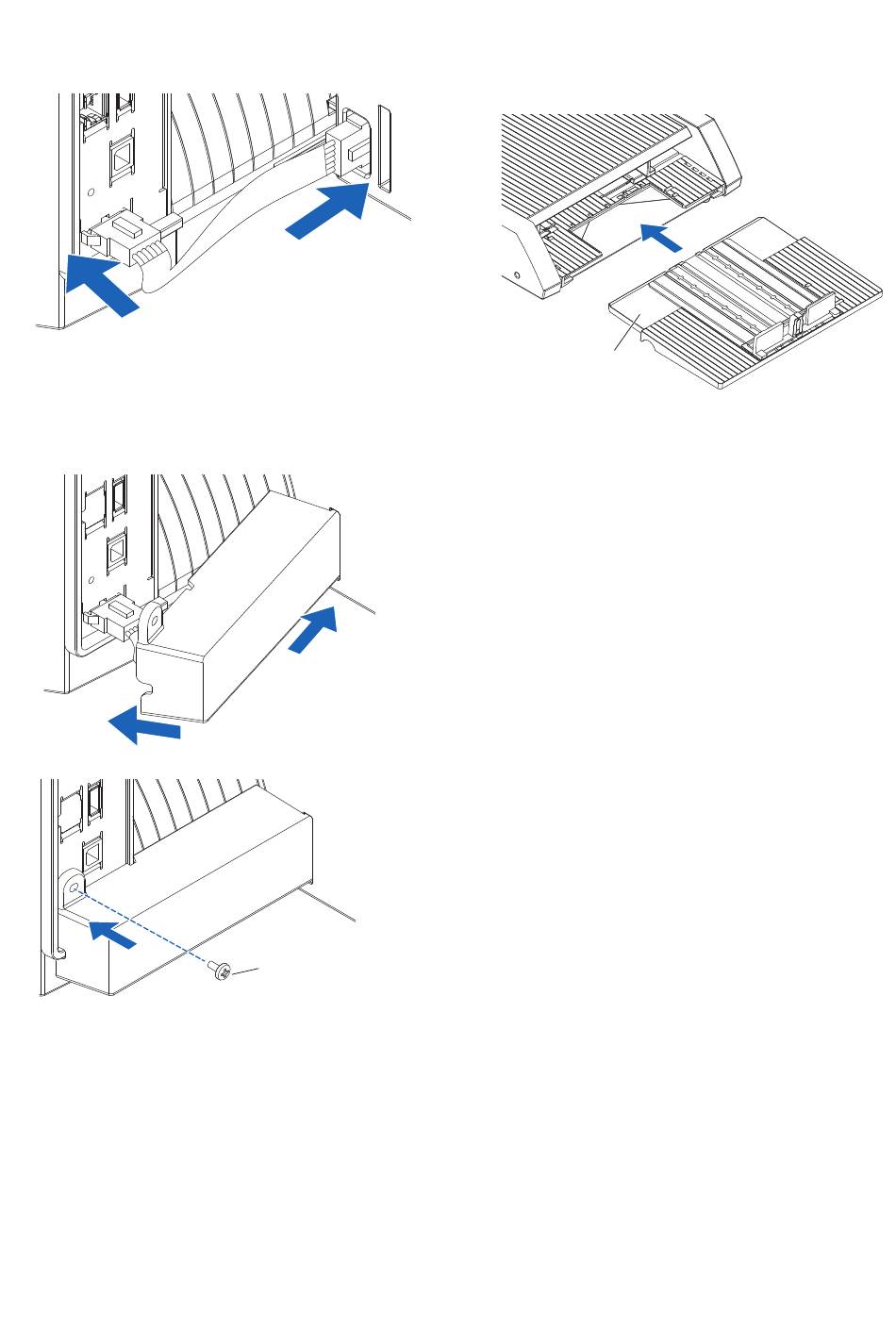

3. Attach the Connection cable.
* The shapes of both connectors on the Connector cable
are same, it can be connected to both the CE8000-40
and the ASF1-30.
4. Attach the Cable cover.
Insert the Cable cover into the notch on the ASF1-30 and
fixed it to the CE8000-40 using the Connection cover
fixing screw.
Step 1
Step 2
Connection cover
fixing screw
5. Insert the Extension tray.
When inserting the Extension tray, make sure there is
nothing under the Extension tray.
If there is anything under the Extension tray, the media will
not be feed properly.
Extension tray
After checking these, the setup is complete.
