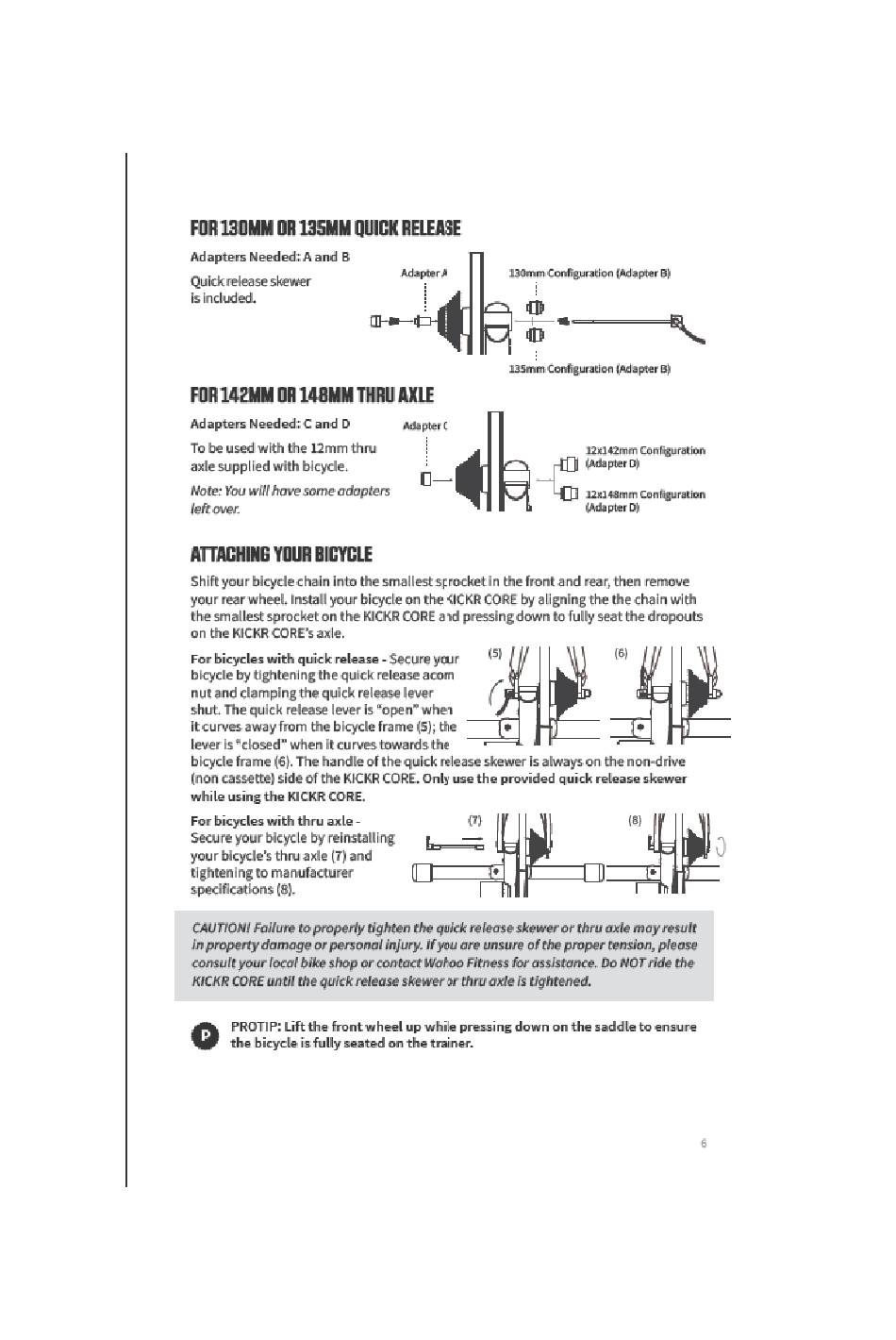

Wahoo KICKR core Schnellstartanleitung Seite 7

135" QUICK RELEASE
Adapters Needed: A and 8
Quick release skewer
is included.
FOR142M" OR148M" THRUAXLE
Adapters Needed: C and D
To be used with the 12mm thru
supplied with bicycle.
Nate: wilf hove some adopters
leftover.
ATTACHING BICYCLE
Shift your bicycle chain into the smallest sprocket in the front and rear, then remove
your rearwheel. Install your bicycle on the KICKRCOREby aligning the the chain with
the smallest sprocket on the KICKRCOREand pressing down to fully seat the dropouts
on the KICKR CORE's axle
For bicycles with quick release - Secureyour
bicycle by tightening the quick release acorn
nut and clamping the quick release lever
shut. The quick releaselever is "open' when
it curves away from the bicycle frame
[ever is "closed" when it curves towards
bicycle frame The handle of the quick release skewer is always on the nun-drive
(non cassette} side of the KICKR CORE.Only use the provided quick release skewer
while using the KICKR CORE.
For bicycles with thru axle -
Secureyour bicycle by reinstalling
your bicycle's thru axle (7) and
tightening to ma nufacturer
specifications
CAUTIONI F ailure to properly tighten the quick release skewer or thru axle may result
in property damage or personol injury. ifyou are unsure ofthe proper tension, pleose
consult your local bike shop or contact Wahoo Fitness for assistance. DoNOTride the
KICKRCORE until the quick release skewer or thru
PROTIP: Lift the front wheel up while pressing down on the saddle to ensure
o
the bicycle is fully seated on the trainer,
Adapter A BCj•mrn C onfiguration (Adapter
the
the
is tightened.
(Adapter
22k142
(6)
6
