3
7 T •99—TM
'-AZ , Y—JV
x 7 r •2
<
IW128msec
C,
D-TIME
av5
•
INV
OUT
Connects an amp or the input of another effet
via a shielded
cable when
out.
OUTPUT
Connects an amp or the input of another effet
via a shielded
cable.
INDICATOR
Linhts when the effet is on. It also serves as
ttery check. If this LED is dim or does not
It, replace the battery.
DELAY
TIME
Controls DELAY TIME. Turning CW increaes
the delay interval within the range selected
by the MODE control.
MODE
Selects
one
of four
delay
ranges
are;
[j] 0.25 ms to 2 ms
1 ms to 8 ms
4 ms to 32 ms
@ 16 ms to 128 ms
WIDTH
Controls
the
sweep
or modulation
Turning CW increases the effect. If WIDTH is
fully CCW, no modulation
or effect will result.
LOCK
PIN
Sliding this to the left opens the FOOTSWIT-
CH, allowing
battery replacement.
/fviV—.5-x
MODE
using in stereo
ranges.
There
depth.
E

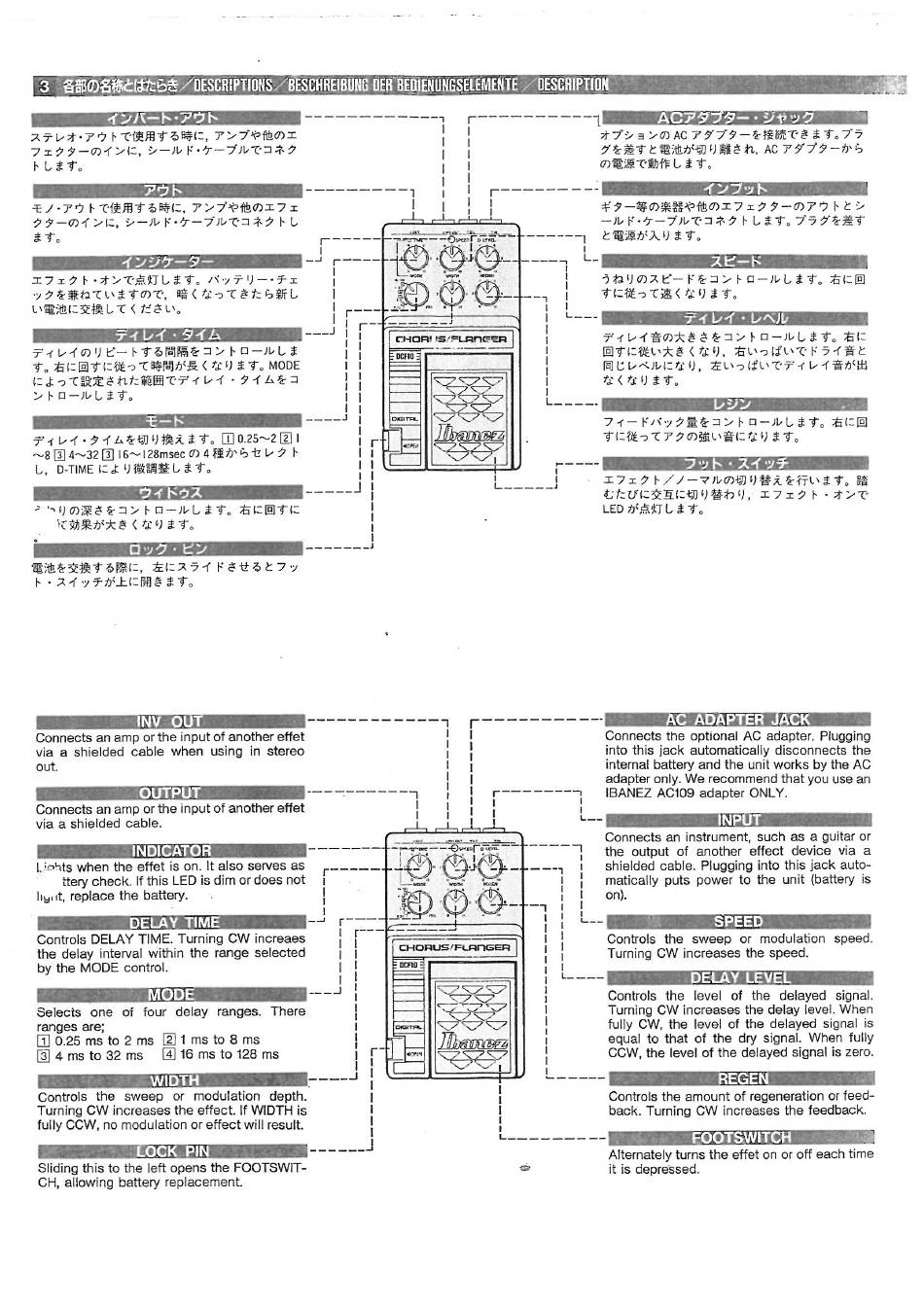

BEDiENUNGSELEMENT
DESCRIPTION
OCFIO _
CHORUS'FennGER
acno
ACP'
ö-*aoøxeo—
LA
• L..m•Ob
LED
AC
ADAPTER
JACK
Connects
the optional AC adapter. Plugging
into this jack automatically
disconnects
internal battery and the unit works by the AC
adapter only. We recommend that you use an
IBANEZ AC109 adapter ONLY.
INPUT
Connects
an instrument,
such as a guitar or
the output of another effect device via a
shielded
cable. Plugging
into this jack auto-
matically puts power to the unit (battery is
on).
SPEED
Controls
the sweep
or modulation
Turning CW increases the speed.
DELAY
LEVEL
Controls
the
level
of the delayed
Turning CW increases
the delay level. When
fully CW, the level of the delayed signal is
equal to that of the dry signal. When fully
CCW, the level of the delayed signal is zero.
REGEN
Controls the amount of regeneration or feed-
back. Turning CW increases the feedback.
FOOTSWITCH
Alternately
turns the effet on or off each time
it is depressed.
the
speed.
signal.
