INSTALLA TION - WIRING 2
In some cases, the interface board or solenoids in the host machine are not common. For example: The softener solenoid on
some Miele machines is not linked
If this is the case, the signal must be isolated from the common B rail on the Board. This is done by Switching the appropriate
switch (LKIO to Lk19 to isolated, ie. Downward position). If in doubt switch the appropriate switch for each incoming signal
source.
FAILURE TO SWITCH THEAPPROPRIATE
DO NOT ATTEMPT TO SWITCH
Note:
If a signal is applied to Input 2 before Input 1 then the unit will assume that a Pre-wash is not occurring and will ignore
subsequent signals to Input 1 until the unit has reset.
RPI, RP2, RP3 & RP4
Remove to allow signals below
90 volts AC or DC (min 12V)
100V - 240VAC
Sourced from a point, which is
isolated
BRIGHTLOGIC LAUNDRY SYSTEMS
via a common wire
SWITCH
THE SWITCHES
50/60Hz
when the host machine is off
Signal Inputs
gov - 240VAC or DC
B Rail A Rail
(Negative) (Positive)
The positive (live)
With the switches in
an upright position, a signal from each
input must be taken
common
(neutral/negative) to the
input signal can be connection
taken to the B Rail.
Separate Separate
connections are connections
provided on input 2 provided on input 2
for Hot & Cold wash for Hot & Cold
signals signals
Example sources:
Interface Board
Solenoid Valves
to the other solenoids.
WOULD RESULT
WHEN THE POWER IS ON.
relevant
on the A
Rail
are
wash
IN UNIT FAILURE.
(LK10 - LK19)
switch to common signals
on the B Rail
00000

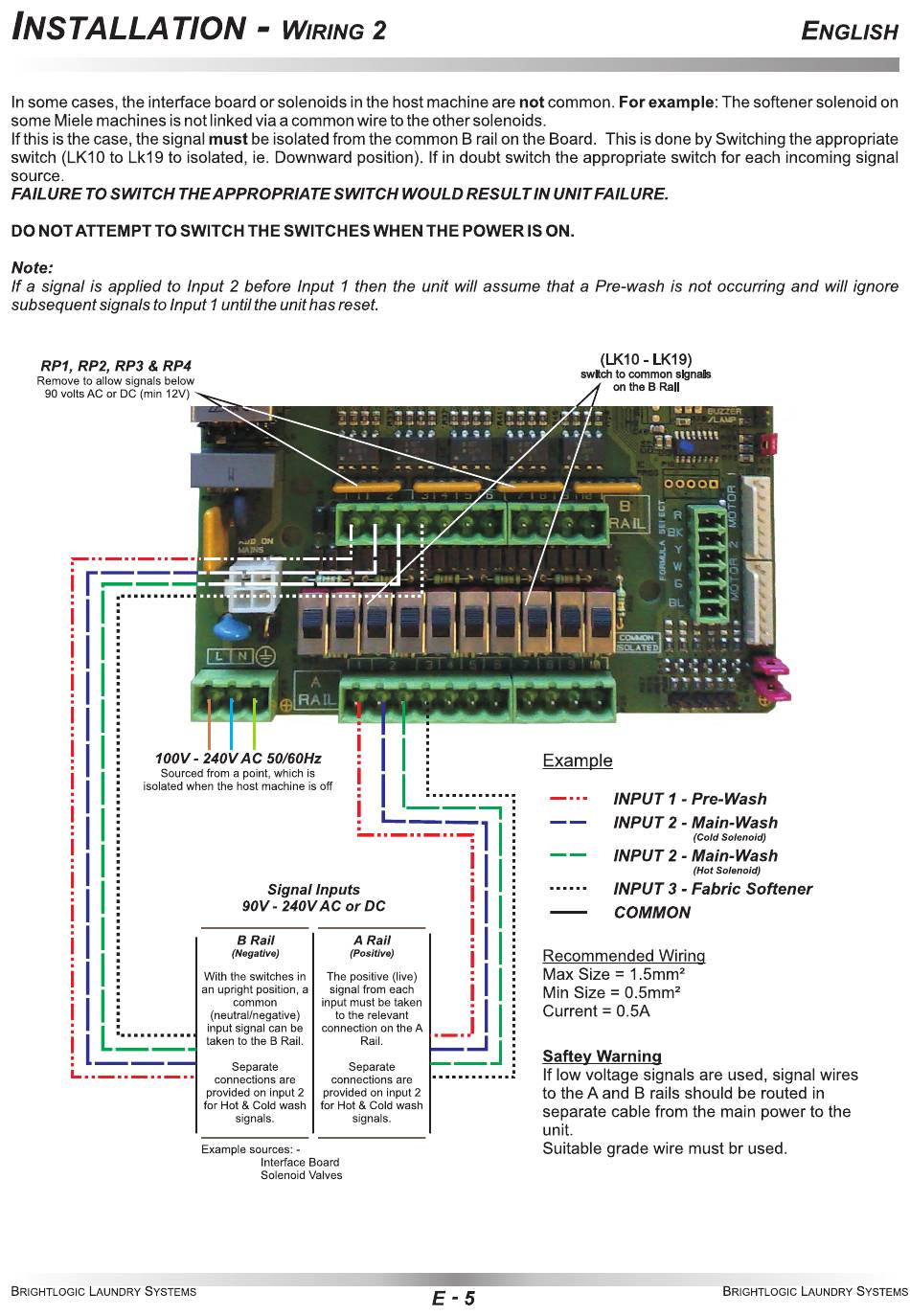

AIL -
Example
INPUT 1 - Pre-Wash
INPUT 2 - Main-Wash
(Cold Solenoid)
INPUT 2 - Main-Wash
(Hot Solenoid)
INPUT 3 - Fabric
COMMON
Recommended Wiring
Max Size = 1.5mm2
Min Size = 0.5mm2
Current = 0 5A
Saftey Warning
If low voltage signals are used, signal wires
to the A and B rails should
separate cable from the main power to the
unit.
Suitable grade wire must br used.
ENGLISH
Softener
be routed in
BRIGHTLOGIC LAUNDRY SYSTEMS
