INSTALLA TION - MOUNTING
Fix the unit to a vertical wall using the screws provided.
Ensure that the unit is level and positioned
dispensed.
Important Notes.
Maximum recommended
Minimum tube size - 8x11 mm

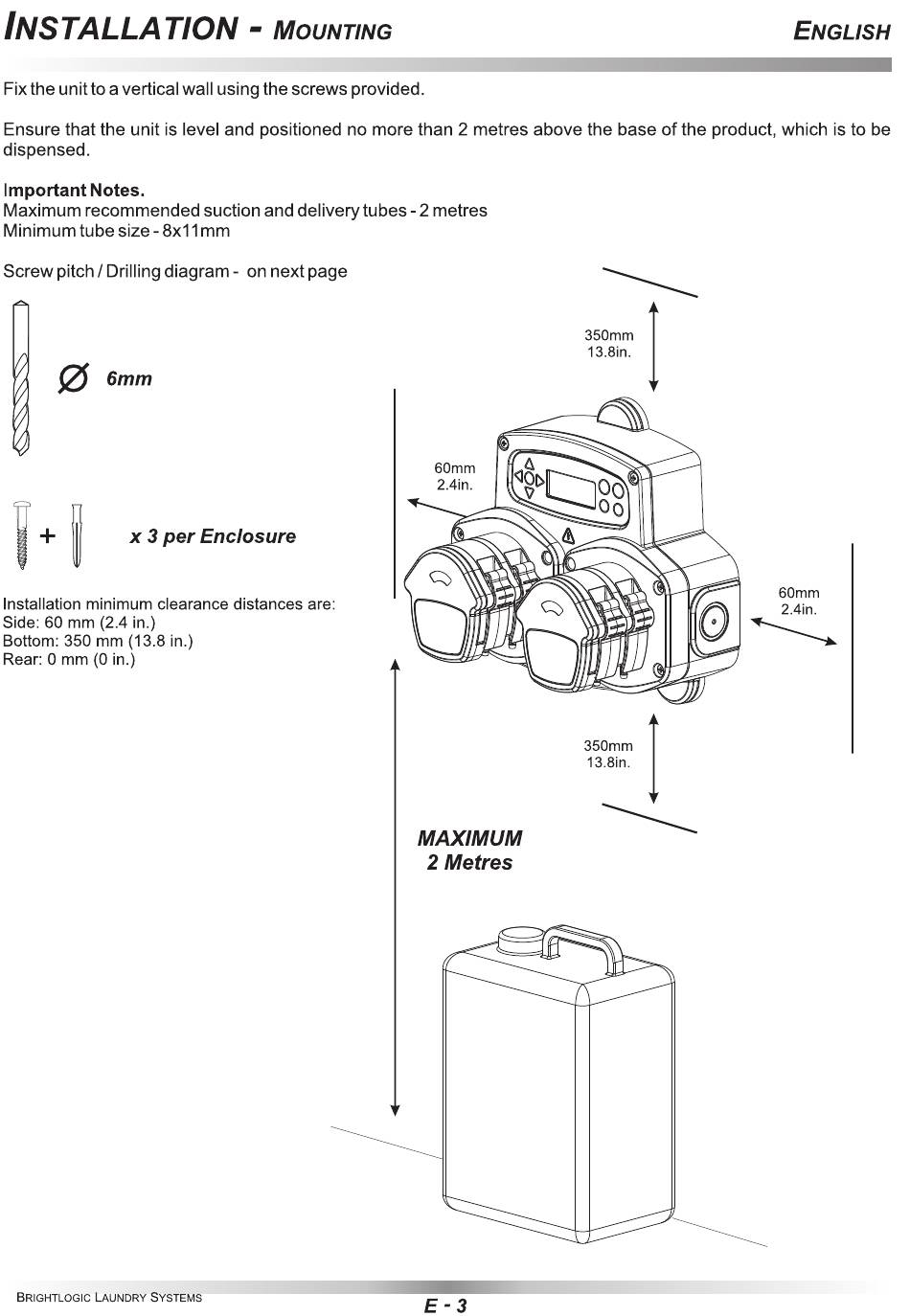

Screw pitch/ Drilling diagram-
6mm
x 3 per Enclosure
Installation minimum clearance
Side: 60 mm (2.4 in.)
Bottom: 350 mm (13.8 in.)
Rear: 0 mm (0 in.)
BRIGHTLOGIC LAUNDRY SYSTEMS
no more than 2 metres above the base of the product, which is to be
suction and delivery tubes - 2 metres
on next page
distances are:
350mm
13 8in
60mm
qob
350mm
13 8in
MAXIMUM
2 Metres
oo
oo
ENGLISH
60mm
2.4
