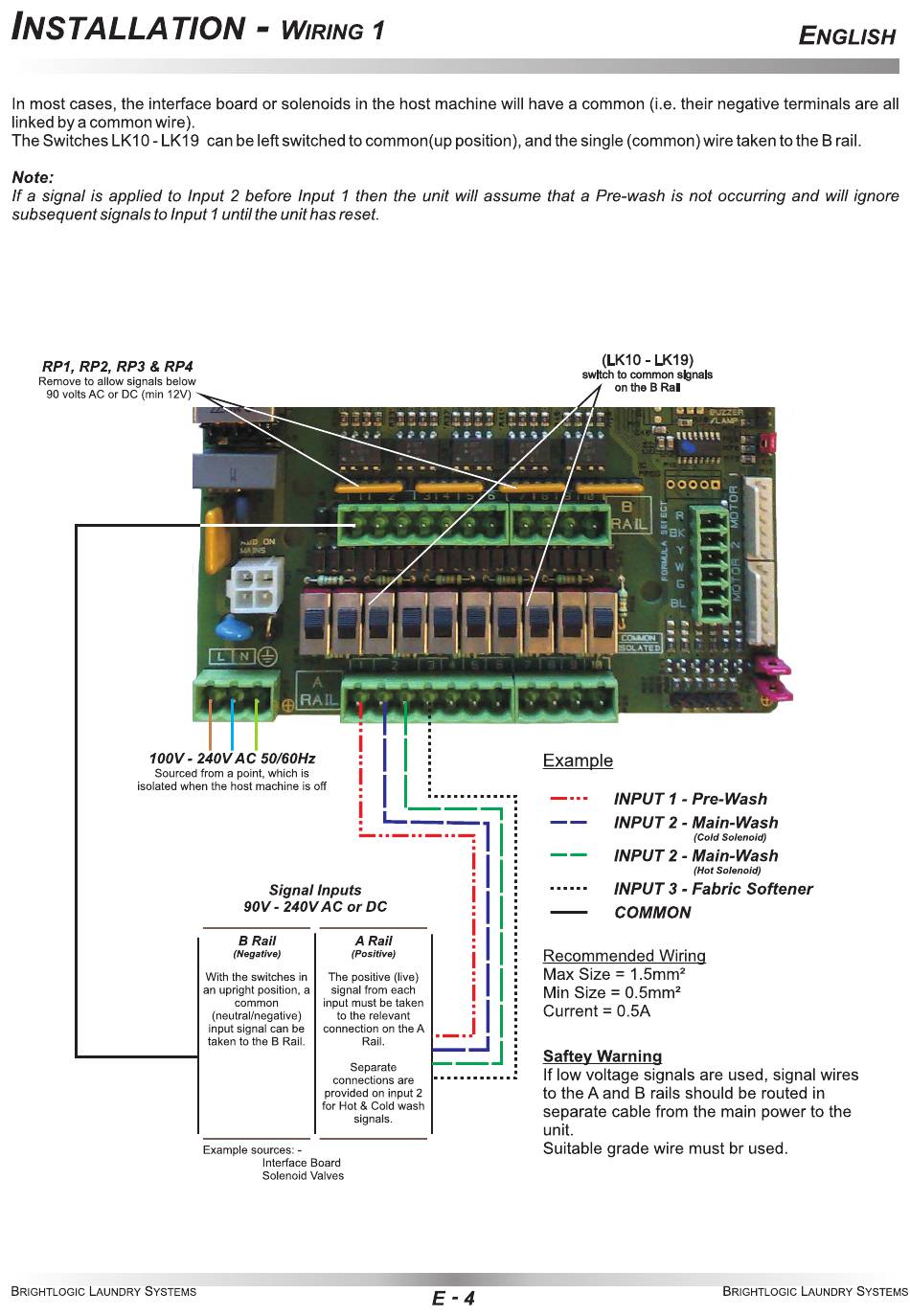

INSTALLA TION - WIRING 1
In most cases, the interface board or solenoids in the host machine will have a common (i.e. their negative terminals are all
linked by a common wire).
The Switches LKIO - LK19 can be left switched to common(up position), and the single (common) wire taken to the B rail
Note:
If a signal is applied to Input 2 before Input 1 then the unit will assume that a Pre-wash is not occurring and will ignore
subsequent signals to Input 1 until the unit has reset.
RPI, RP2, RP3 & RP4
Remove to allow signals below
90 voltsAC or DC (min 12V)
100V - 240VAC
Sourced from a point, which is
isolated when
BRIGHTLOGIC LAUNDRY SYSTEMS
50/60Hz
the host machine is off
Signal Inputs
gov- 240VAC or DC
B Rail A Rail
(Negative) (Positive)
With the switches in The positive (live)
an upright position, a signal from each
input must be taken
common
(neutral/negative) to the relevant
input signal can be connection
taken to the B Rail Rail.
Separate
connections
provided on input 2
for Hot & Cold
signals.
Example sources:
Interface Board
Solenoid Valves
Example
Recommended
Max Size = 1.5mm2
Min
Current
on the A
Saftey Warning
If low voltage signals are used, signal wires
are
to the
wash
separate cable from the main power to the
unit.
Suitable grade wire must br used.
(LK10 - LK19)
switch to common signals
on the B Rail
00000
AIL -
s ATE
INPUT 1 - Pre-Wash
INPUT 2 - Main-Wash
(Cold Solenoid)
INPUT 2 - Main-Wash
(Hot Solenoid)
INPUT 3 - Fabric Softener
COMMON
Wiring
Size = 0.5mm2
= 0.5A
A and B rails should be routed
