FS KVM-0802IP Schnellstartanleitung Seite 5

KVM-080217IP/KVM-160217IP

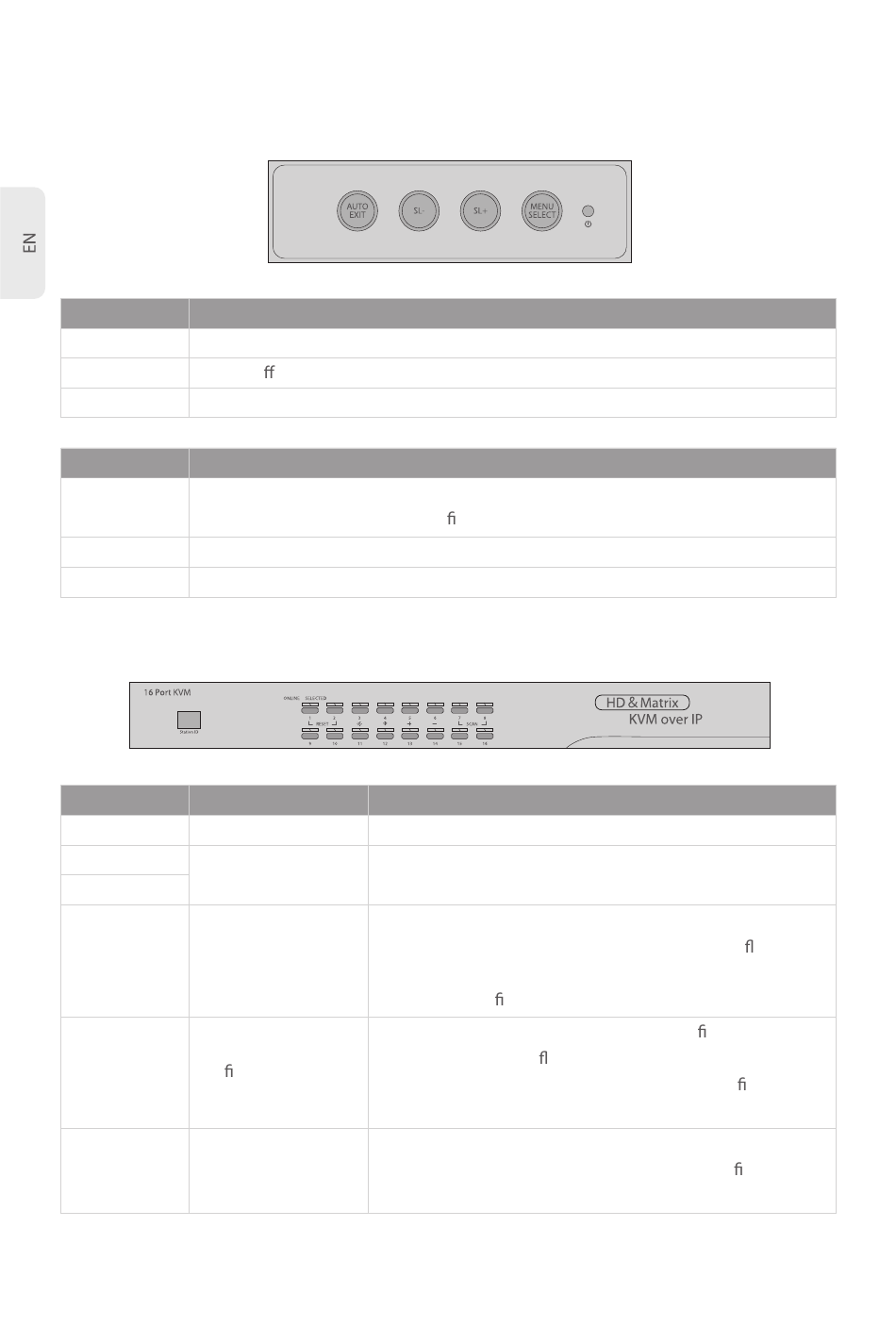

LED OSD Controls
LED State Description
Green The KVM is powered on.
Red Power o or access the non-standard VESA signal.
Flashing Green
The KVM is in energy-saving mode or there is no signal.
Buttons Description
Press to exit the current menu and return to the previous menu or exit the LED
AUTO/EXIT
OSD, or enter the automatic con guration.
SL-/SL+ Press to move your menu and make the corresponding adjustment.
MENU SELECT
Press to invoke the menu function and open the main menu.
Buttons
Buttons Components
1~8/16
Port Selection
1
Reset
2
3 Brightness
4
De nition
5 Adjust+
4
Description
Switch freely from port 1 to port 8/16.
Press [1] and [2] at the same time for three seconds to reset
the keyboard and mouse.
Press to adjust the mode. Press [3] for three seconds to
enter brightness adjusting mode. Number 33 is ashing on
the LED tube. Then press [5] and [6] to adjust. Press [3] to
exit or wait for ve seconds and it will auto-exit.
Press [4] for three seconds to enter the de nition adjusting
mode. Number 44 is ashing on the LED tube. Then press
[5] and [6] to adjust. Press [4] to exit or wait for ve seconds
and it will auto-exit.
Press [5] to enhance the brightness after entering the
brightness adjusting mode, or enhance the de nition after
entering the corresponding mode.
