FS KVM-0802IP Schnellstartanleitung Seite 4

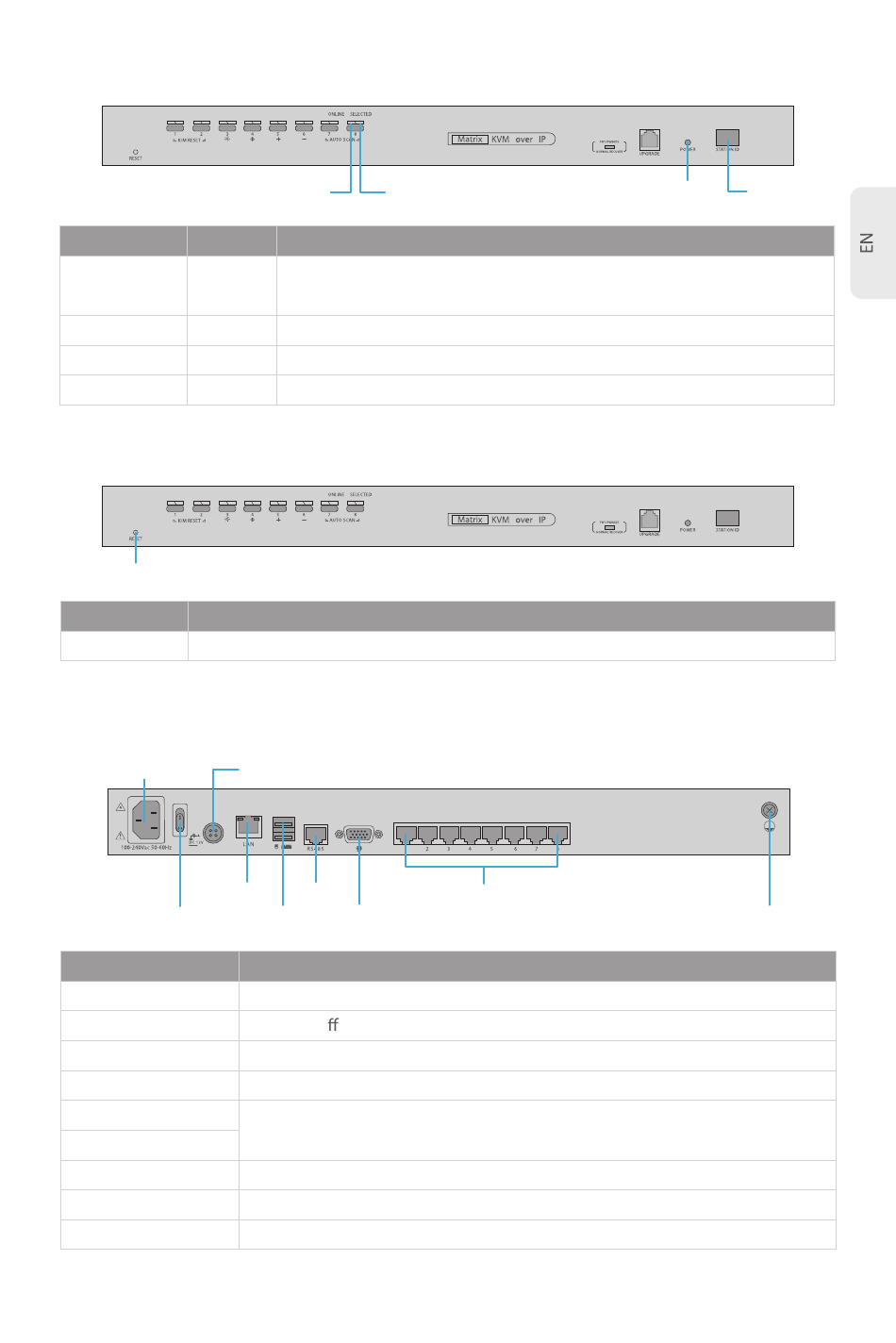

Front Panel LEDs
LEDs State
ONLINE
Green
SELECTED Orange
POWER
Blue
STATION ID /
Front Panel Button
RESET
Button Description
RESET Press to reset the KVM.
Back Panel Ports
Power Input (AC)
Power Switch
Ports
Power Input (AC)
Power Switch
Power Input (DC)
LAN
USB
VGA
RS485
RJ45
Grounding Screw
ONLINE SELECTED
Description
The KVM has been connected to its corresponding computer and
powered on.
The computer attached to its corresponding port is up and running.
The KVM is powered on.
Display the current port.
Power Input (DC)
LAN RS485
USB VGA
Description
A power input port for the AC power cord
Turn on/o the power
A power input port for the DC power cord
Connect to the remote computer for remote control
Connect to the external keyboard, mouse and monitor for local control
Reserved port for a hardware upgrade
Connect to the computer or server
For grounding the KVM switch
RJ45
POWER STATION ID
Grounding Screw
3
