CUTTING THE PINS
Step 1 - Clamp the pin board in the upper clamp (horizontal
mounting position) with the outside surface against the jig's base.

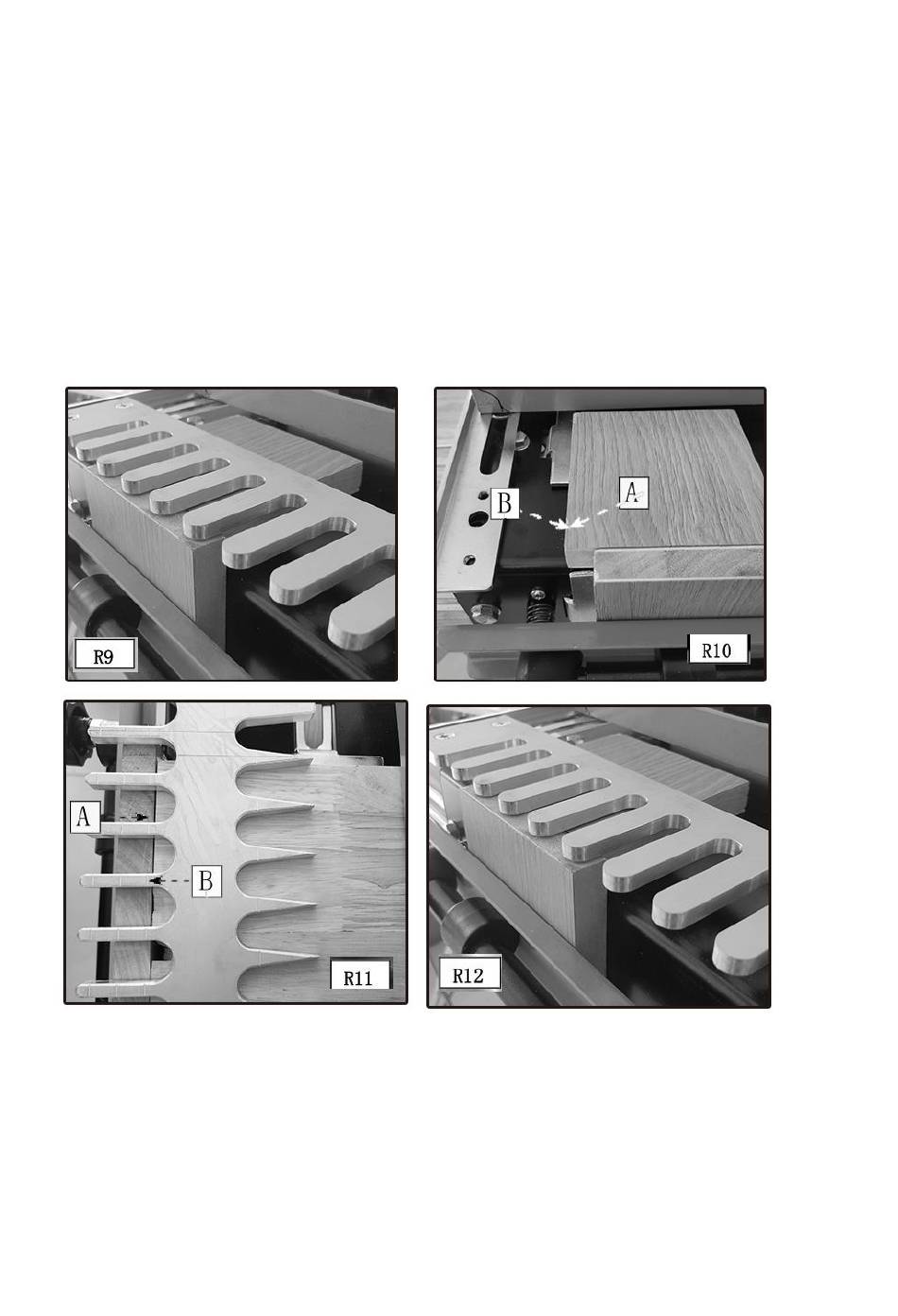

Step 2 - Secure the template on top of the pin board making sure that
it is flat (Fig. R9).
Step 3 - Reposition the pin board (A) Fig. R10 so that it is flush to the
left offset guide (B) and the inside edge of the rabbet (A) Fig. R11 is
aligned with the "half-blind" alignment line (B). Lower the router bit on
the depth guide and lock the position on your router.
Step 4 - Rout in and out of the fingers of the template from left to right.
Step 5 - Remove the boards from the jig and test for fit.
NOTE:
Alternate method for aligning the pin board - Use a board
with a rabbet the same width as the rabbet on the workpiece (R12).
FITTING AND TROUBLESHOOTING
Fitting and troubleshooting methods for the lipped front half-blind
dovetail are the same as for the regular half- blind dovetail.
- 27 -
