2 Important Information

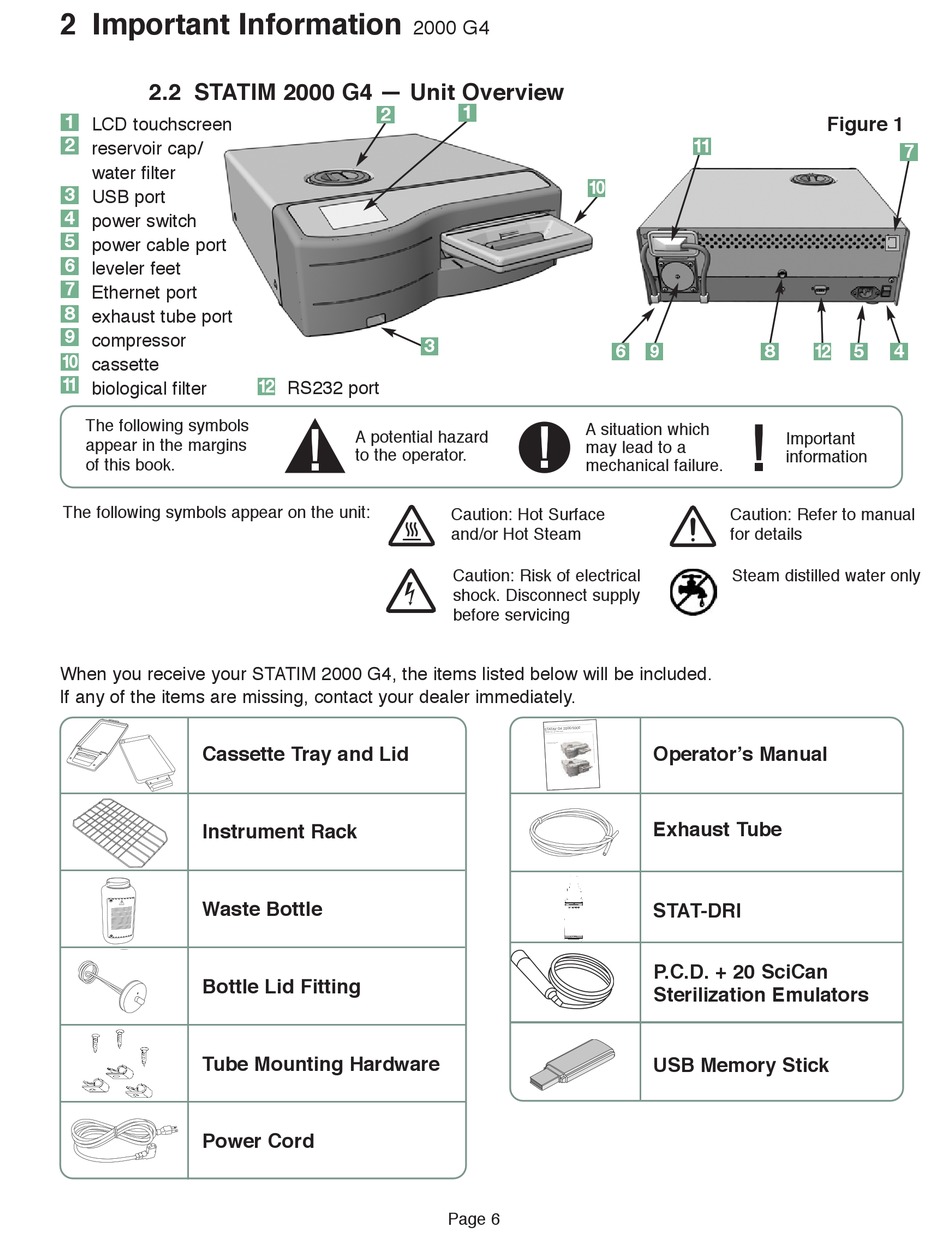

2.2 STATIM 2000 G4 — Unit Overview
n
1
1 LCD touchscreen
n
2
1 reservoir cap/
n
1 water filter
n
3
1 USB port
n
4
1 power switch
n
5
1 power cable port
n
6
1 leveler feet
n
7
Ethernet port
1
n
8
exhaust tube port
1
n
9
compressor
1
n
1
cassette
1
n
11
biological filter
1
The following symbols
appear in the margins
of this book.
The following symbols appear on the unit:
When you receive your STATIM 2000 G4, the items listed below will be included.
If any of the items are missing, contact your dealer immediately.
Cassette Tray and Lid
Instrument Rack
Waste Bottle
Bottle Lid Fitting
Tube Mounting Hardware
Power Cord
2000 G4
2
3
n
12
1 RS232 port
A potential hazard
to the operator.
1
1
6
A situation which
may lead to a
mechanical failure.
Caution: Hot Surface
and/or Hot Steam
Caution: Risk of electrical
shock. Disconnect supply
before servicing
Page 6
Figure 1
11
9 8 12
Important
information
Caution: Refer to manual
for details
Steam distilled water only
Operator's Manual
Exhaust Tube
STAT-DRI
P.C.D. + 20 SciCan
Sterilization Emulators
USB Memory Stick
7
5 4
