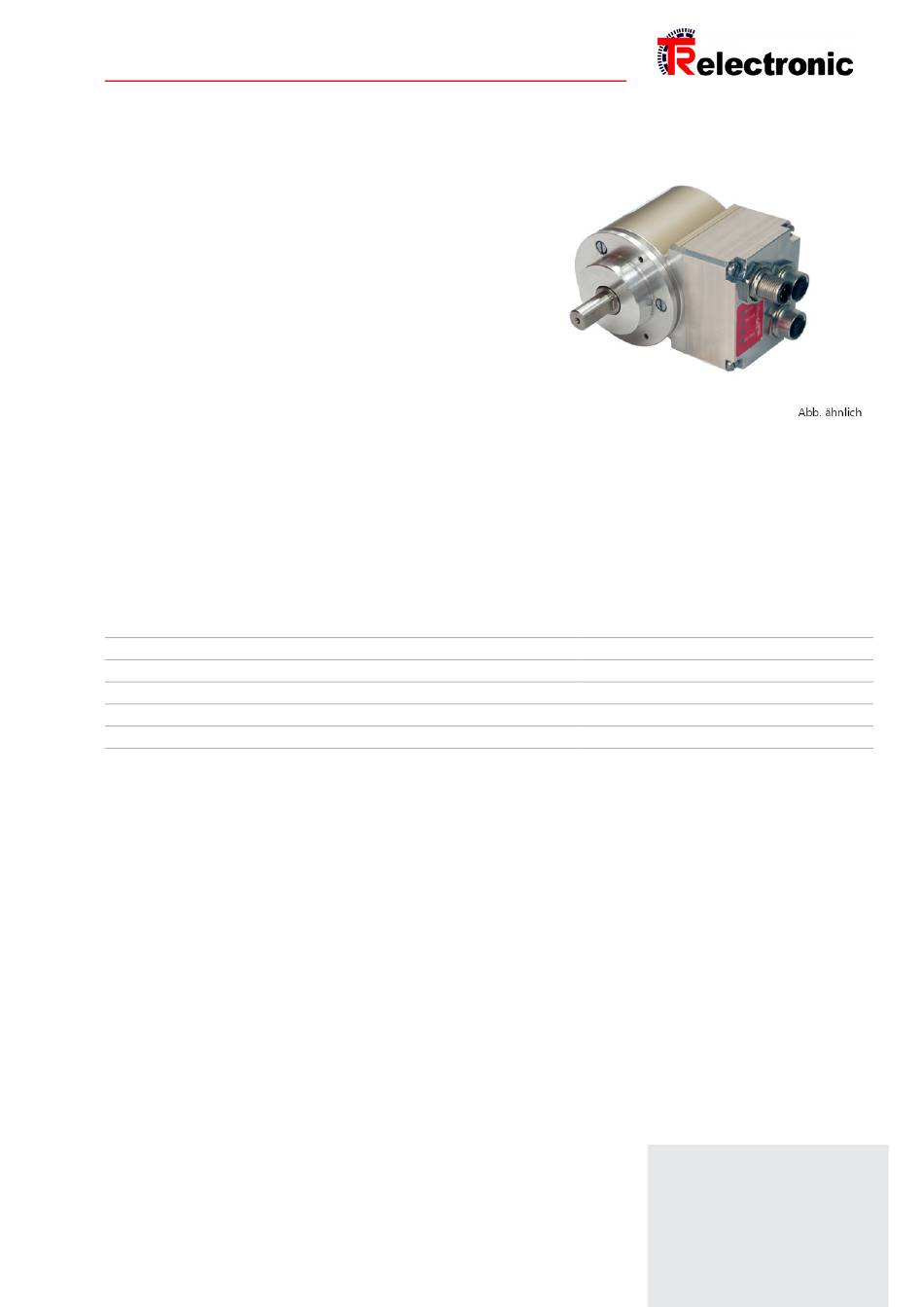

TR-Electronic CMV22S 4096 Serie Montageanleitung

Drehgeber baugröße 58
Vorschau ausblenden Andere Handbücher für CMV22S 4096 Serie:

Werbung

Gesamtbedienungsanleitung
Für
CMV22S*4096/1 ANA_I 1/4"X12
CMV22S*4096/1 ANA_I 1/4"X12
Material Nr.
CMV22S-00004
CMV22S-00004
Generiert am
25.08.2024
25.08.2024
Enthält Originalbedienungsanleitung
Enthält Originalbedienungsanleitung
Dokumentationsabschnitte
Montageanleitung de/en Baureihe 58 Montageanleitung
Betriebsanleitung de/en C__-58(2), EtherCAT (optional Ink.)
Technische Info de/en Zubehör/Leitung: Ethernet/M12-Versorgung
Konformitätserklärung de/en EU-Konformitätserklärung ECE (EMV+RoHS)
Konformitätserklärung de/en UKCA, Konformitätserkl. ECE (EMV+RoHS)
Technische Daten
Seite 1/1
TR-ECE-BA-DGB-0035-15.pdf
TR-ECE-BA-DGB-0094-14.pdf
TR-E-TI-DGB-0173-02_Zubehoer-Leitungen-E
TR-ECE-KE-DGB-0374-06.pdf
TR-ECE-KE-GB-0375-06.pdf
