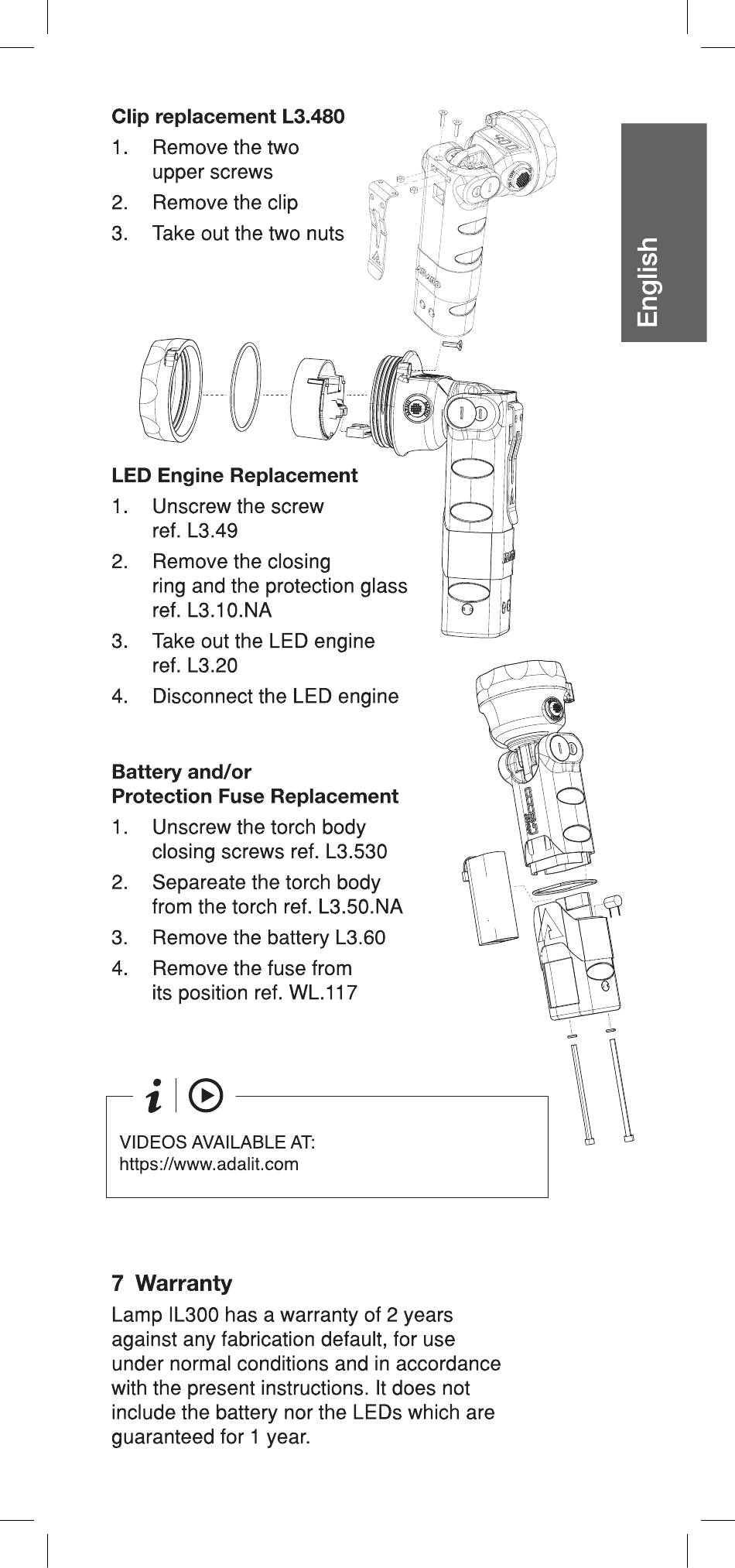

Clip replacement
Remove the two
upper screws
2. Remove the clip
Take out the two nuts
3.
LED Engine Replacement
Unscrew the screw
ref. L3.49
2. Remove the closing
ring and the protection glass
ref. L3.10.NA
3. Take out the LED engine
ref. L3.20
Disconnect the LED engine
4.
Battery and/or
Protection Fuse Replacement
Unscrew the torch body
closing screws ref. L3.530
2. Separeate the torch body
from the torch
3. Remove the battery L3.60
4. Remove the fuse from
its position ref. WL.117
VIDEOS AVAILABLE
https://www.adalit.com
7 Warranty
Lamp IL300 has a warranty of 2 years
against any fabrication default, for use
under normal conditions
with the present instructions. It does not
include the battery nor the LEDs which are
guaranteed for I year.
L3.480
ref. L3.50.NA
AT:
and in accordance
