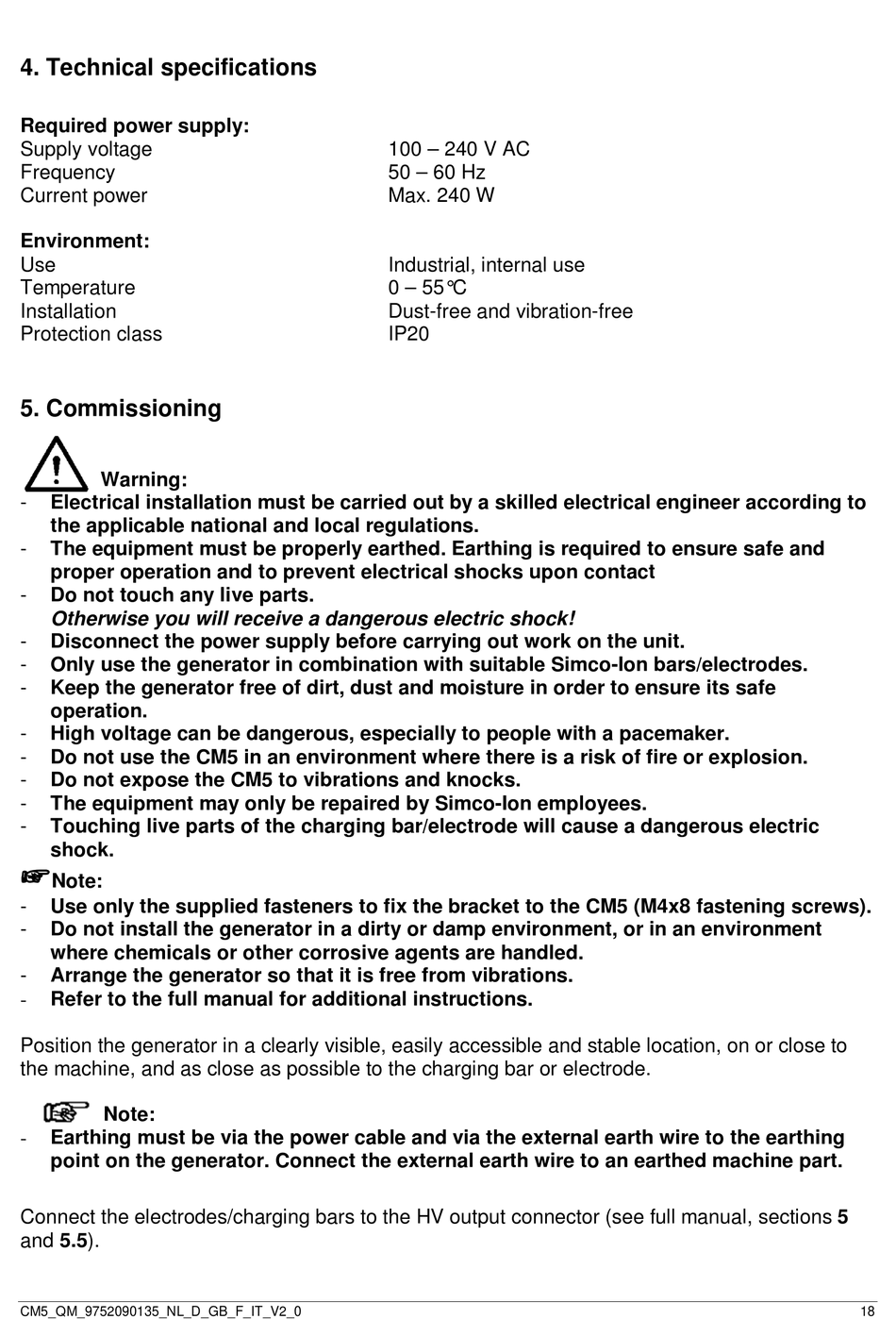

4. Technical specifications

Required power supply:
Supply voltage
Frequency
Current power
Environment:
Use
Temperature
Installation
Protection class

5. Commissioning

Warning:
- Electrical installation must be carried out by a skilled electrical engineer according to
the applicable national and local regulations.
- The equipment must be properly earthed. Earthing is required to ensure safe and
proper operation and to prevent electrical shocks upon contact
- Do not touch any live parts.
Otherwise you will receive a dangerous electric shock!
- Disconnect the power supply before carrying out work on the unit.
- Only use the generator in combination with suitable Simco-Ion bars/electrodes.
- Keep the generator free of dirt, dust and moisture in order to ensure its safe
operation.
- High voltage can be dangerous, especially to people with a pacemaker.
- Do not use the CM5 in an environment where there is a risk of fire or explosion.
- Do not expose the CM5 to vibrations and knocks.
- The equipment may only be repaired by Simco-Ion employees.
- Touching live parts of the charging bar/electrode will cause a dangerous electric
shock.

Note:
- Use only the supplied fasteners to fix the bracket to the CM5 (M4x8 fastening screws).
- Do not install the generator in a dirty or damp environment, or in an environment
where chemicals or other corrosive agents are handled.
- Arrange the generator so that it is free from vibrations.
- Refer to the full manual for additional instructions.
Position the generator in a clearly visible, easily accessible and stable location, on or close to
the machine, and as close as possible to the charging bar or electrode.
Note:
- Earthing must be via the power cable and via the external earth wire to the earthing
point on the generator. Connect the external earth wire to an earthed machine part.
Connect the electrodes/charging bars to the HV output connector (see full manual, sections 5
and 5.5).
CM5_QM_9752090135_NL_D_GB_F_IT_V2_0
100 – 240 V AC
50 – 60 Hz
Max. 240 W
Industrial, internal use
0 – 55°C
Dust-free and vibration-free
IP20
