1. Explanation of symbols

Warning
Indicates special information to prevent injury or significant damage to the
product.
Attention
Important information for making the most efficient use of the product
and/or for preventing damage to the product.

2. Introduction

This manual serves as a quick installation guide for simple use of the CM5 charging generator,
corresponding to the Euro ChargeMaster (ECM). We recommended that you refer to the full
manual in order to use all the functions of this generator.

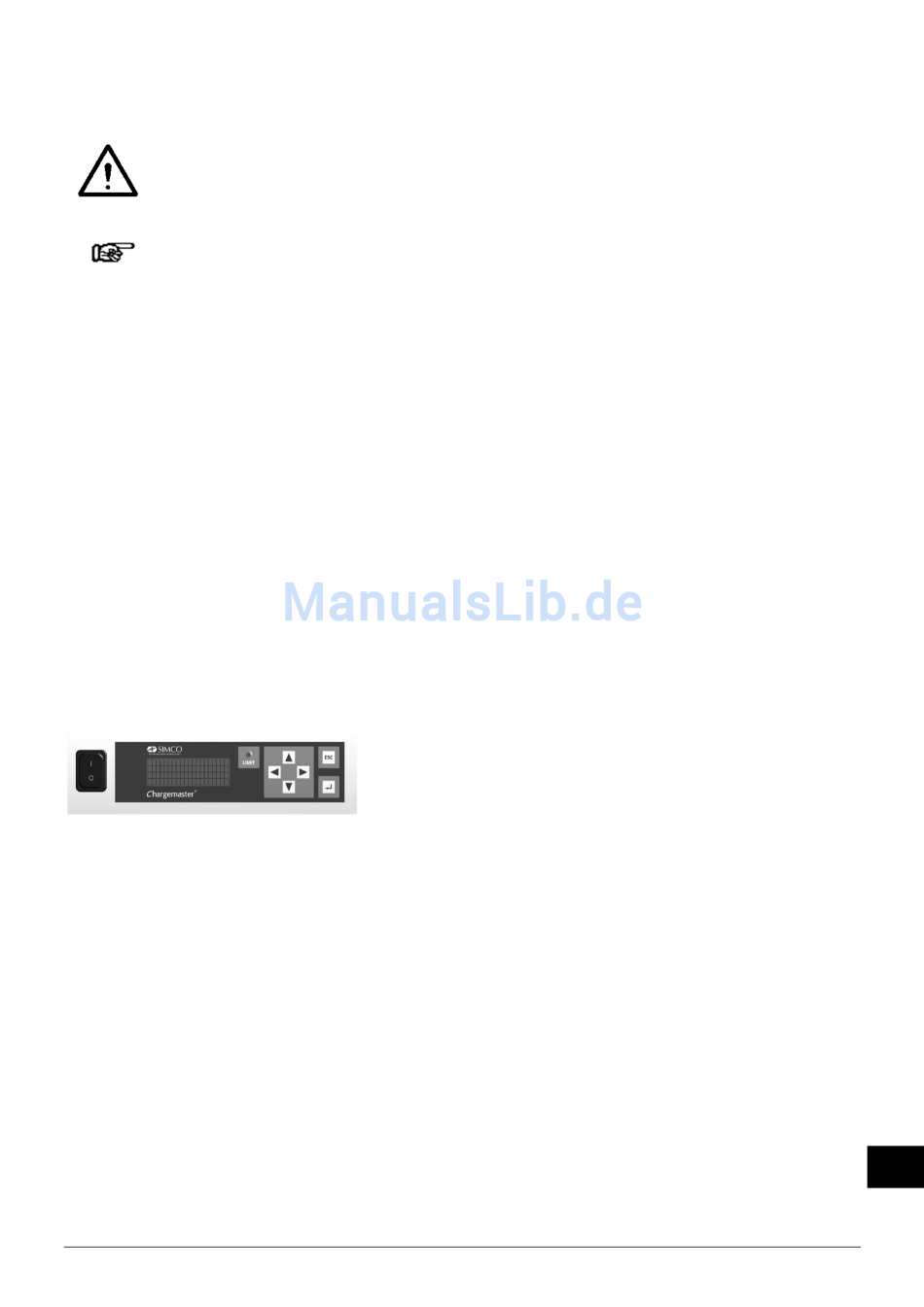

On the front of the generator there is an on/off switch, a display for displaying system settings
and information, six operating buttons (touch keys) for setting the high voltage or operating the
user interface and a limit indicator to indicate that the output voltage or supplied current is
limited.
The key switch on the ECM has been replaced with a software key on the CM5. See the section
on "Keyboard lock" later on in this manual. The overload indicator on the ECM has been
replaced on the CM5 with a limit indicator.

3. Description and operation

mode and various generator settings. The generator is protected against overload. In the event
of an overload the current will be limited. When the limit indicator lights up, this means the CM5
cannot supply the requested current.
It is possible to (temporarily) lock the operation. This is called 'locked' mode. In this mode it is
no longer possible to change the output voltage or output current using the keyboard.
CM5_QM_9752090135_NL_D_GB_F_IT_V2_0
A keyboard is used to operate the generator. Information
about the generator is shown via a display. This display
shows information about the currently measured high
voltage and current at the output, but also information
such as the high voltage and current setting, operational
