Ec DEcLARATION Of cONfORMITy

As manufacturer
PR electronics A/S
Lerbakken 10
DK-8410 Rønde
hereby declares that the following product:
Type: 5225
Name: Programmable f/I - f/f converter
is in conformity with the following directives and standards:
The EMC Directive 2004/108/EC and later amendments
EN 61326-1
For specification of the acceptable EMC performance level, refer to the
electrical specifications for the module.
The Low Voltage Directive 2006/95/EC and later amendments
EN 61010-1
The CE mark for compliance with the Low Voltage directive was affixed in the
year: 1997
Rønde, 11 January 2010
22
Kim Rasmussen
Manufacturer's signature

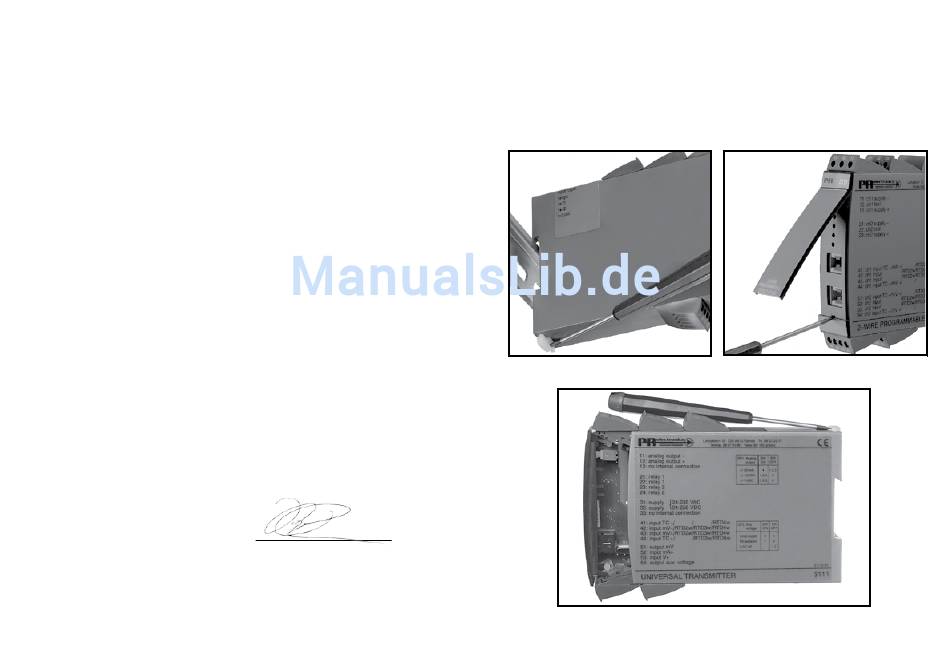

HOW TO DISMANTLE SySTEM 5000

First, remember to demount the connectors with hazardous voltages. By lifting
the bottom lock, the module is detached from the DIN rail as shown in picture 1.
Then, by lifting the upper lock and pulling the front plate simultaneously the PCB
is removed as shown in picture 2.
Switches and jumpers can now be adjusted. By opening the front, the
programming connector is accessible as shown in picture 3.
Picture 1: Separation from DIN rail.
Picture 2: Removal of PCB.
Picture 3: Access to programming
connector.
23
