2.5.5 WATER INLET SCREEN
The water inlet filter must be inspected regularly, so as to avoid blockage and restriction in the wa-
ter supply to the pump (pic 5 on Fig. B).
2.5.6 USING DETERGENT
Add detergent to the container. Set the Adjustable Spray Wand at low pressure position. (fig C)
Trigger gun to spray detergent.
2.5.7 HOSE-REEL HANDLE
The hose reel handle turns down for use and up for storage. To turn up the handle, pull out and turn
up. (fig D)
2.5.8 LONG TERM STORAGE
The machine should be stored in a frost-free environment.
After long-term storage without operation, it is possible to form scales inside the machine making it
hard to start again. In such conditions it is recommended to turn off and disconnect the power sup-
ply and rotate the motor by hand several times so as to avoid excessive current draw on the motor
and the power supply.
2.5.9 GUN SAFETY DEVICE
Whenever you use the high pressure washer, we suggest you grip the in the right position, with one
hand on the handle and the other on the lance, When you stop the machine it is necessary to use
the safety lock placed on the gun in order to avoid accidental. (Fig. E)
2.5.10 Cleaning pin instruction
• Using included tip cleaner, or an unfolded paper clip, insert wire into the nozzle hole and move
back and forth until debris is dislodged. (Fig. F)
• Remove additional debris by back-flushing water through the nozzle. To do this, place end of a
garden hose ( with water running ) to the end of nozzle for 30-60 seconds.
2.6

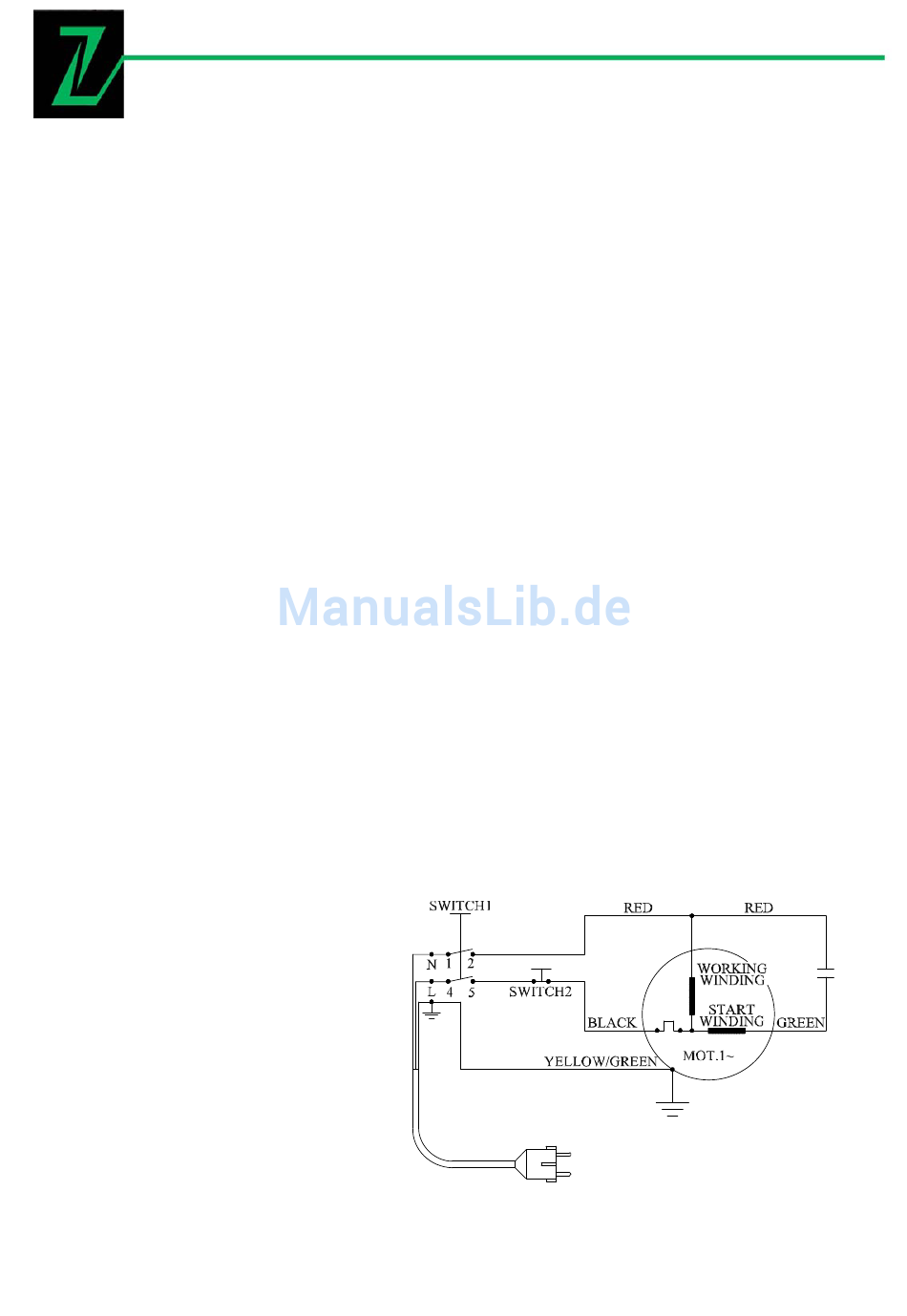

ELECTRICAL DIAGRAM
