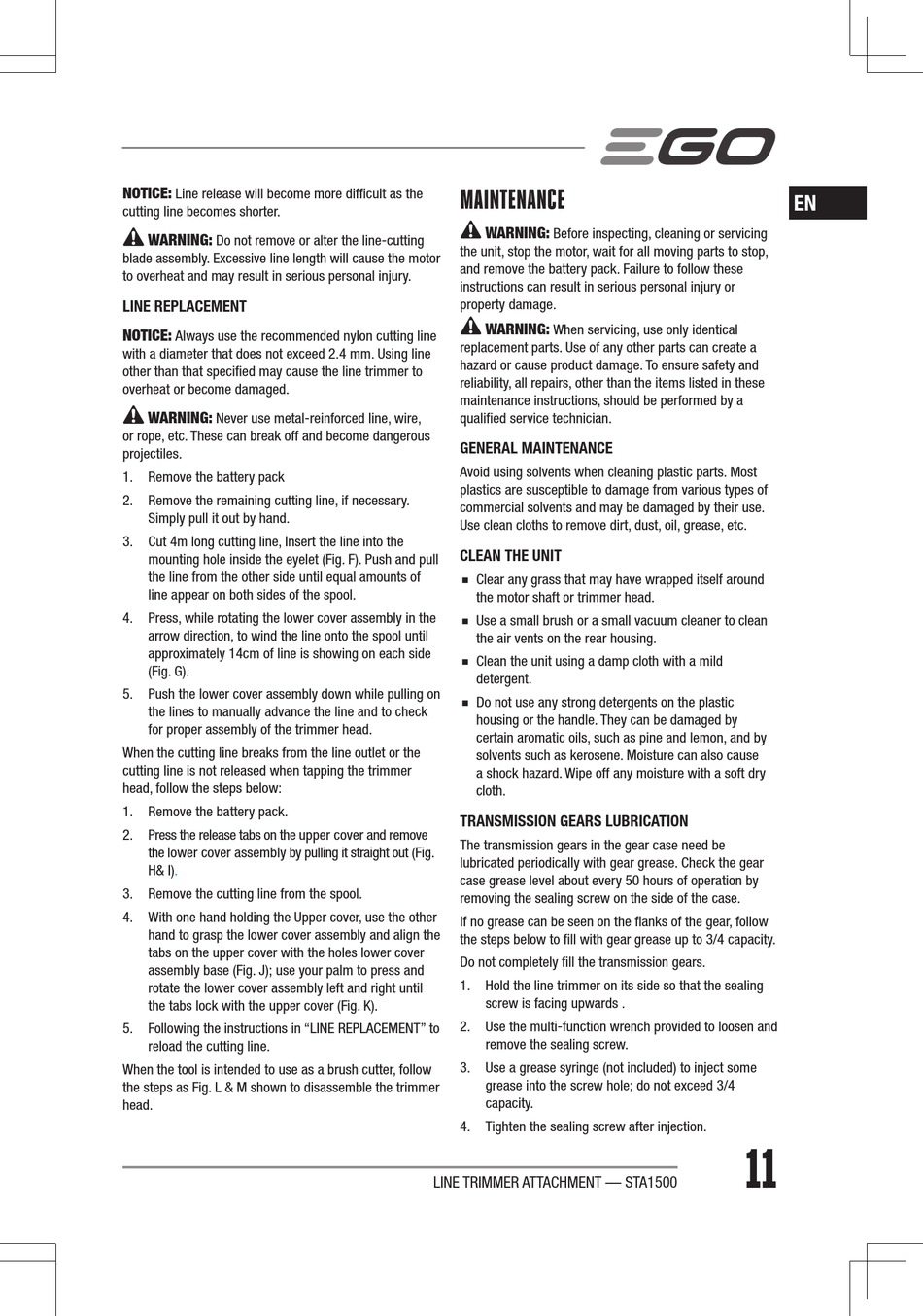

NOTICE:
Line release will become more difficult as the
cutting line becomes shorter.
WARNING:
Do not remove or alter the line-cutting
blade assembly. Excessive line length will cause the motor
to overheat and may result in serious personal injury.
LINE REPLACEMENT
NOTICE:
Always use the recommended nylon cutting line
with a diameter that does not exceed 2.4 mm. Using line
other than that specified may cause the line trimmer to
overheat or become damaged.
WARNING:
Never use metal-reinforced line, wire,
or rope, etc. These can break off and become dangerous
projectiles.
1. Remove the battery pack
2. Remove the remaining cutting line, if necessary.
Simply pull it out by hand.
3. Cut 4m long cutting line, Insert the line into the
mounting hole inside the eyelet (Fig. F). Push and pull
the line from the other side until equal amounts of
line appear on both sides of the spool.
4. Press, while rotating the lower cover assembly in the
arrow direction, to wind the line onto the spool until
approximately 14cm of line is showing on each side
(Fig. G).
5. Push the lower cover assembly down while pulling on
the lines to manually advance the line and to check
for proper assembly of the trimmer head.
When the cutting line breaks from the line outlet or the
cutting line is not released when tapping the trimmer
head, follow the steps below:
1. Remove the battery pack.
2. Press the release tabs on the upper cover and remove
the lower cover assembly by pulling it straight out (Fig.
H& I).
3. Remove the cutting line from the spool.
4. With one hand holding the Upper cover, use the other
hand to grasp the lower cover assembly and align the
tabs on the upper cover with the holes lower cover
assembly base (Fig. J); use your palm to press and
rotate the lower cover assembly left and right until
the tabs lock with the upper cover (Fig. K).
5. Following the instructions in "LINE REPLACEMENT" to
reload the cutting line.
When the tool is intended to use as a brush cutter, follow
the steps as Fig. L & M shown to disassemble the trimmer
head.
MAINTENANCE
WARNING:
Before inspecting, cleaning or servicing
the unit, stop the motor, wait for all moving parts to stop,
and remove the battery pack. Failure to follow these
instructions can result in serious personal injury or
property damage.
WARNING:
When servicing, use only identical
replacement parts. Use of any other parts can create a
hazard or cause product damage. To ensure safety and
reliability, all repairs, other than the items listed in these
maintenance instructions, should be performed by a
qualified service technician.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean cloths to remove dirt, dust, oil, grease, etc.
CLEAN THE UNIT
◾
Clear any grass that may have wrapped itself around
the motor shaft or trimmer head.
◾
Use a small brush or a small vacuum cleaner to clean
the air vents on the rear housing.
◾
Clean the unit using a damp cloth with a mild
detergent.
◾
Do not use any strong detergents on the plastic
housing or the handle. They can be damaged by
certain aromatic oils, such as pine and lemon, and by
solvents such as kerosene. Moisture can also cause
a shock hazard. Wipe off any moisture with a soft dry
cloth.
TRANSMISSION GEARS LUBRICATION
The transmission gears in the gear case need be
lubricated periodically with gear grease. Check the gear
case grease level about every 50 hours of operation by
removing the sealing screw on the side of the case.
If no grease can be seen on the flanks of the gear, follow
the steps below to fill with gear grease up to 3/4 capacity.
Do not completely fill the transmission gears.
1. Hold the line trimmer on its side so that the sealing
screw is facing upwards .
2. Use the multi-function wrench provided to loosen and
remove the sealing screw.
3. Use a grease syringe (not included) to inject some
grease into the screw hole; do not exceed 3/4
capacity.
4. Tighten the sealing screw after injection.
