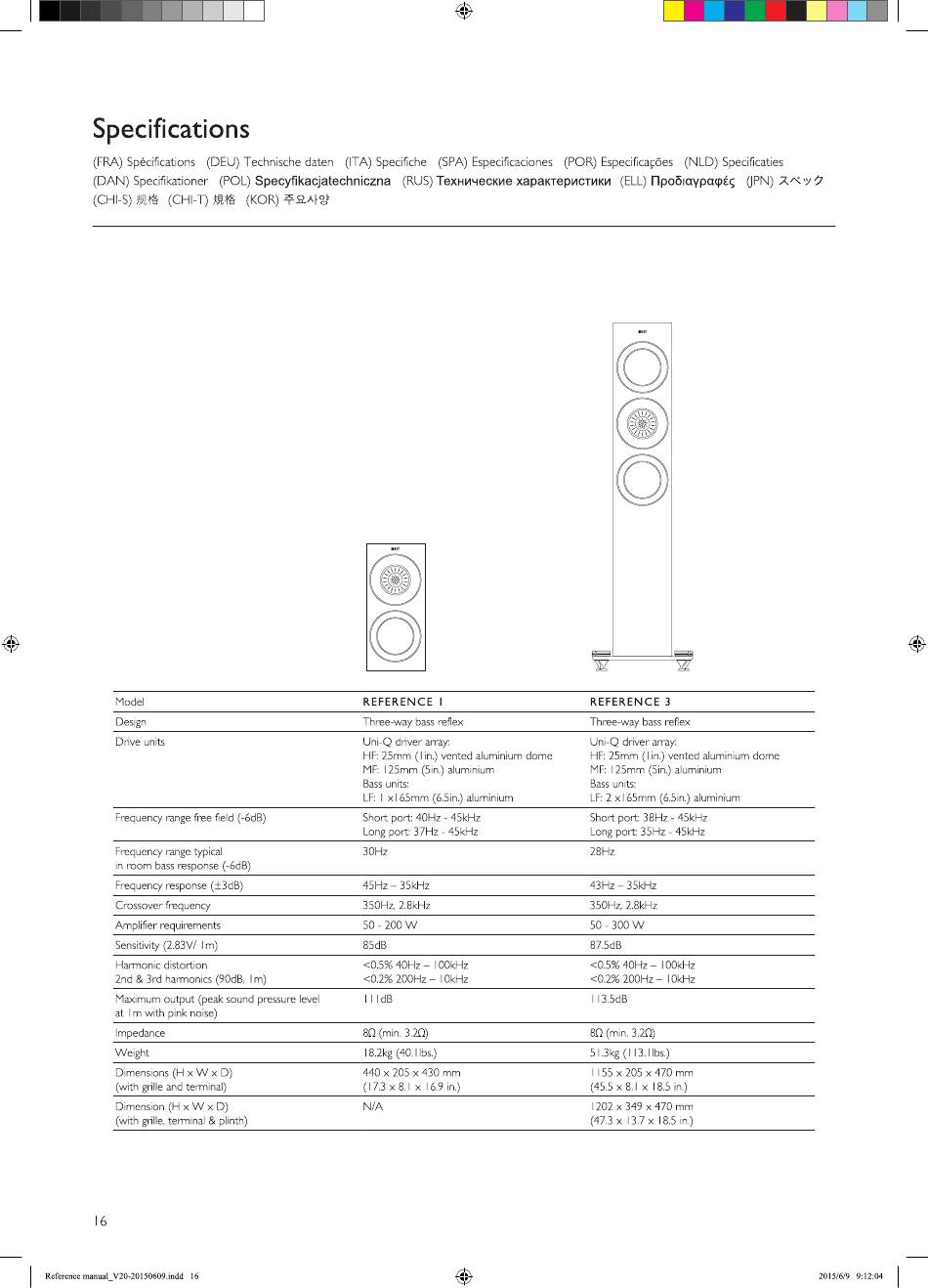

Specifications
(FRA) Spécifications (DEU) Technische daten (ITA) Specifiche (SPA) Especificaciones (POR) Especificaqöes (NLD) Specificaties
(DAN) Specfkationer
(POL) Specyfikacjatechniczna
(CHI-S)
(CHI-T)
(KOR)
Model
Design
Drive
units
Frequencyrangefree field ( 6dB)
Frequency range typical
in room bass response (-6dB)
Frequencyresponse(±3dB)
Crossover frequency
Amplifier requrements
Sensitivity(2.83V/ 1m)
Harmonic
distortion
2nd & 3rd harnnormcs(90dB, m)
Maximum output (peak sound pressurelevel
at 1m wth pinl< noise)
Impedance
Weight
Dimensions (H x VV x D)
(with grille and terminal)
Dimension (H x W x D)
(with grille, terminal & plinth)
16
(RUS)
REFERENCE
I
Three-way bass reflex
Uni-Q driver array:
HF: 25mm (l in.) vented aluminium dome
MF: 125mm (5in.) aluminium
Bass units:
LF: I xl 65mm (6.5in.) alumnium
Short port: 40Hz - 45kHz
Long port: 37Hz - 45kHz
30Hz
45Hz
— 35kHz
350Hz, 2.81<Hz
50 - 200 w
85dB
40Hz
-
OOkHz
<0.20/0 200Hz
II ldB
80 (min. 3.20)
1 8.2kg (40. Ilbs.)
440
x 205 x 430 mm
(17.3 x 8.1 x 16.9 in.)
(ELL) npoölavpaqég
(JPN) Ä'Xy5
REFERENCE
3
Three-way bass reflex
Uni-Q dryer array:
HF: 25mm (l in.) vented aluminium dome
MF: 125mm (5in.) alumnium
Bass units:
LF: 2 xl 65mm (6.5in.) aluminium
Short port: 38Hz - 45kHz
Long port: 35Hz - 45kHz
28Hz
43Hz
— 35kHz
350Hz, 2.81<Hz
50
300 w
87.5dB
40Hz-
IOOkHz
<0.20/0 200Hz-
IOI<Hz
1 13.5dB
80 (min. 3.20)
51.3kg (1 13.1bs.)
1 155 x 205 x 470 mm
(45.5 x
x 18.5 in.)
1202 x 349 x 470 mm
(47.3 X 13.7 X 18.5 In.)
