CHIEF iCSPSA2 Installationsanleitung Seite 11

Installation Instructions
1
1
x3
2
1/8" (3.2mm)
(B)
3
1a
x3
(G) x3

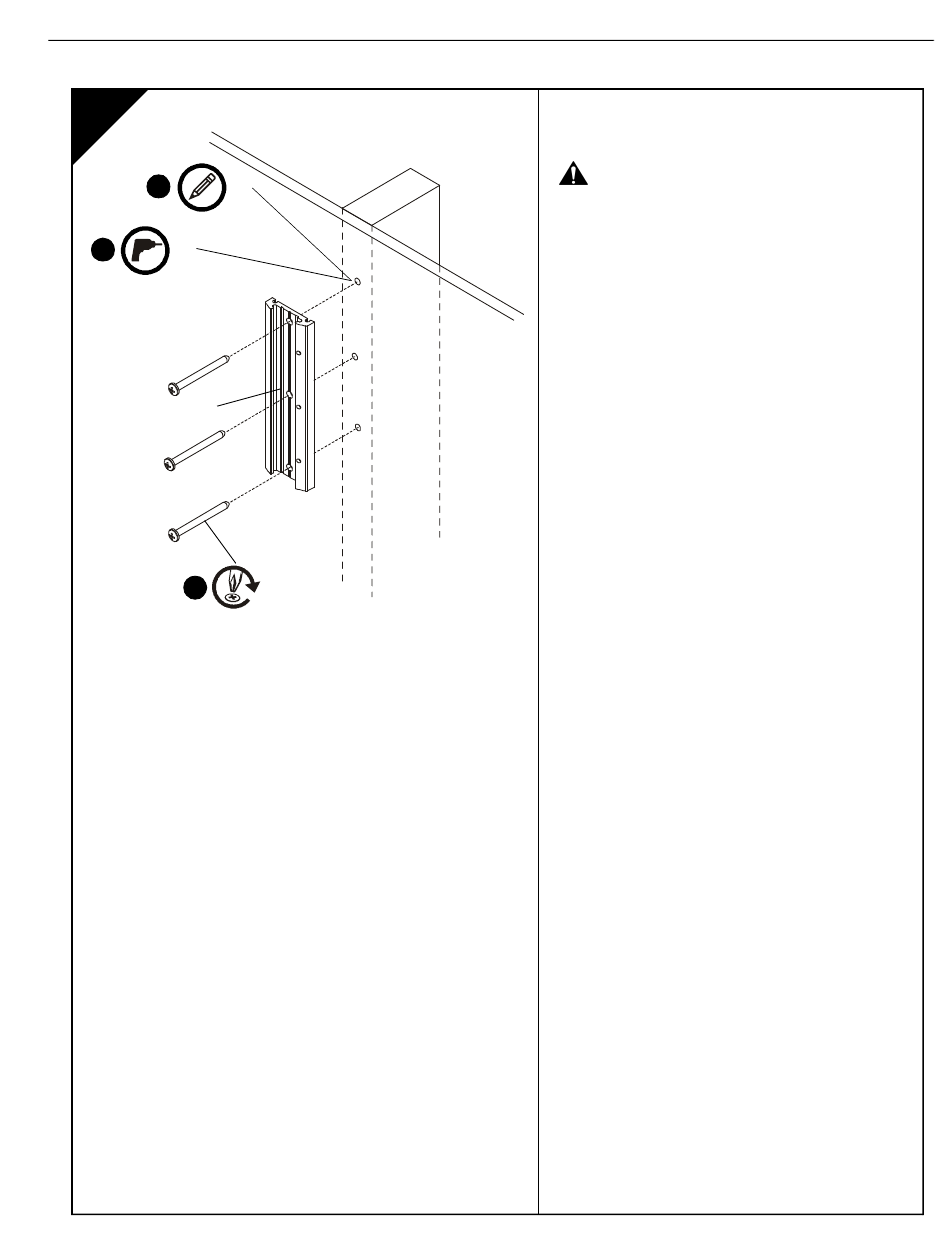

INSTALL WALL PLATE TO WALL
Wood Stud Installation
WARNING:
Failure to provide adequate structural
strength for this component can result in serious
personal injury or damage to equipment! It is the
installer's responsibility to make sure the structure to
which this component is attached can support five
times the combined weight of all equipment.
Reinforce the structure as required before installing
the component.
1. Level wall plate (B) and mark locations of pilot holes.
2. Drill 1/8" (3.2mm) diameter pilot holes into
wood stud.
3. Install screws (G) through wall plate (B) into
wood stud.
iCSPSA2
11
