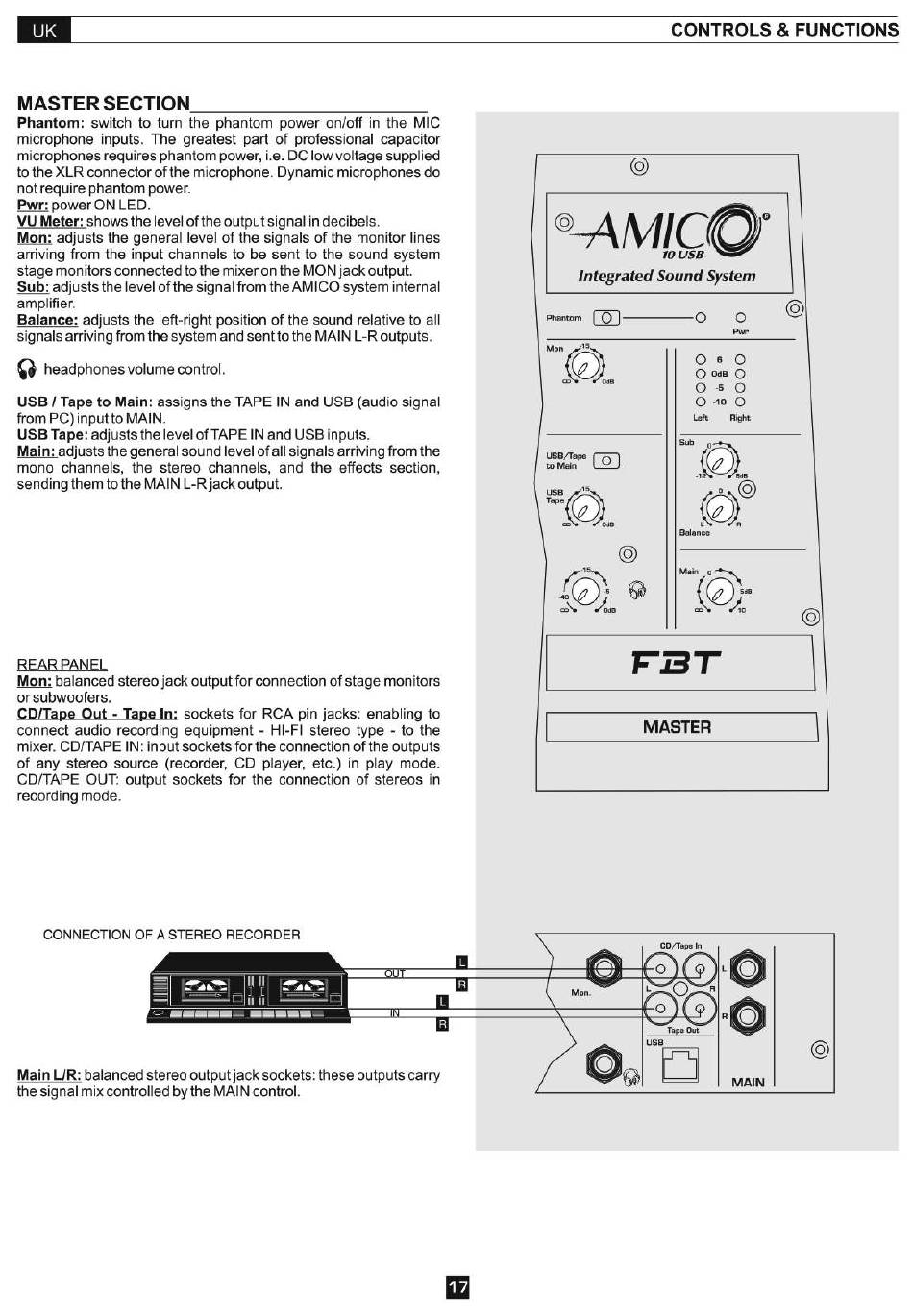

MASTER
SECTION
Phantom:
switch to turn the phantom power on/off in the MIC
microphone
inputs. The greatest part of professional
microphones requires phantom power, i.e. DC low voltage supplied
to the XLR connector of the microphone. Dynamic microphones do
not require phantom power.
pwr; power ON LED.
VU Meter: shows the level of the output signal in decibels.
Mon: adjusts the general level of the signals of the monitor lines
arriving from the input channels to be sent to the sound system
stage monitors connected to the mixer on the MON jack output.
Sub: adjusts the level of the signal from the AMICO system internal
amplifier.
Balance: adjusts the left-right position of the sound relative to all
signals arriving from the system and sent to the MAIN L-R outputs.
headphones volume control.
USB 1Tape to Main: assigns the TAPE IN and USB (audio signal
from PC) input to MAIN.
USB Tape: adjusts the level ofTAPE IN and USB inputs.
Main: adjusts the general sound level of all signals arriving from the
mono
channels,
the stereo
sending them to the MAIN L-Rjack output.
REAR
PANEL
Mon: balanced stereo jack output for connection of stage monitors
or subwoofers.
CD/Tape Out - Tape In: sockets for RCA pin jacks: enabling to
connect audio recording equipment - HI-Fl stereo type - to the
mixer. CD/TAPE IN: input sockets for the connection of the outputs
of any stereo source (recorder, CD player, etc.) in play mode.
CD/TAPE OUT: output sockets for the connection of stereos in
recording mode.
CONNECTION
OF A STEREO
Main L/R: balanced stereo output jack sockets: these outputs carry
the signal mix controlled by the MAIN control.
capacitor
channels,
and the effects
RECORDER
section,
Tape
CONTROLS
10 USB
Integrated Sound System
060
O OdB O
0+0
o
.10 0
Left
Balance
MASTER
CD/Tapc tn
Mon.
usa
O
MAIN
& FUNCTIONS
o
o
