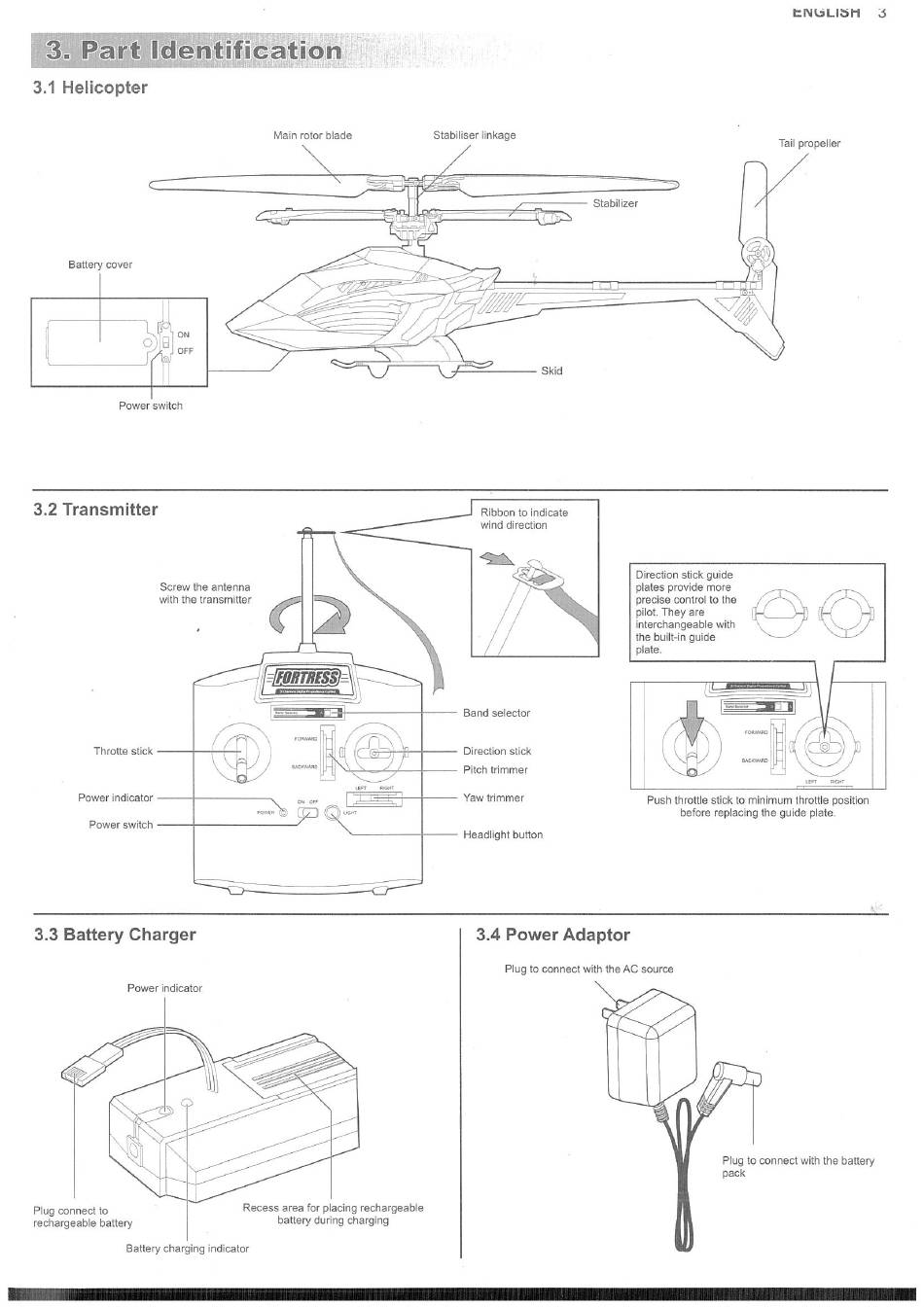

3.
Part
Identification
3.1 Helicopter
Battery cover
ON
OFF
Power
switch
3.2 Transmitter
Screw
the antenna
with the transmitter
Throtte
stick
Power
indicator
Power
switch
3.3 Battery Charger
Power
indicator
Plug connect to
rechargeable battery
Battery charging indicator
Main rotor blade
E FORTRESS
Recess area for placing rechargeable
battery during charging
Stabiliser linkage
Stabilizer
Skid
Ribbon
to indicate
wind direction
Band selector
Direction
stick
Pitch trimmer
Yaw trimmer
Headlight button
3.4 Power Adaptor
Plug to connect with the AC source
ENGLISH
Tail propeller
Direction stick guide
plates provide more
precise control to the
pilot. They are
interchangeable
with
the built-in guide
plate.
Push throttle stick to minimum throttle position
before replacing the guide plate.
Plug to connect with the battery
pack
